| Chair Style | High Back, Mid Back, Visitors |
|---|---|
| Arm Variants | No Arms, Y55, Y75, Y100, Y200, Y400, Y420, Y500, Y600, Y800 |
Managerial

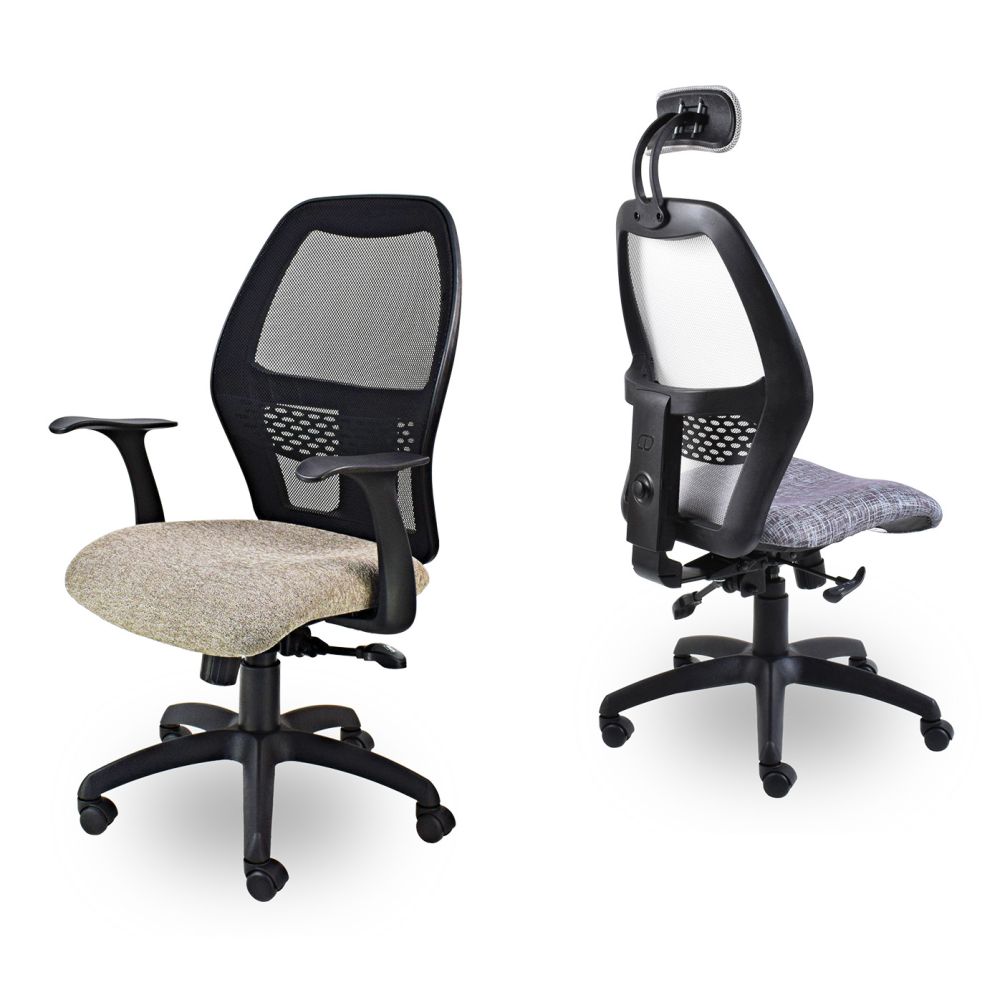

Xenon Range
The Xenon range delivers the support and ventilation you need to stay focused and productive throughout the day.
Movements
Dimensions
| XC6 | XC5 | XC2 | |
| Overall Height | 1150mm | 1000mm | 1030mm |
| Overall Width | 640mm | 640mm | 640mm |
| Overall Depth | 670mm | 610mm | 620mm |
| Total Weight | 18kg | 17kg | 16kg |
| Seat Lowest | 460mm | 460mm | 520mm |
| Seat Highest | 560mm |
Specifications

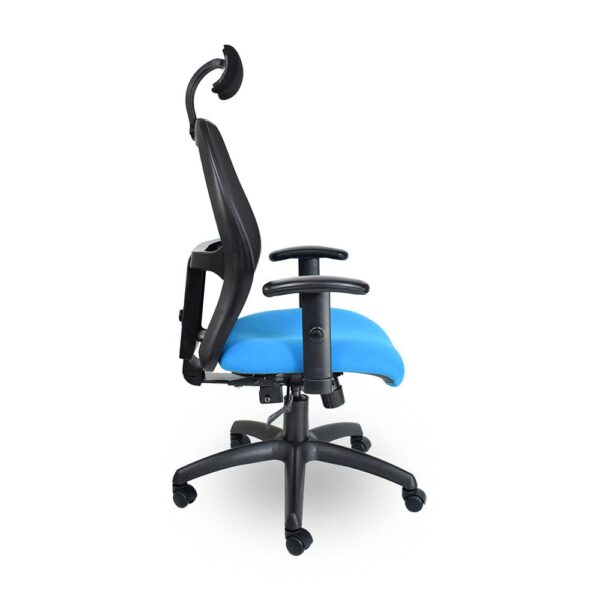

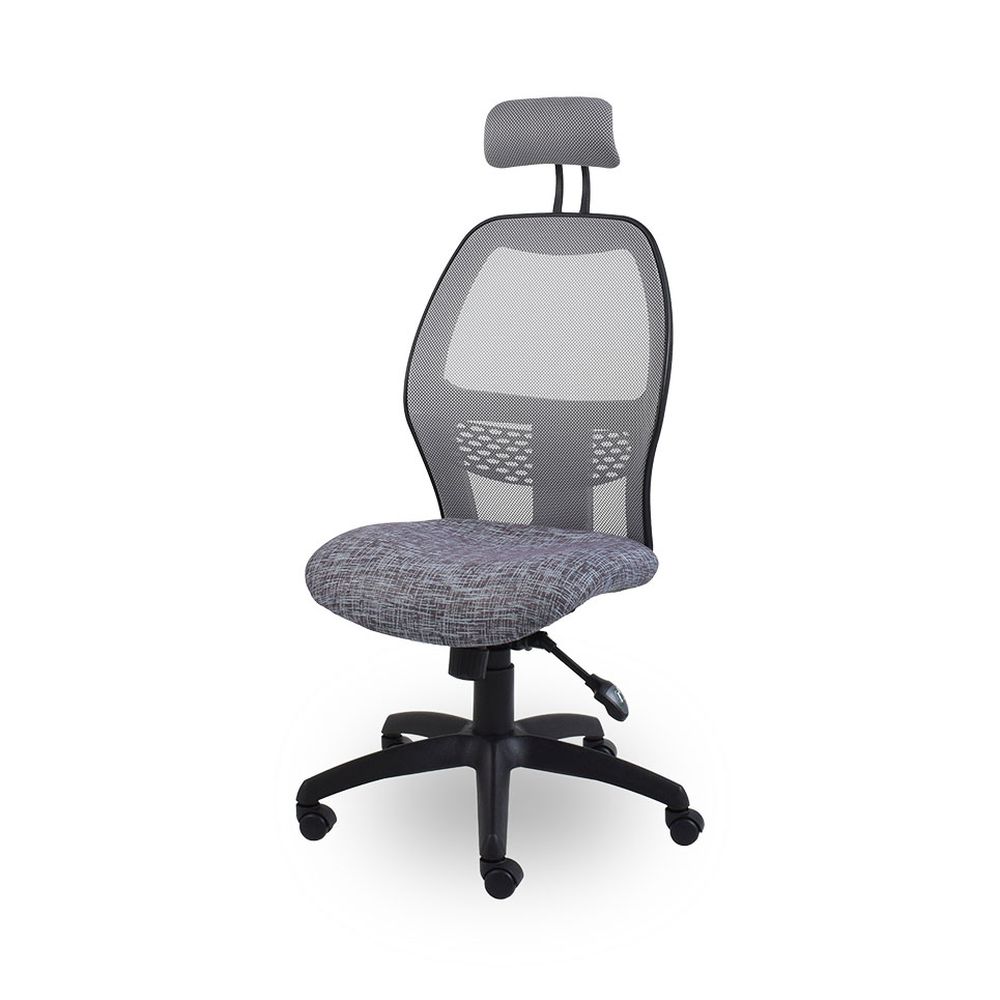

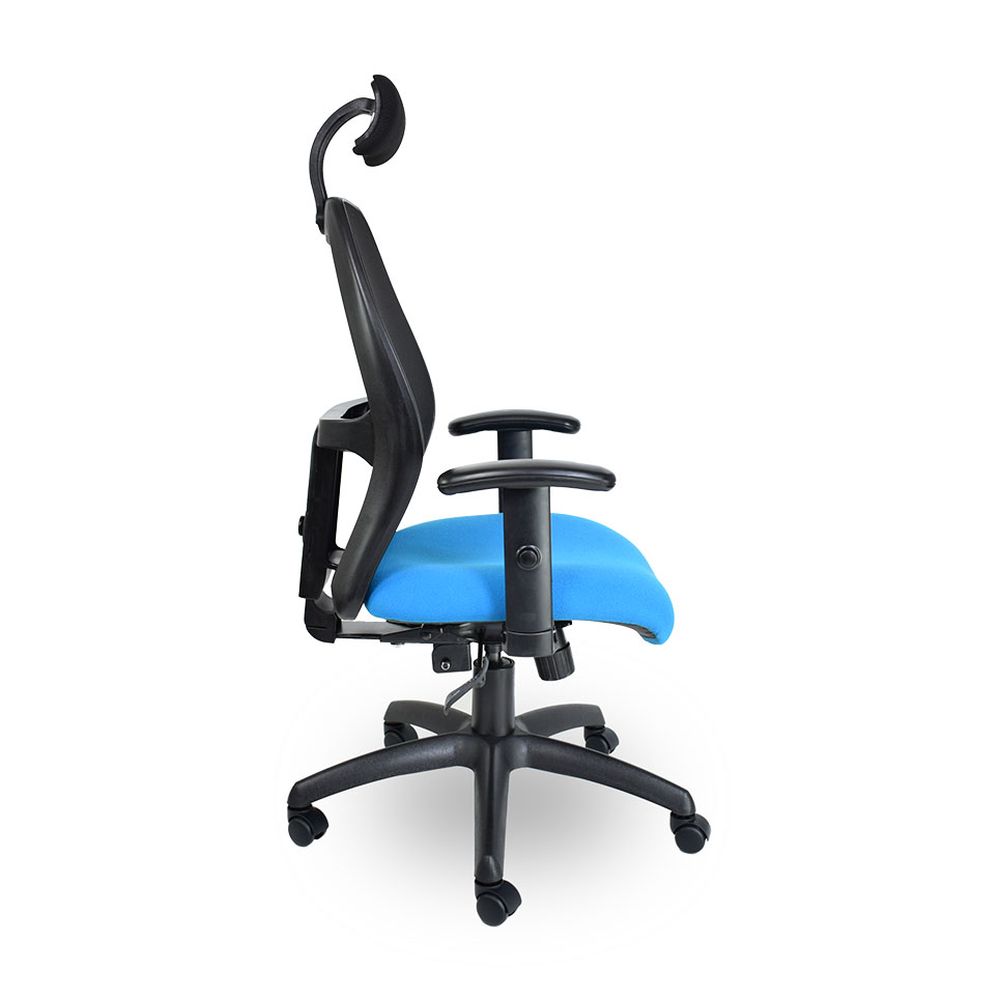

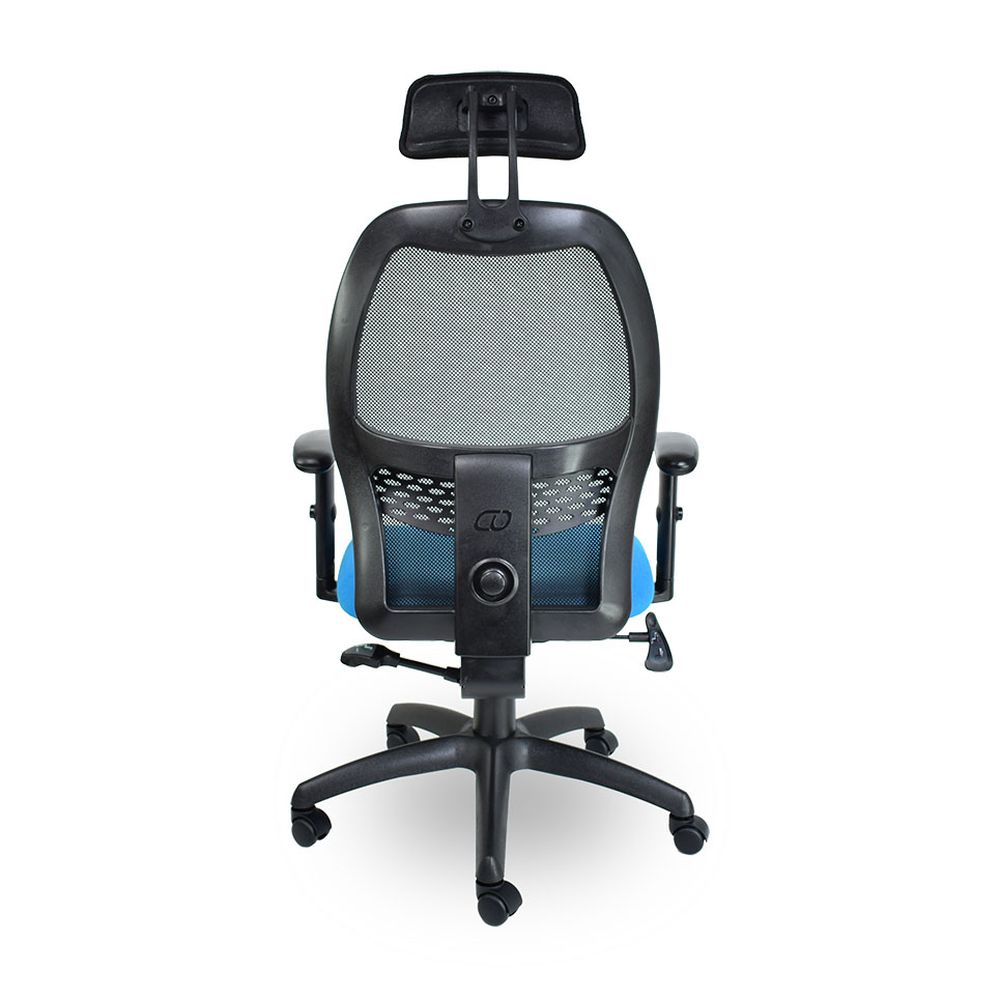

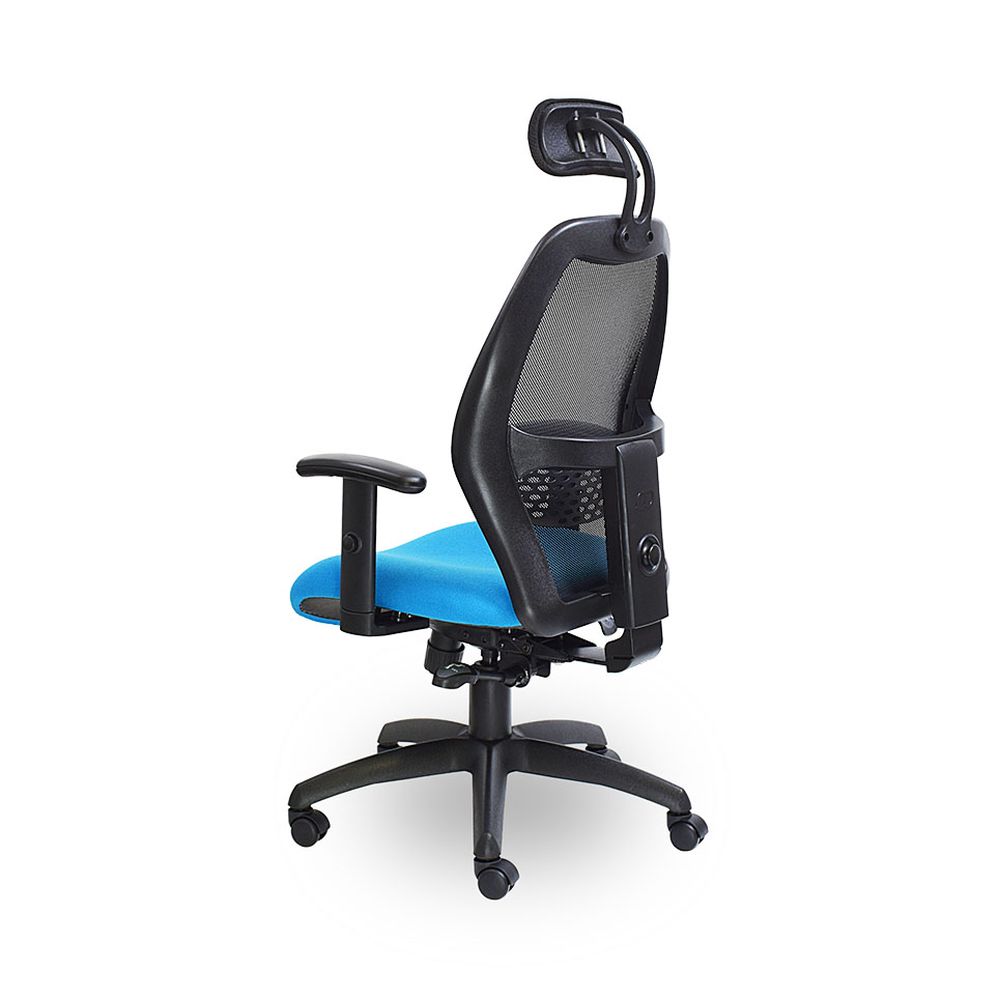

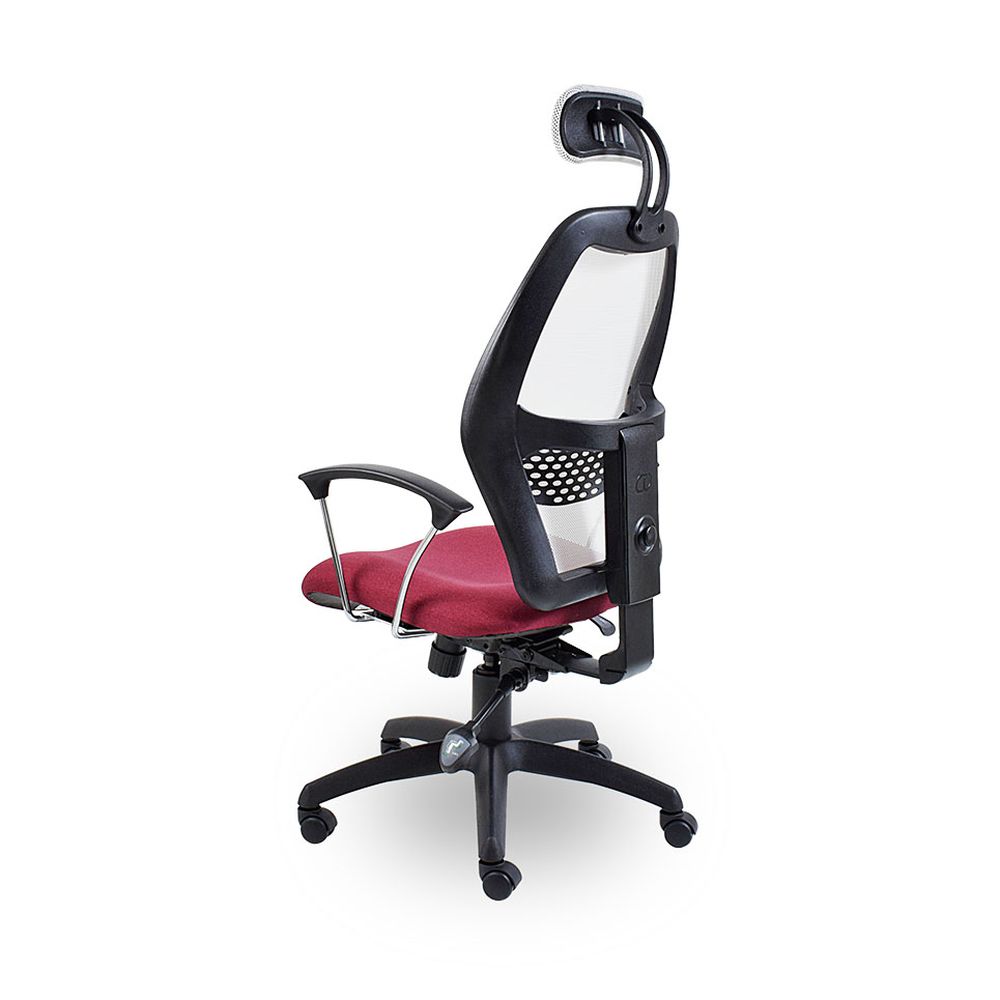

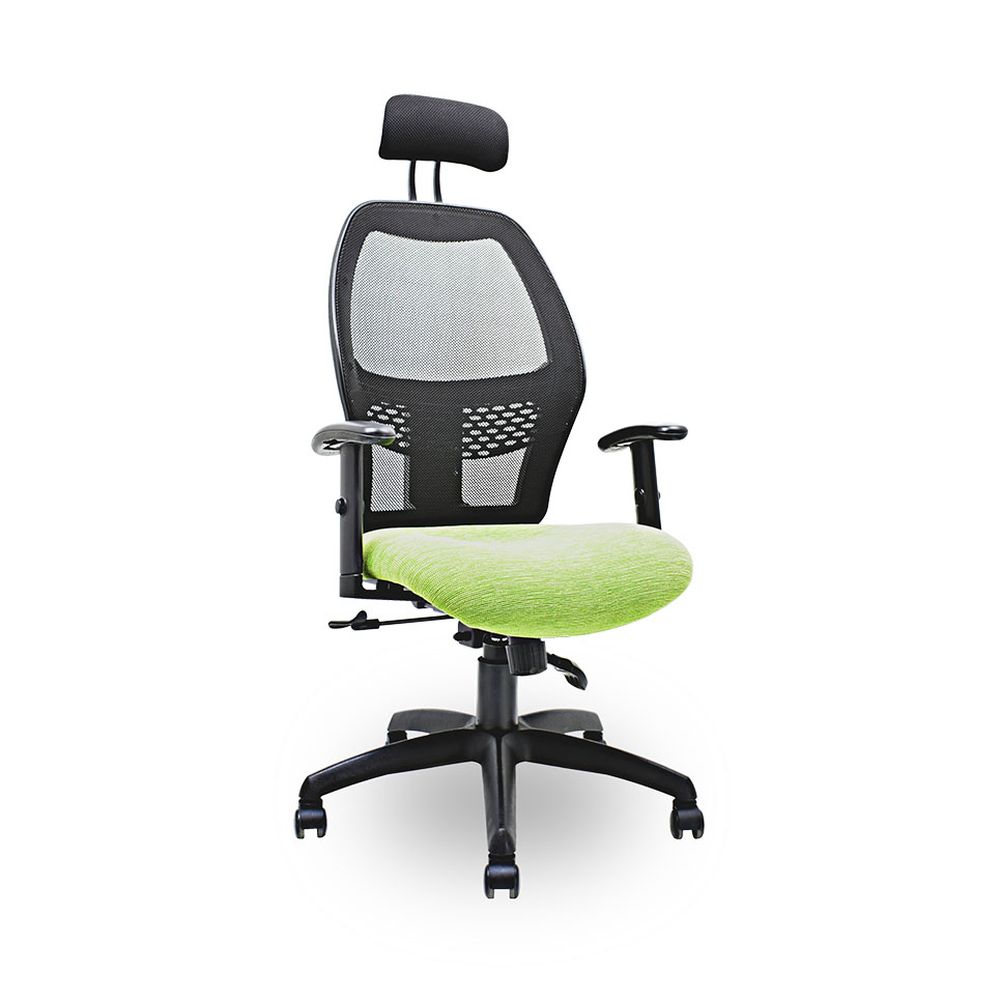

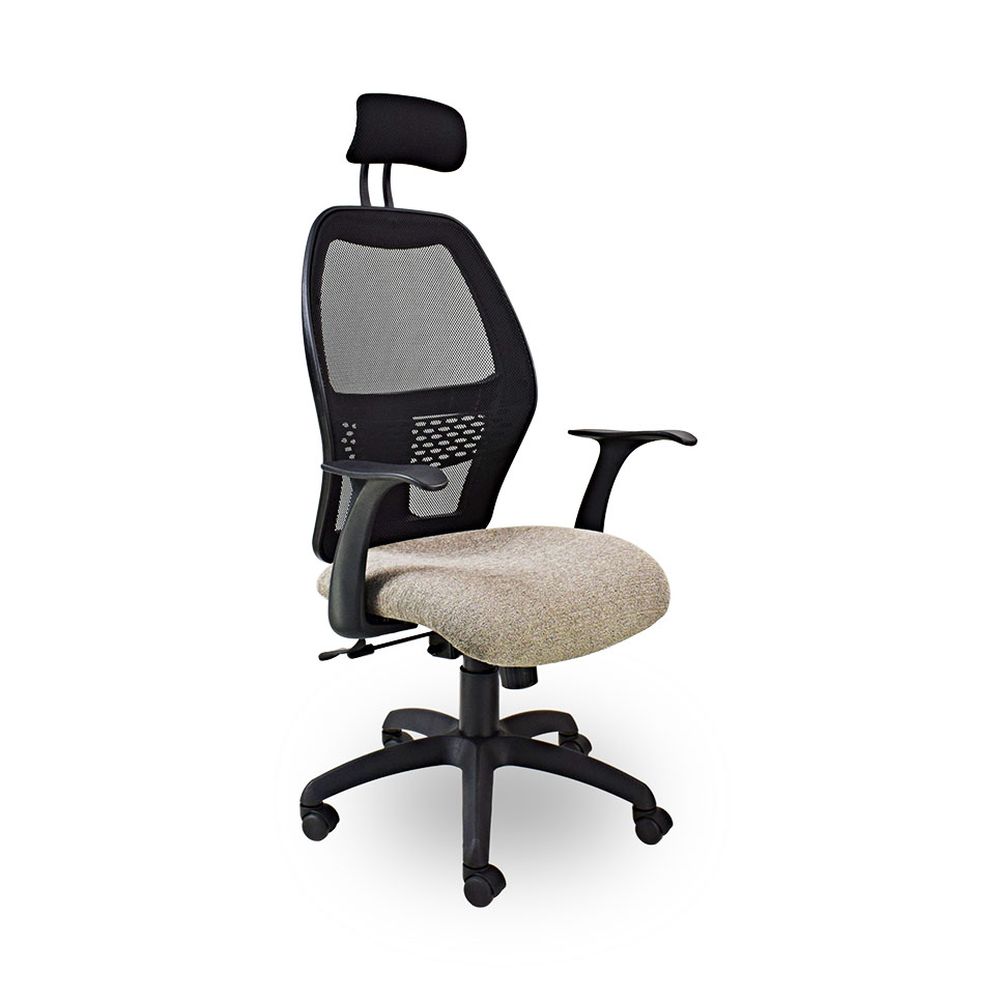

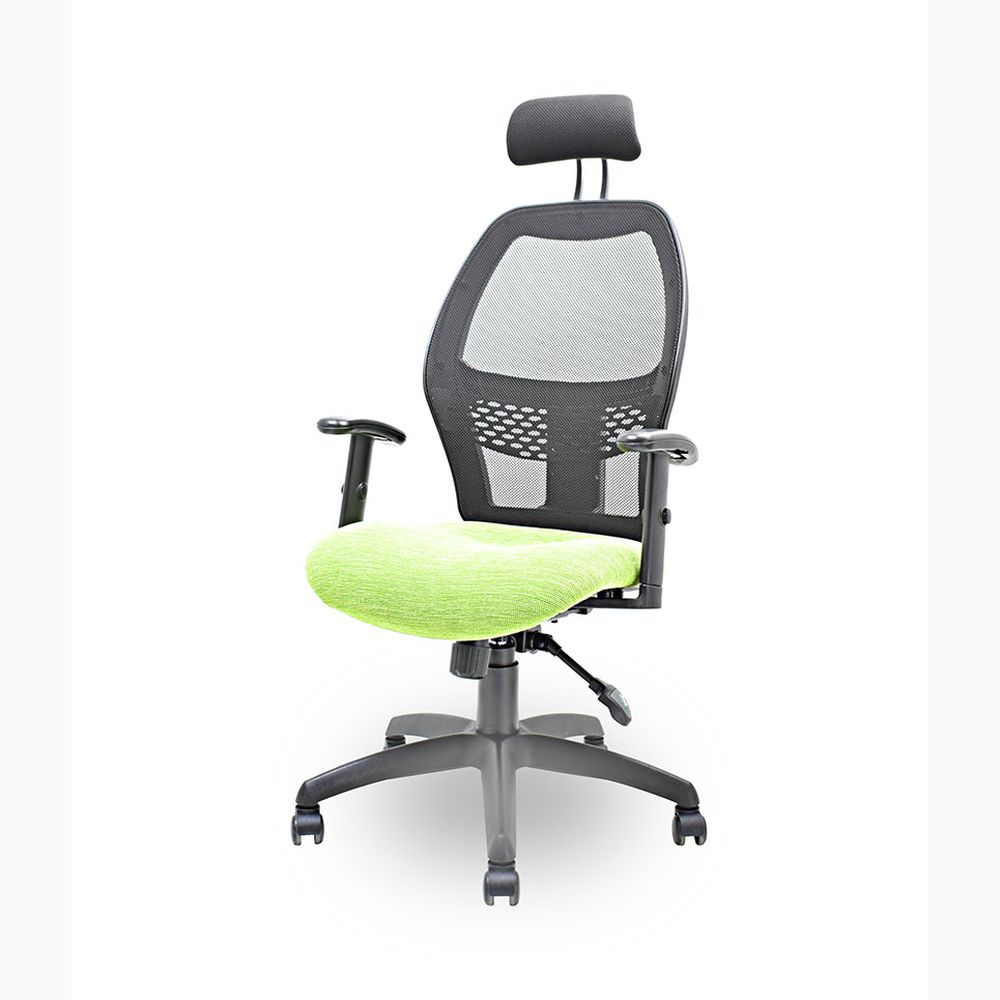

XC6 – High Back
Mechanism
Synchro lock mechanism with back tension adjustment
Right hand controls
Height adjustment lever
Left hand controls
Pull lever upwards for constant back contact – free floating
Push lever downwards to lock back in any position
Gas Spindle
Executive single taper – Class 4
Base
700mm Nylon base with 50mm hooded castors
Seat
Injection moulded plastic
Laminated VC64 chip foam and VP70 high density foam
Back
Locally manufactured nylon frame with netted insert
Height adjustable, 4 positions – adjusts lumbar support
Height adjustable head rest

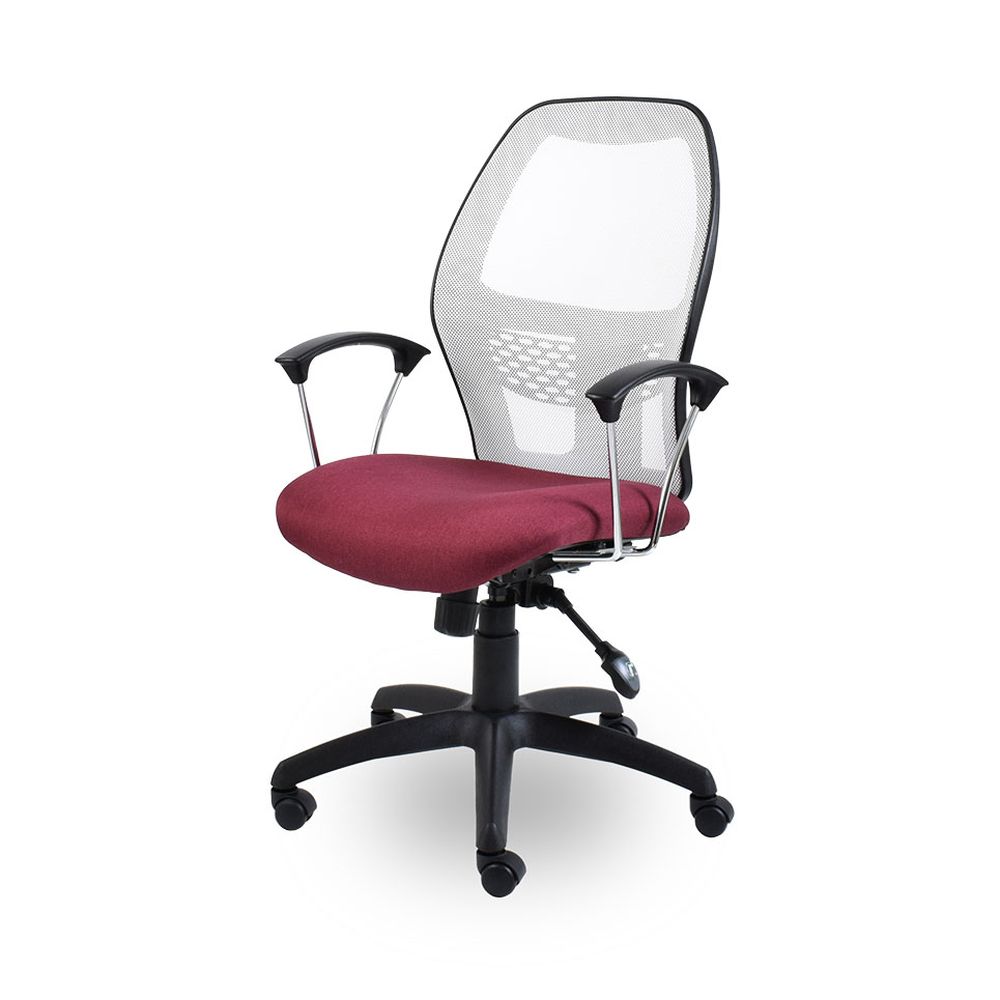

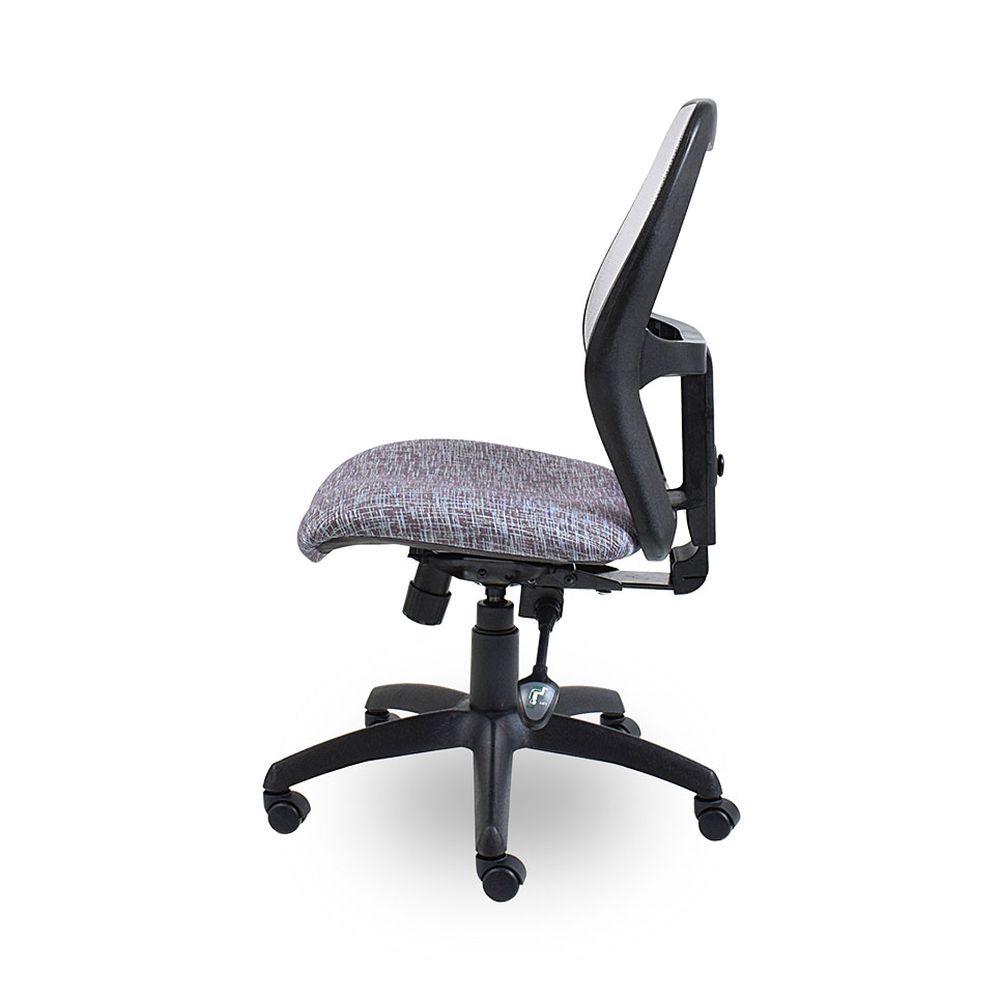

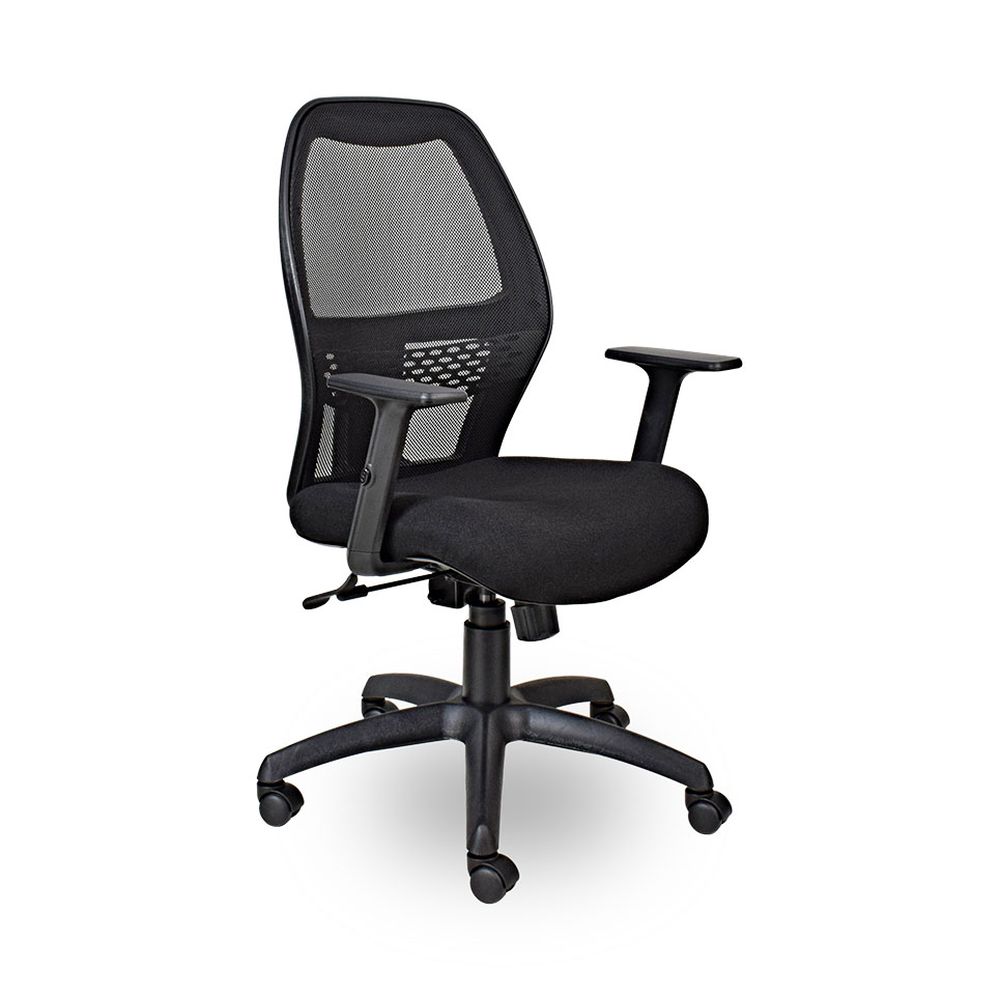

XC5 – Mid Back
Use the same mechanism, spindle, base, seat & back rest

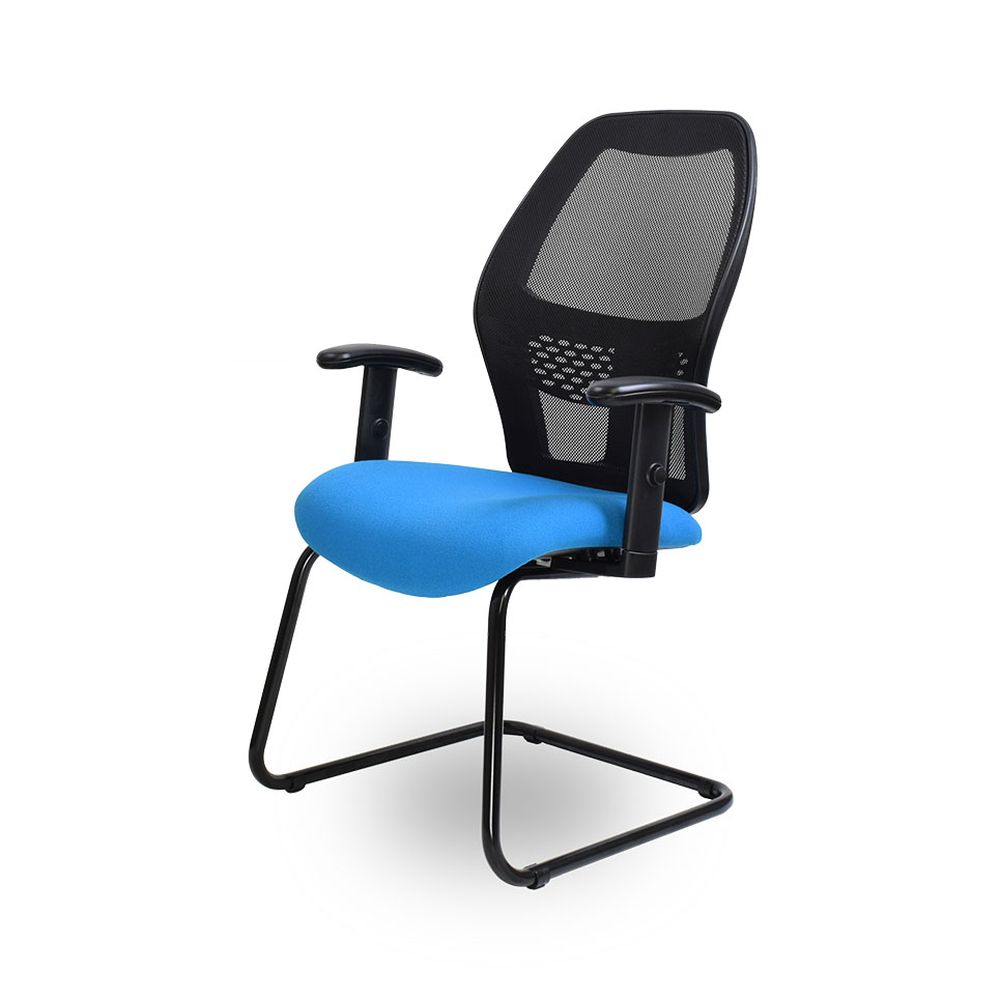

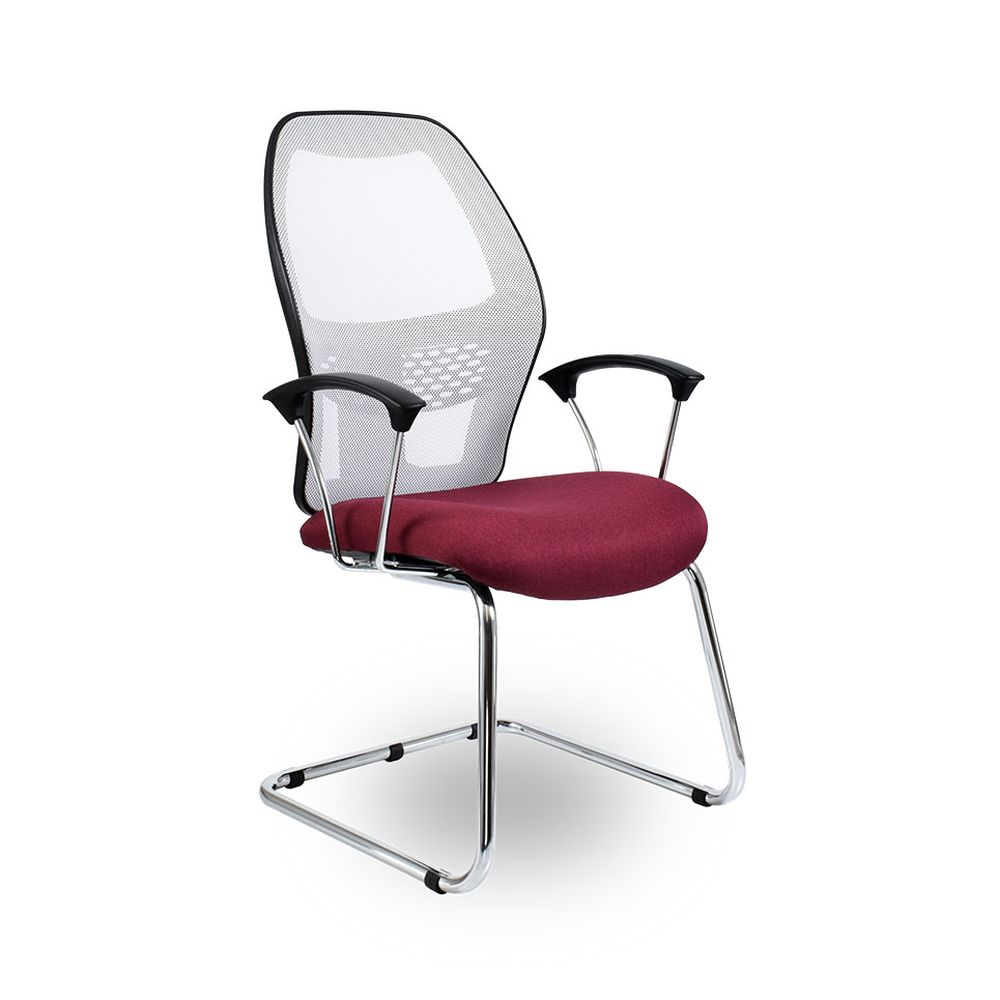

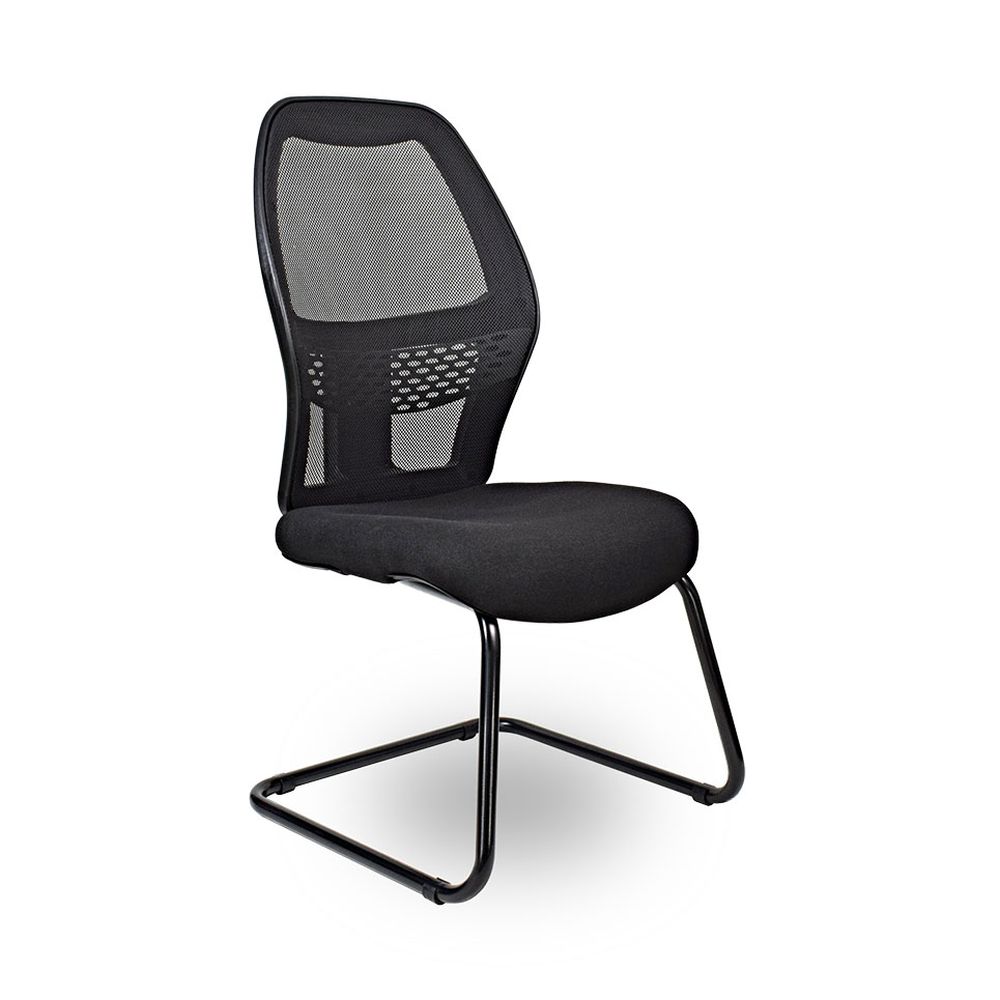

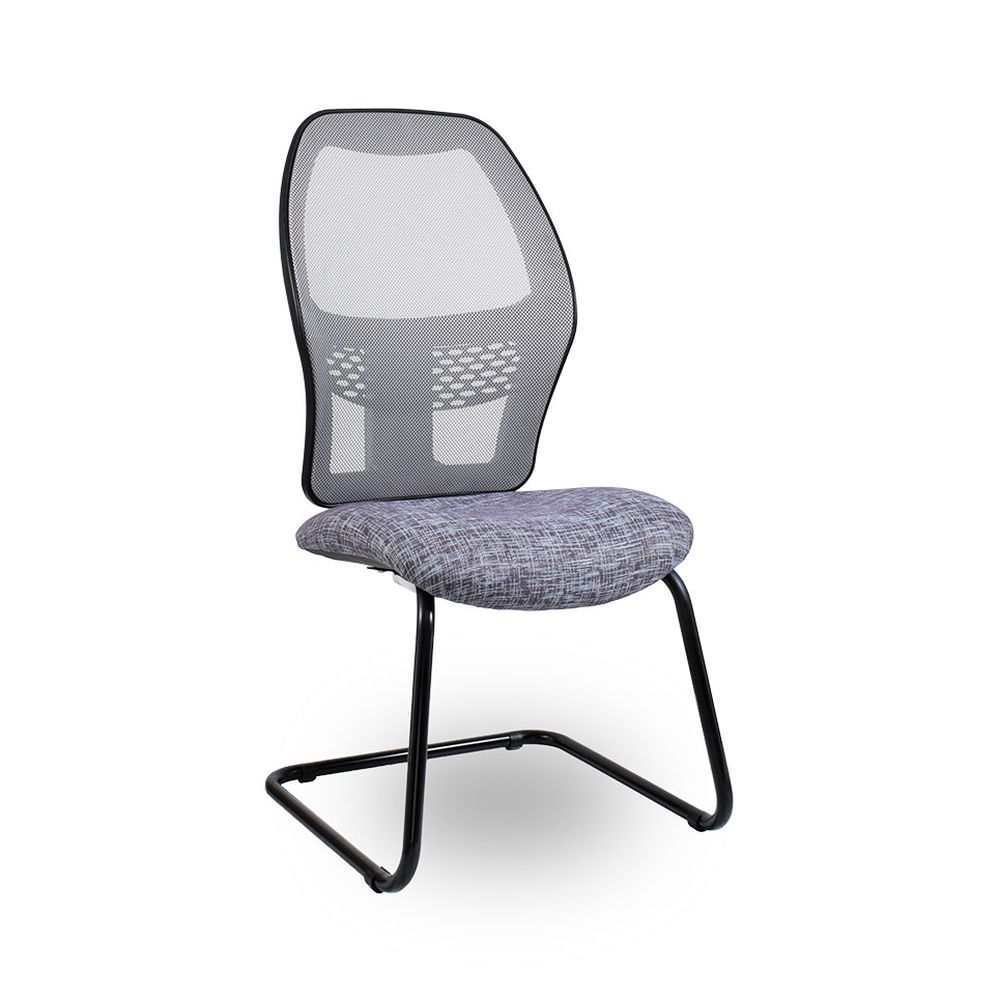

XC2 – Visitors Chair
Use the same seat & back rest
25mm Round tubing sleigh base frame
Cold rolled steel with 2.5mm wall thickness.
Fabric Ranges
Range 1 – Range 11
