| Chair Style | High Back, Mid Back, Integral, Side Chair |
|---|---|
| Arm Variants | No Arms, Y55, Y75, Y100, Y200, Y300, Y310, Y320, Y350, Y400, Y420, Y500, Y600, Y800 |
Executive

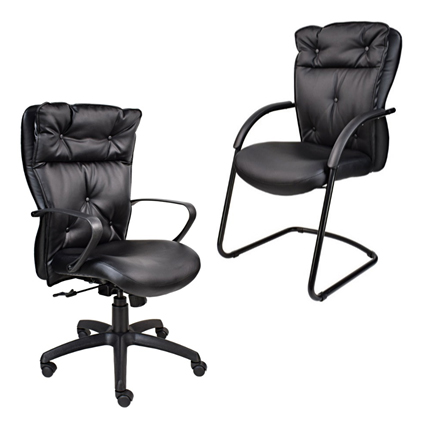

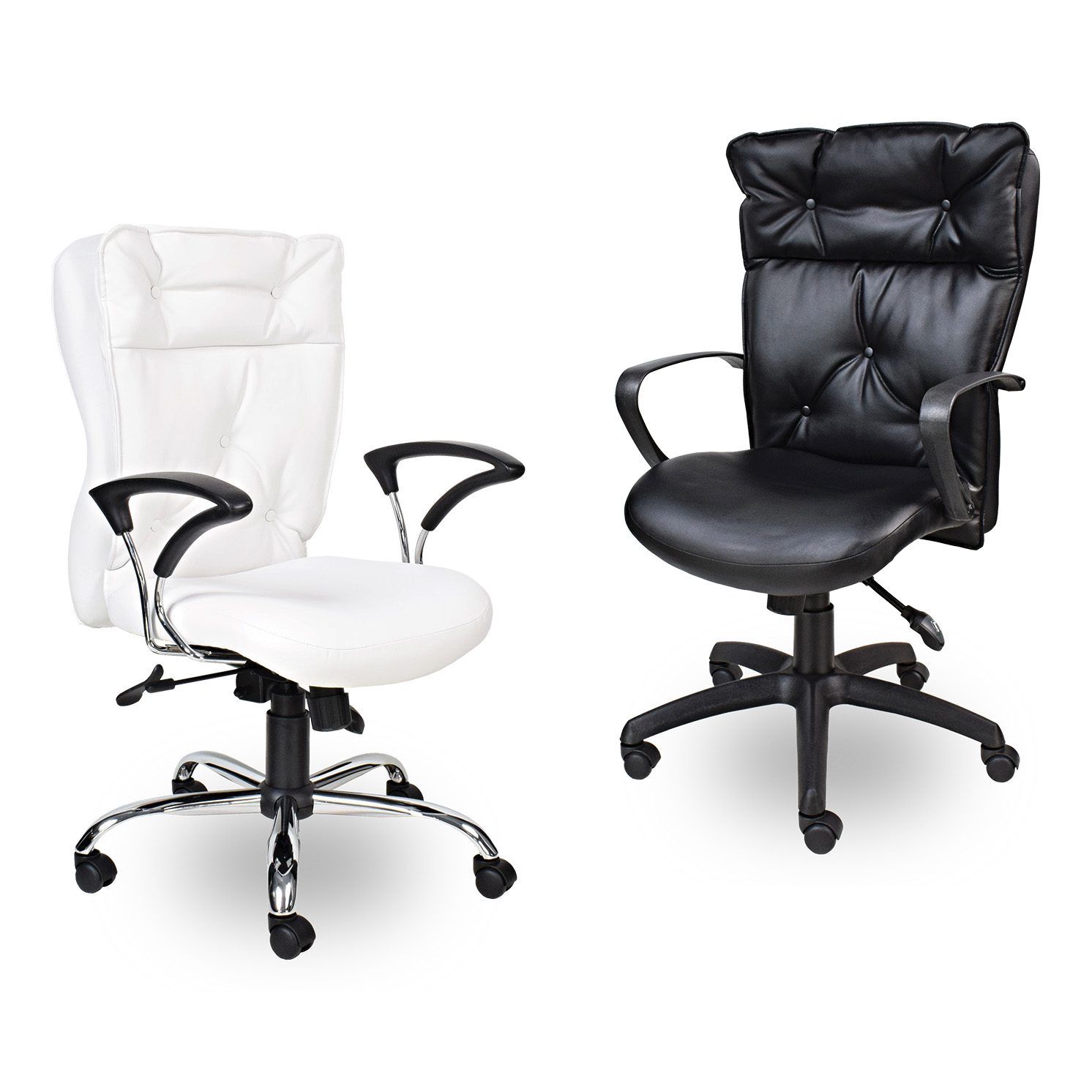

Tracey-Lee Range
The Tracey Lee Range is designed with a high contoured backrest, sculpted cushioning, and deep-set tufted detailing
Movements
Dimensions

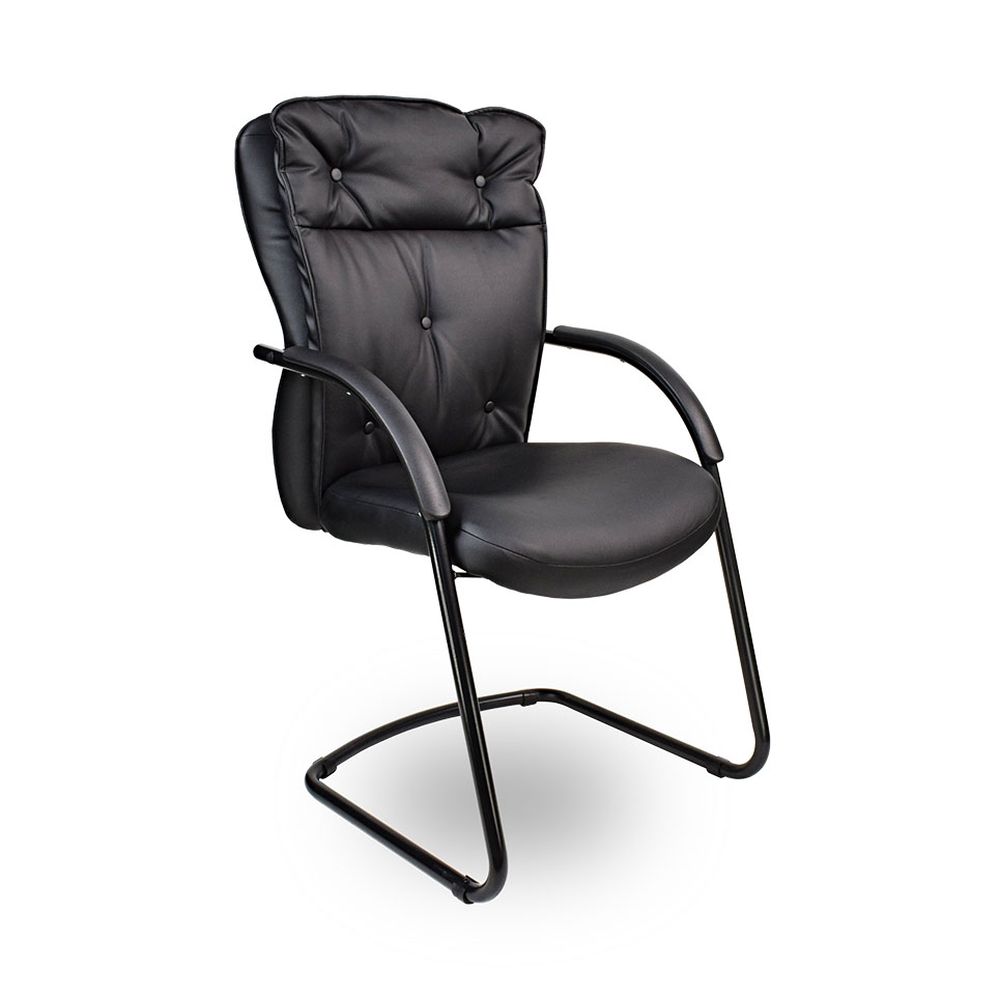

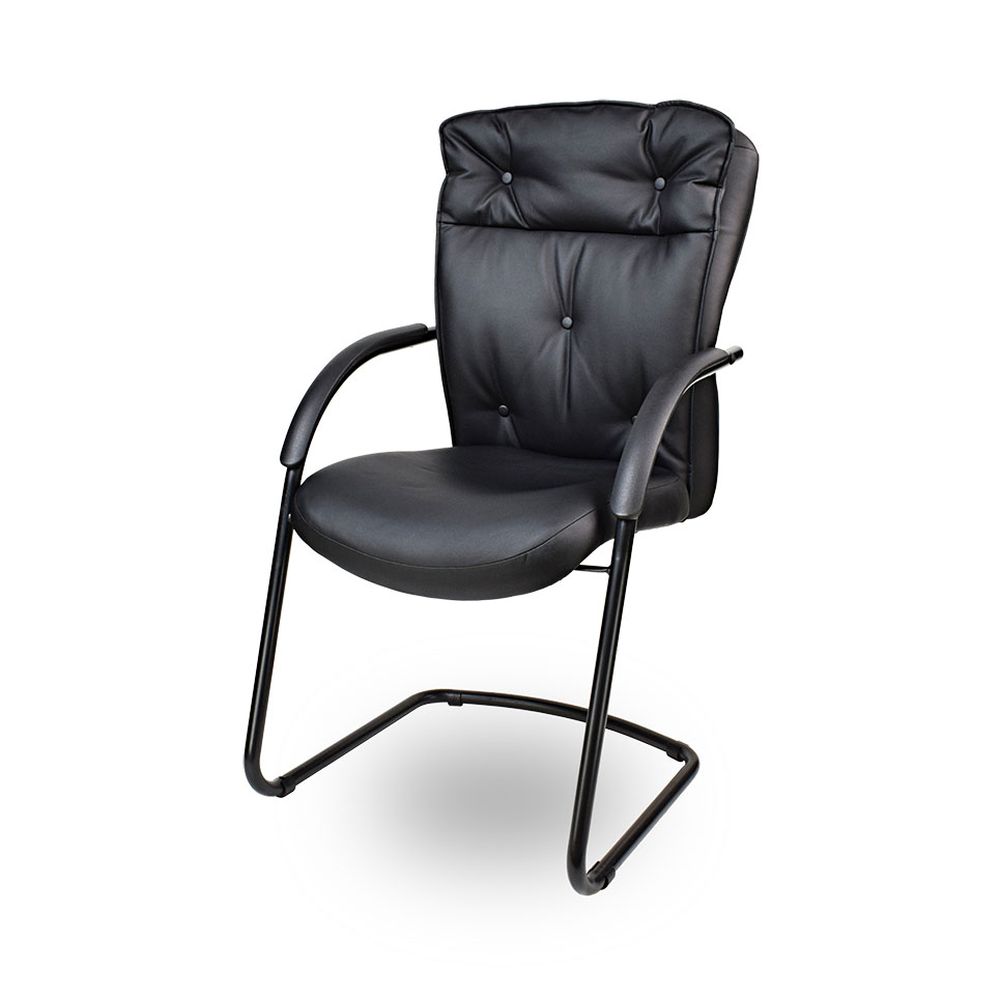

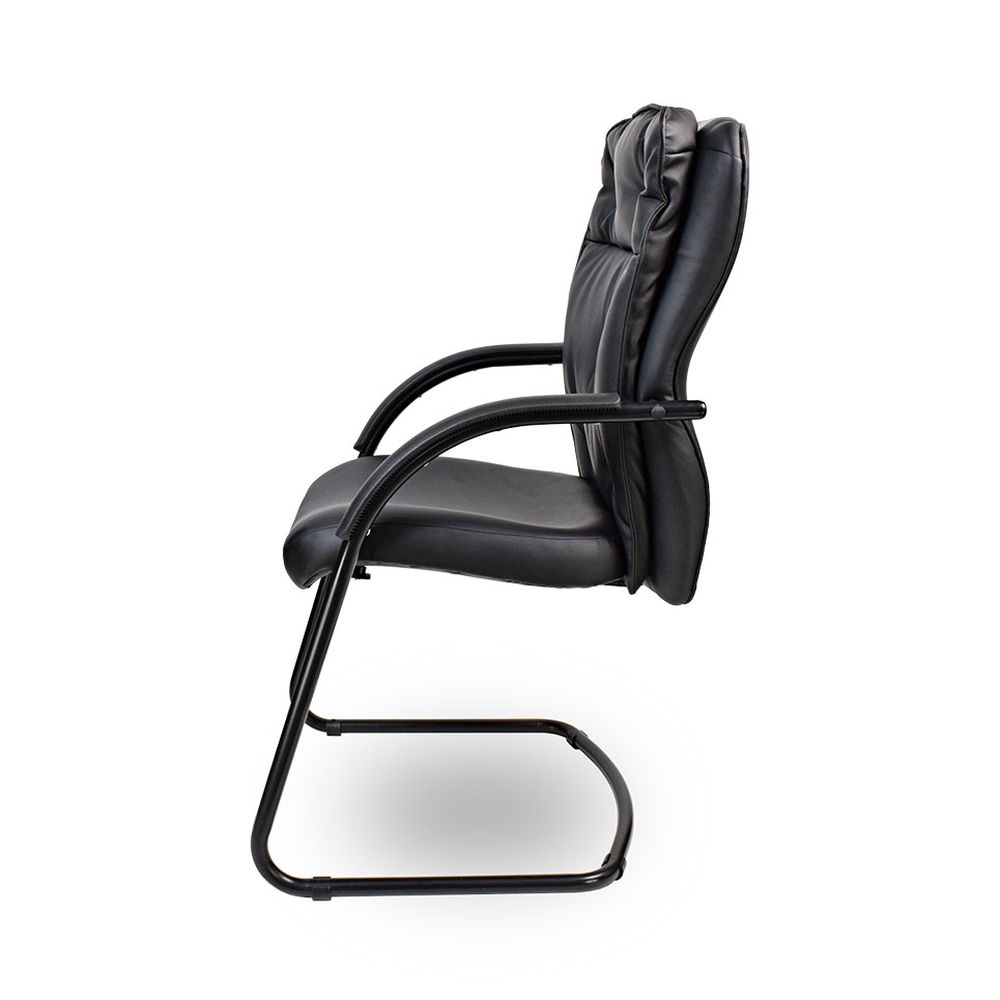

| TLC6 | TLC5 | TLC3I | TLC2 | |
| Overall Height | 1120mm | 1030mm | 1000mm | 1000mm |
| Overall Width | 600mm | 600mm | 590mm | 540mm |
| Overall Depth | 710mm | 620mm | 640mm | 620mm |
| Total Weight | 19,5kg | 18,5kg | 17kg | 16,5kg |
| Seat Lowest | 490mm | 490mm | 490mm | 500mm |
| Seat Highest | 580mm | 580mm | 490mm | 500mm |
Specifications

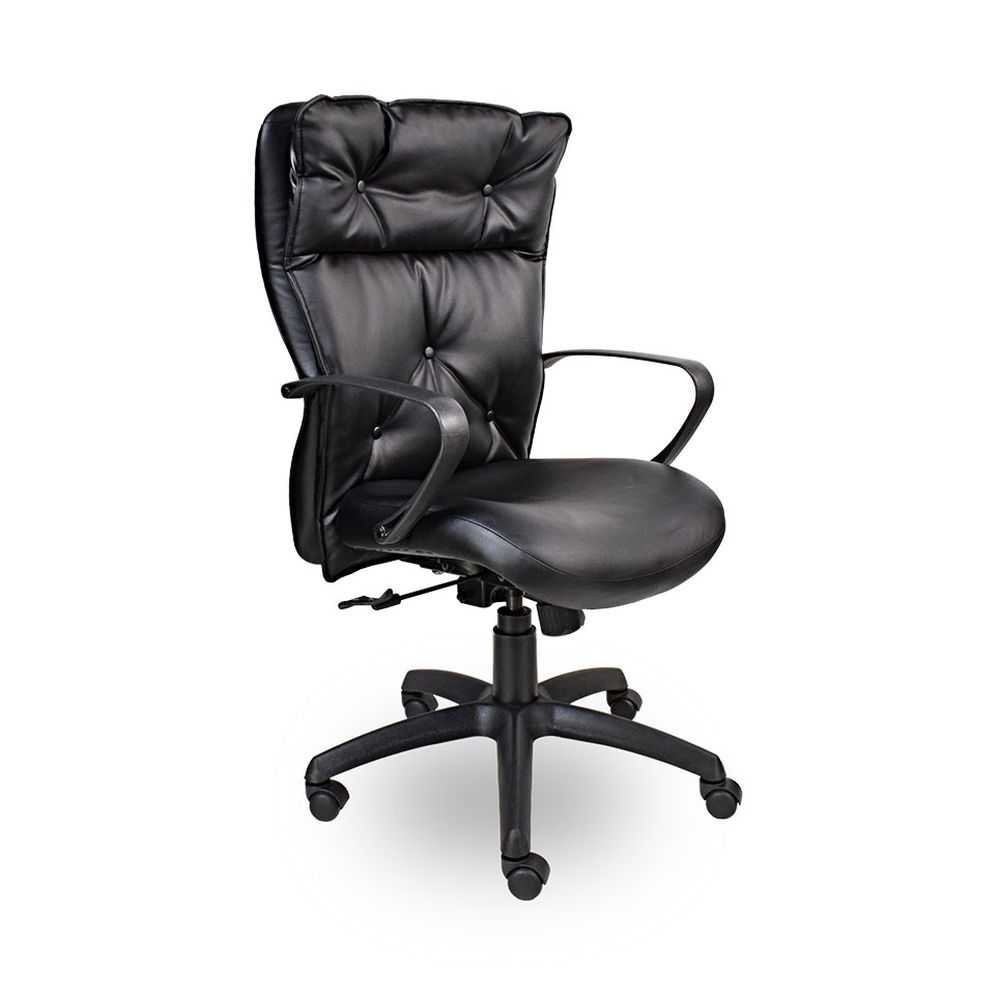

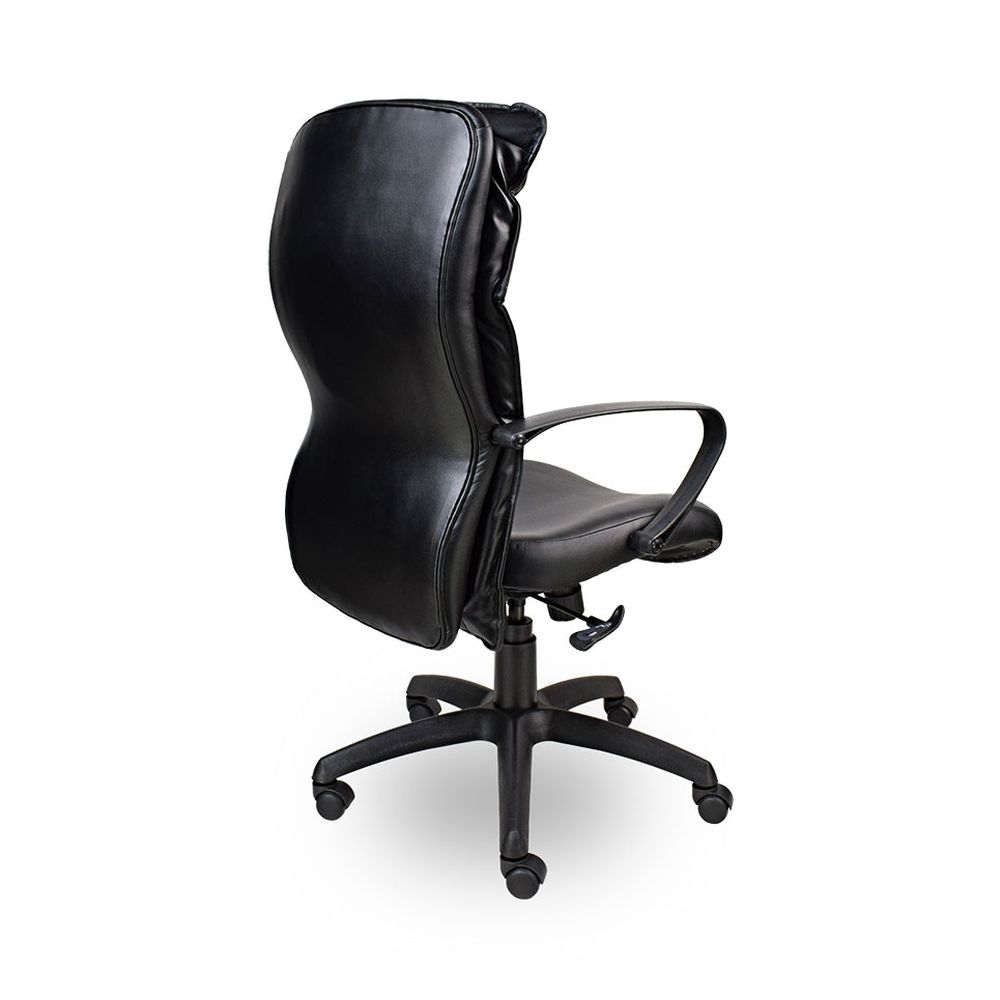

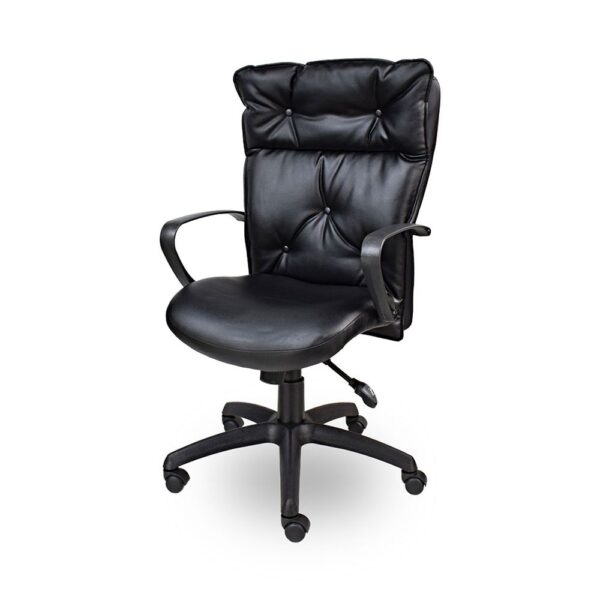

TLC6 – High Back
Mechanism
Synchro lock mechanism with back tension adjustment
Right hand controls –
Height adjustment lever
Left hand controls –
Pull lever upwards for constant back contact – free floating –
Gas Spindle
Push lever downwards to lock back in any position
Executive single taper – Class 4
Base
700mm Nylon base with 50mm hooded castors

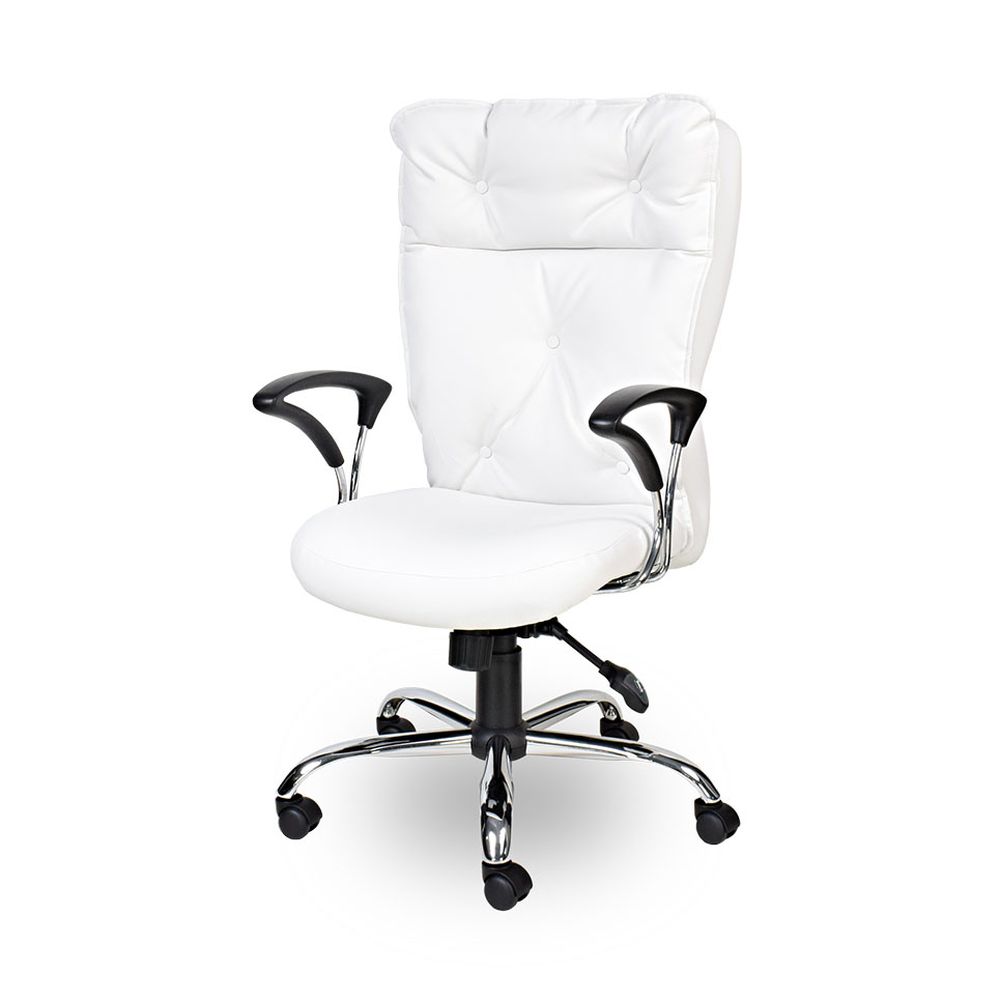

Option of Chrome base
Seat
Injection moulded plastic
Laminated VC64 chip foam and VP70 high density foam
Back
Pressed plywood
VP30 medium density foam
Upholstered pressed plywood back cover
Button upholstery – Roughed

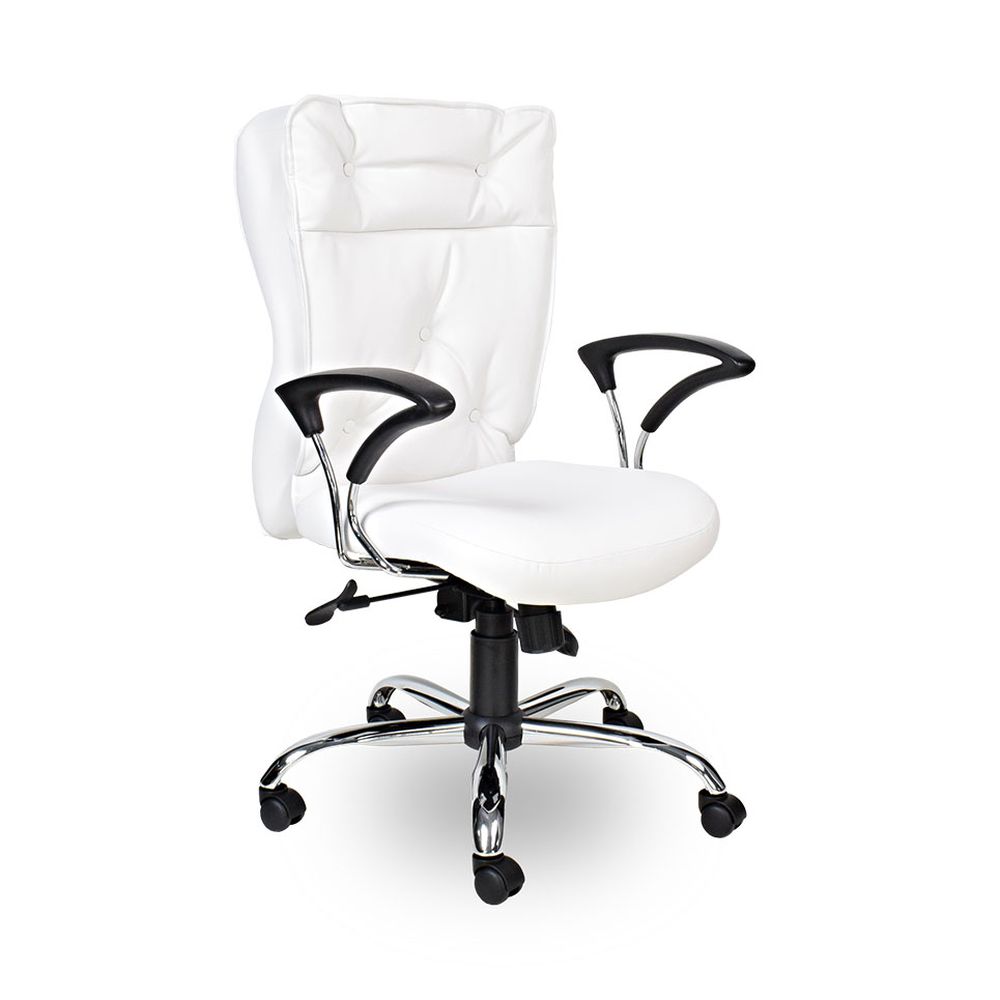

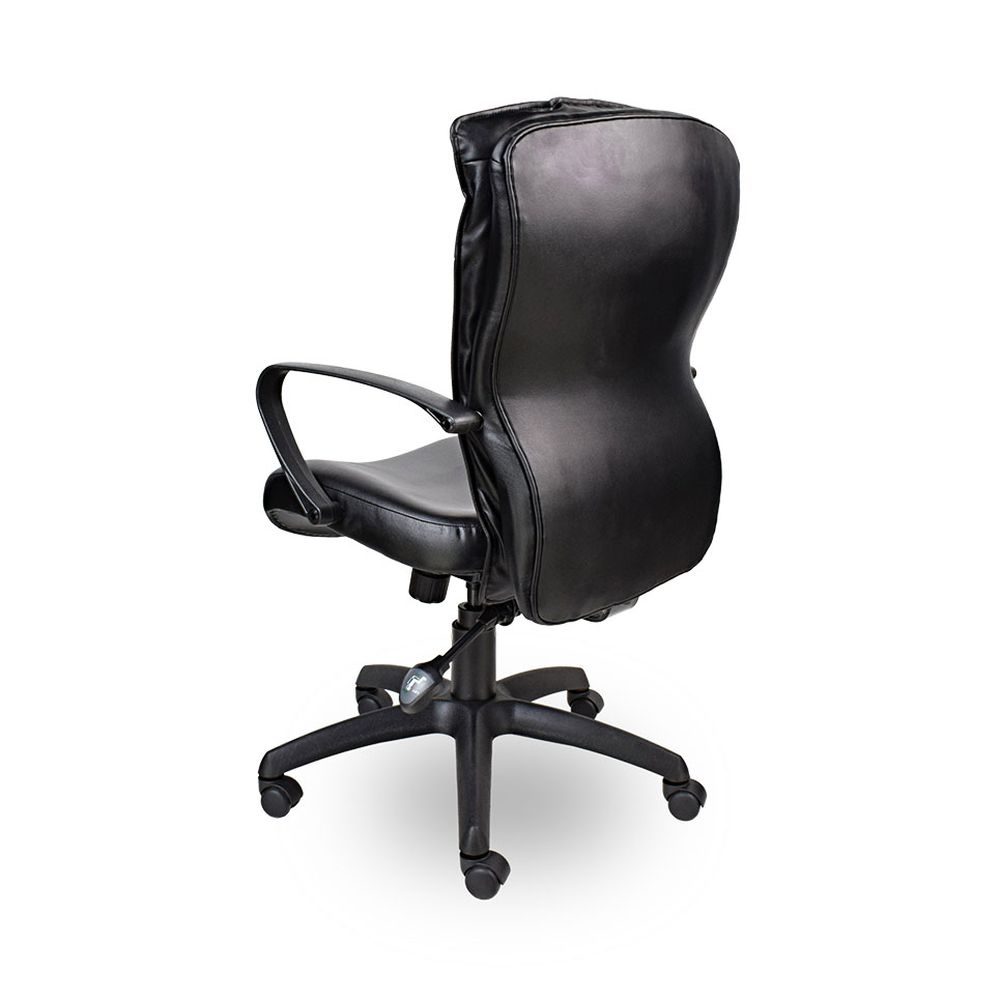

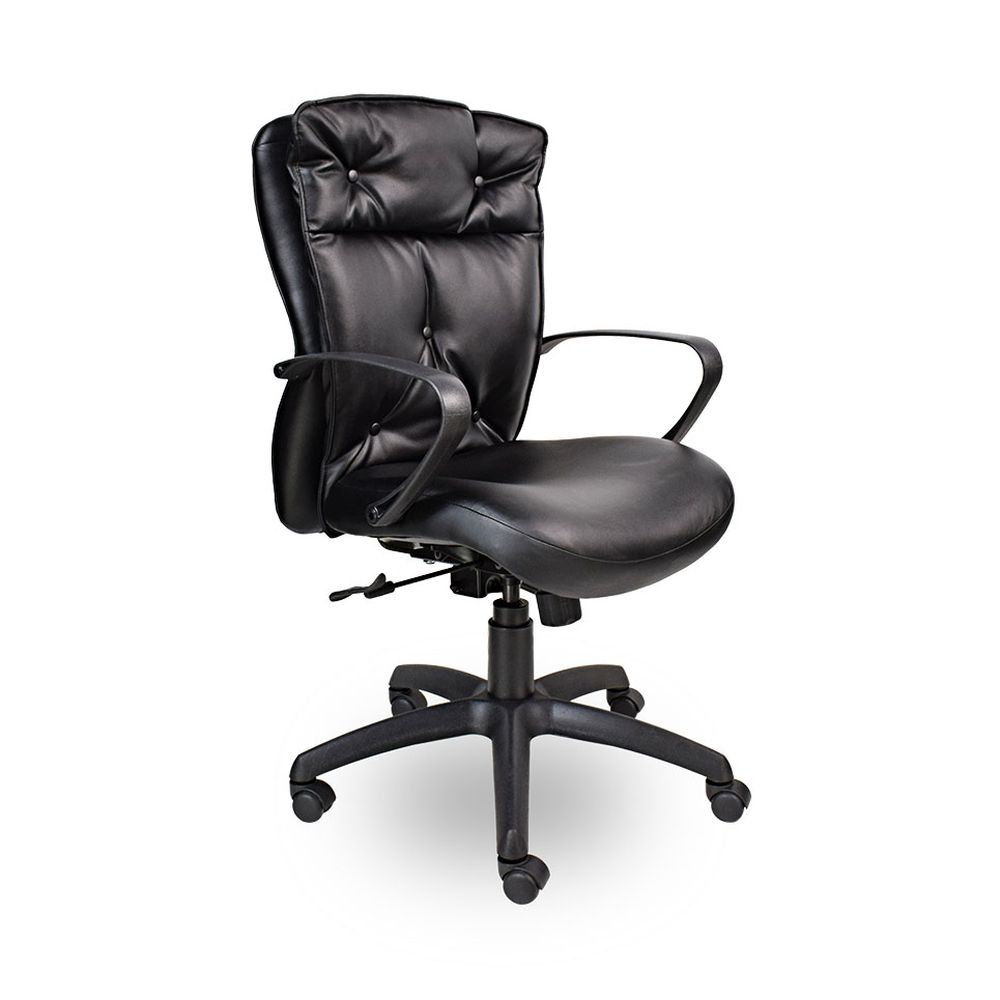

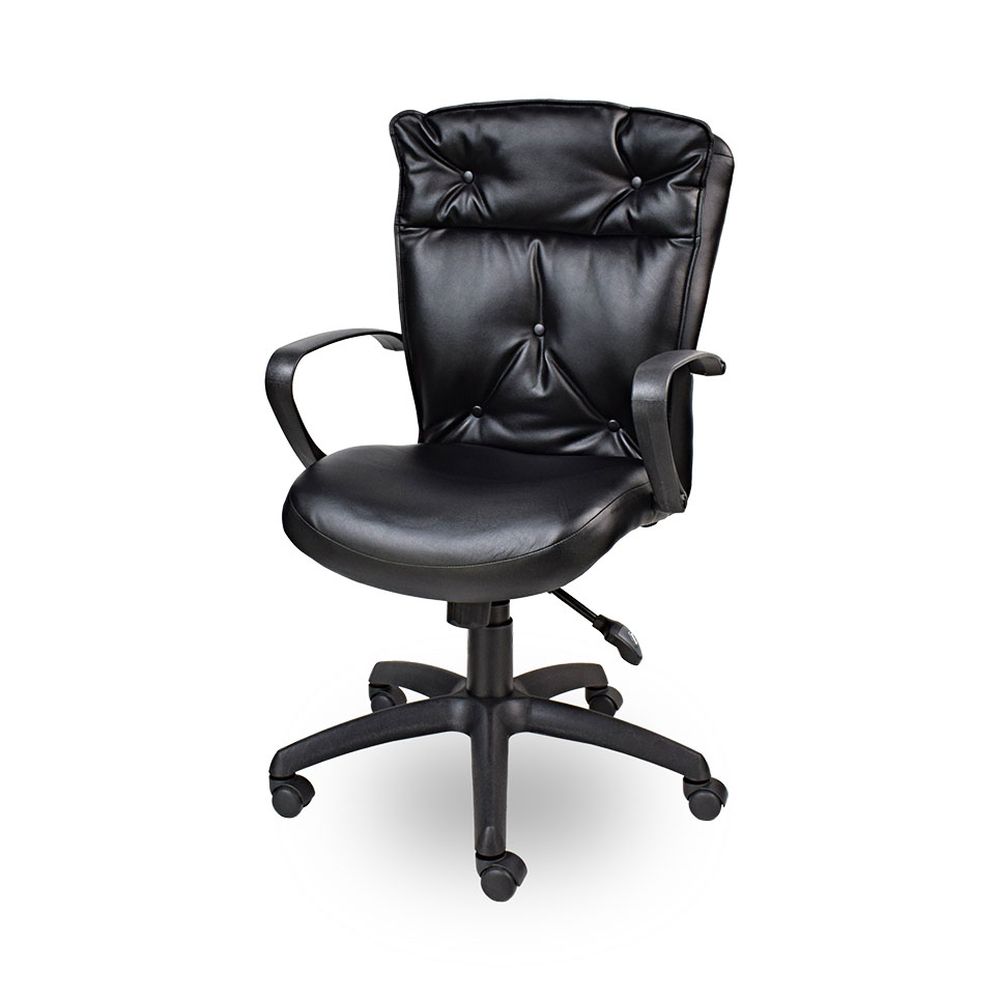

TLC5 – Mid back
Use the same mechanism, spindle, base, seat & back rest
Option of arms

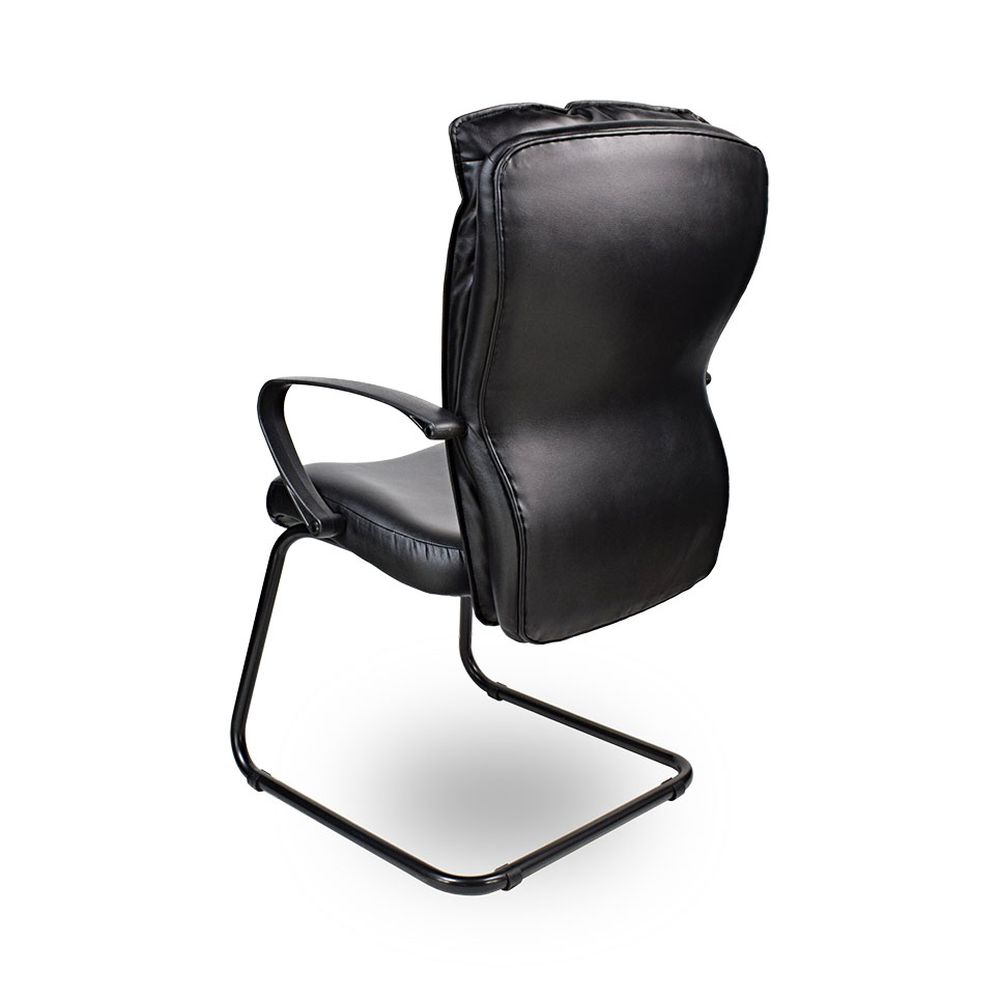

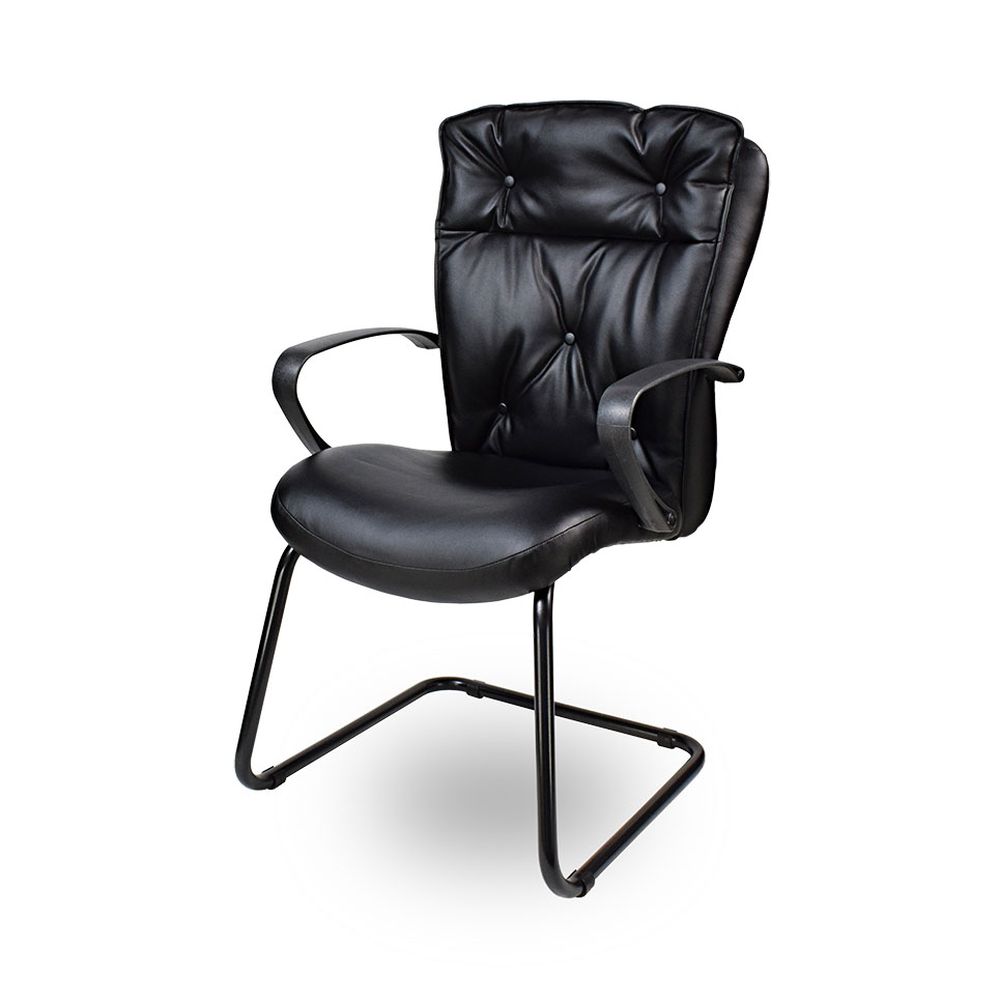

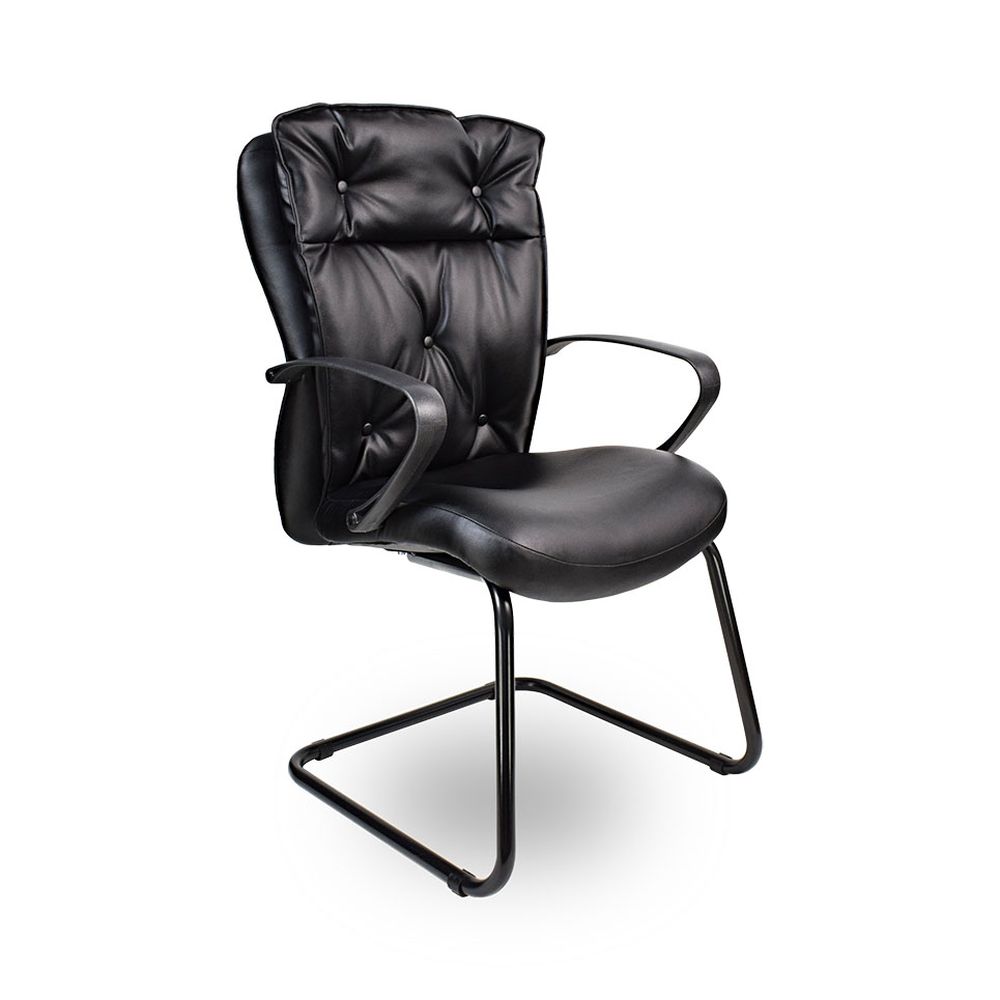

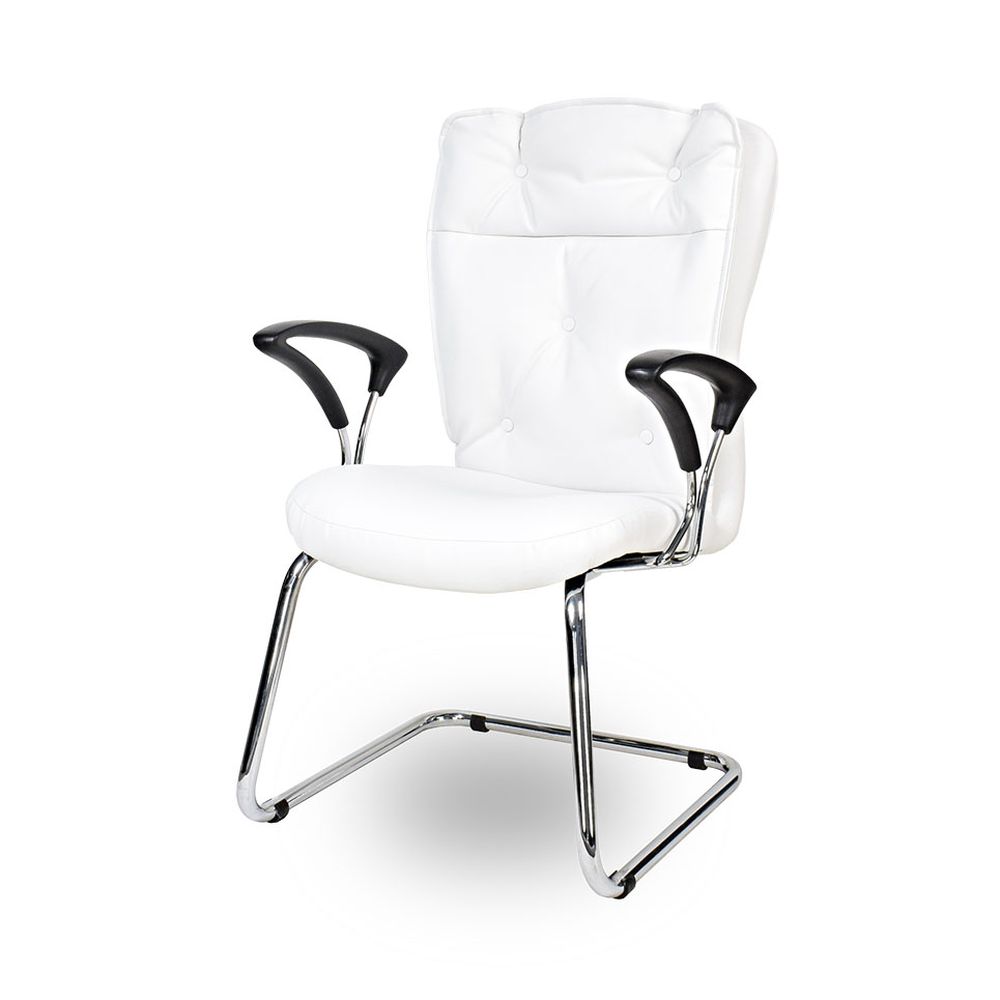

TLC2 – Visitors chair
Use the same seat & back rest
25mm Round tubing sleigh base frame – Cold rolled steel with 2.5mm wall thickness
Option of arms
Option of Integral sleigh base frame
Fabric Ranges
Range 1 – Range 11
