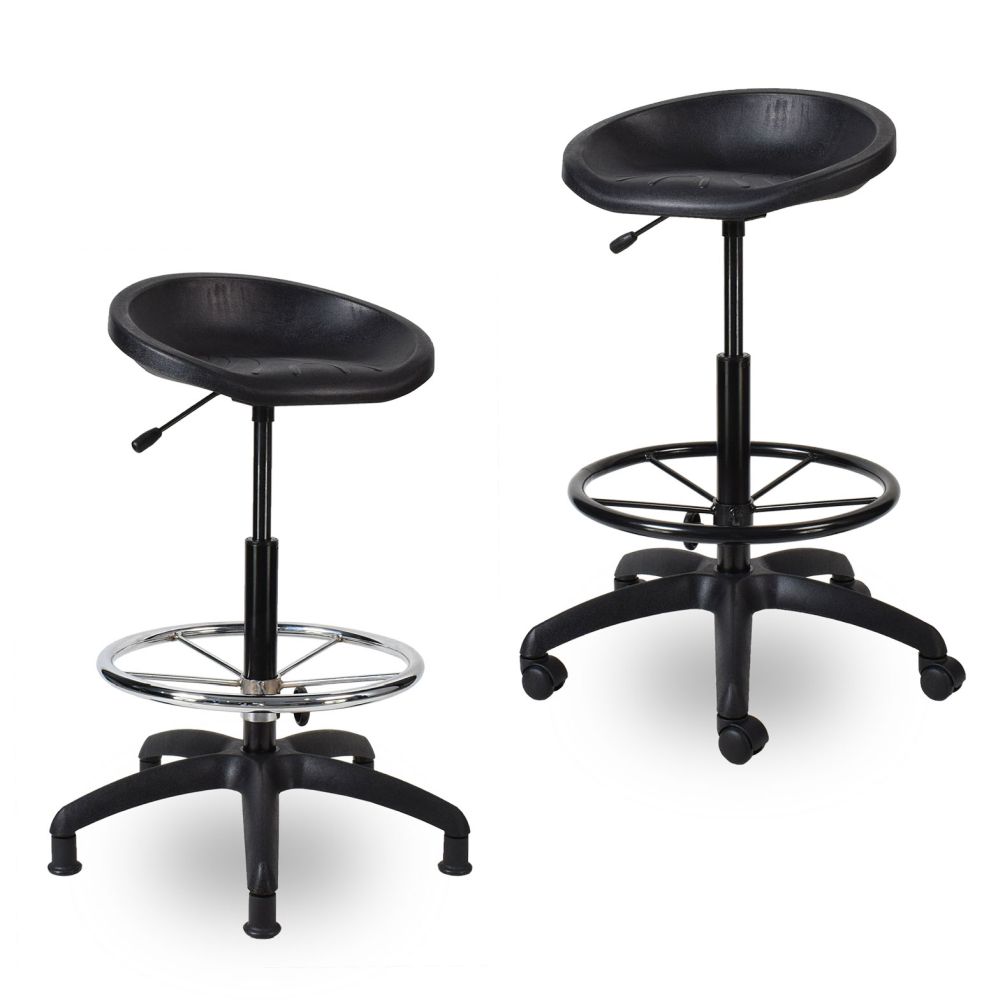

Scoop Draughtsman Chair
The Scoop stool features a contoured seat for added comfort and mobility in compact workspaces. Its height-adjustable design and sturdy base make it ideal for laboratories, clinics, or industrial settings.
Dimensions
| NPUB9 | NPUB9-FSFR | |
| Overall Height | 730mm | 780mm |
| Overall Width | 485mm | 520mm |
| Overall Depth | 485mm | 520mm |
| Total Weight | 8,5kg | 9kg |
| Seat Lowest | 620mm | 670mm |
| Seat Highest | 870mm | 920mm |
Specifications
NPUB9 – Industrial PU Draughtsman Stool
Mechanism
Swivel plate
Hand control – Height adjustment lever
Gas Spindle
Draughtsman – Class 4
Base
700mm Nylon base with 50mm hooded castors
Option of Chrome base
Foot ring
25mm Round tubing – Cold rolled steel with 1.2mm wall thickness
10mm Mild steel struts
Option of chrome, nylon or free-standing foot ring
Seat
Solid polyurethane moulded onto a 3mm base plate and 6mm round bar outer support
FSFR/C – Free standing foot ring
Ring 500Ø – 25mm Round tubing – Cold rolled steel with 1.2mm wall thickness
Legs – 22.23mm Square tubing – Cold rolled steel with 1.2mm wall thickness –
Levelling adjusters –
Option of black powder coated or chromed
Option of 400Ø or 500Ø ring
Mechanism
Base Options
