Draughtsman

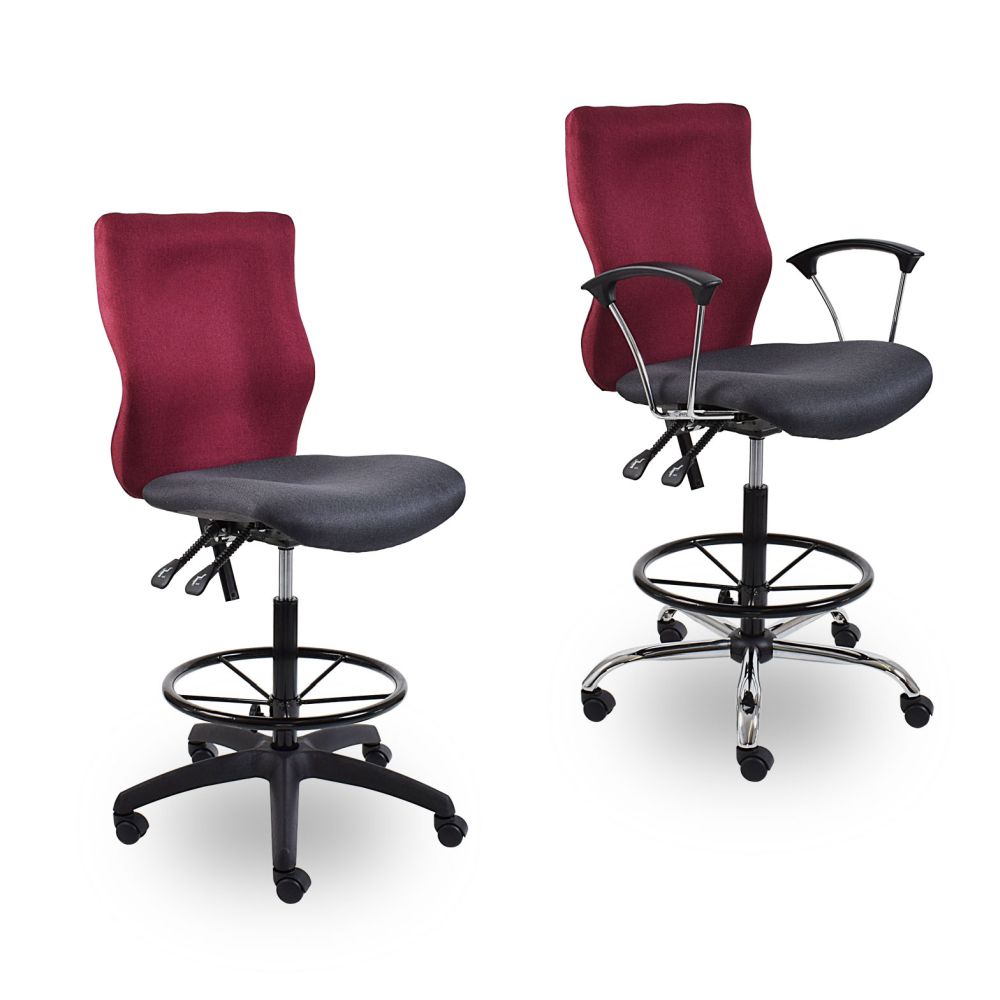

S5009 Draughtsman
Our Draughtsman Range is built for elevated workspaces, offering enhanced height and support for precision tasks. With its footring and adjustable features, it?s ideal for technical and creative environments.
Movements
Dimensions
| S5009 | |
| Overall Height | 1140mm |
| Overall Width | 500mm |
| Overall Depth | 600mm |
| Total Weight | 14kg |
| Seat Lowest | 690mm |
| Seat Highest | 935mm |
Specifications
S5009 – M/B Operators Draughtsman
Mechanism
Back Rake Mechanism
Right hand lever – Front –
Height adjustment lever
Right hand lever – Back –
Back rest adjustment lever
Gas Spindle
Draughtsman – Class 4
Base
700mm Nylon base with 50mm hooded castors
Option of Chrome base
Foot ring
25mm Round tubing – Cold rolled steel with 1.2mm wall thickness
10mm Mild steel struts
Option of chrome, nylon or free-standing foot ring
Seat
Injection moulded plastic
Laminated VC64 chip foam and VP70 high density foam
Back
Pressed plywood
VP30 medium density foam
Back rest is height adjustable –
Loosen hand knob on back of mechanism and lift or lower back
