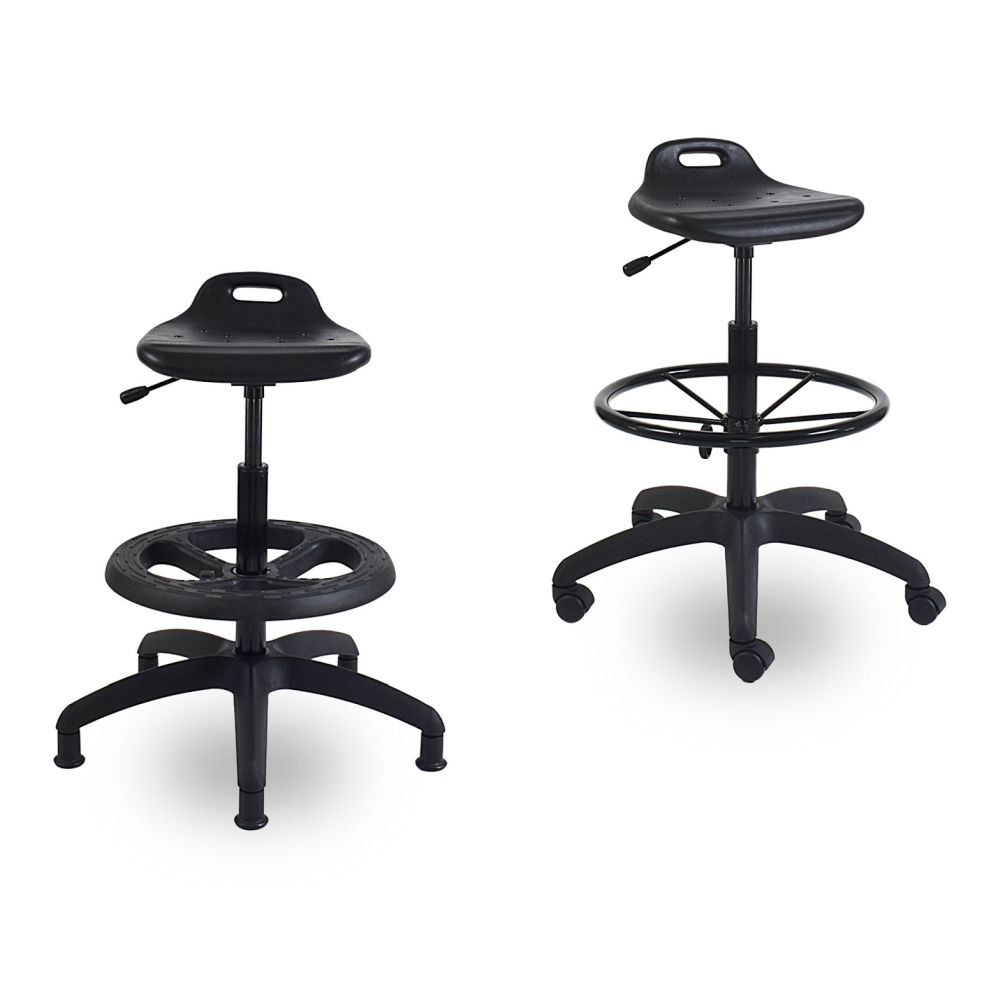

PUB9 – Draughtsman Chair (Black)
The Pub Stool offers a durable, no-fuss seating option with a moulded seat and integrated handgrip for easy mobility.
Dimensions
| PUB9 | PUB9-FSFR | |
| Overall Height | 750mm | 800mm |
| Overall Width | 485mm | 520mm |
| Overall Depth | 485mm | 520mm |
| Total Weight | 8kg | 8,5kg |
| Seat Lowest | 630mm | 690mm |
| Seat Highest | 880mm | 940mm |
Specifications
PUB9 – Industrial PU Draughtsman Stool
Mechanism
Swivel plate
Hand control
Height adjustment lever
Gas Spindle
Draughtsman – Class 4
Base
700mm Nylon base with 50mm hooded castors
Option of Chrome base
Foot ring
25mm Round tubing – Cold rolled steel with 1.2mm wall thickness
10mm Mild steel struts
Option of chrome, nylon or free-standing foot ring
Seat
Solid polyurethane moulded onto pressed plywood

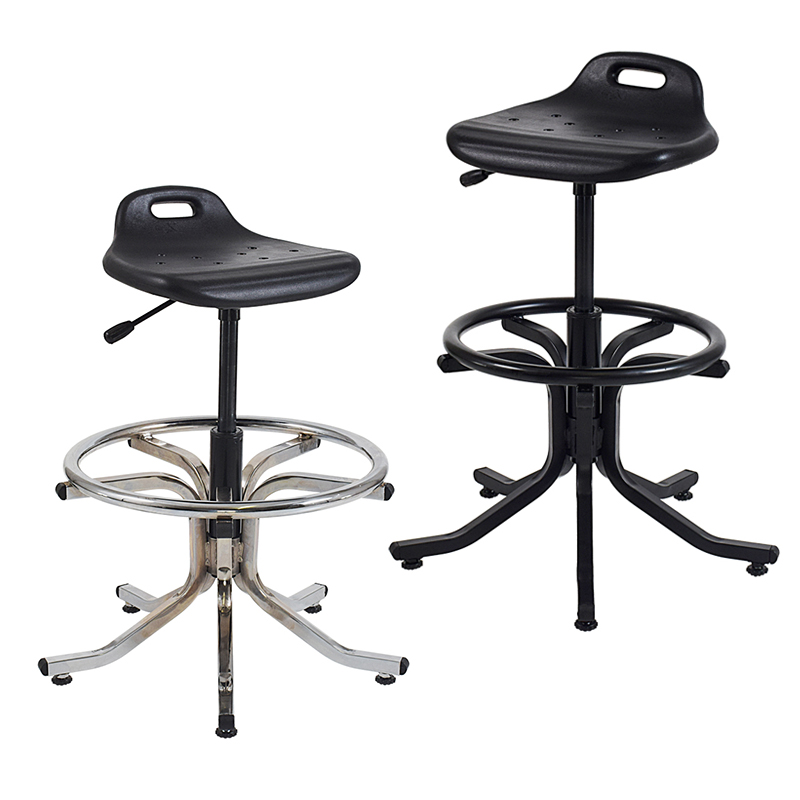

FSFR/C – Free standing foot ring
Ring 500Ø – 25mm Round tubing – Cold rolled steel with 1.2mm wall thickness
Legs – 22.23mm Square tubing – Cold rolled steel with 1.2mm wall thickness
Levelling adjusters
Option of black powder coated or chromed
Option of 400Ø or 500Ø ring
