| Chair Style | High Back, Mid Back, Visitors |
|---|---|
| Arm Variants | No Arms, Y55, Y75, Y100, Y200, Y300, Y310, Y320, Y350, Y400, Y420, Y500, Y600, Y800 |
Executive

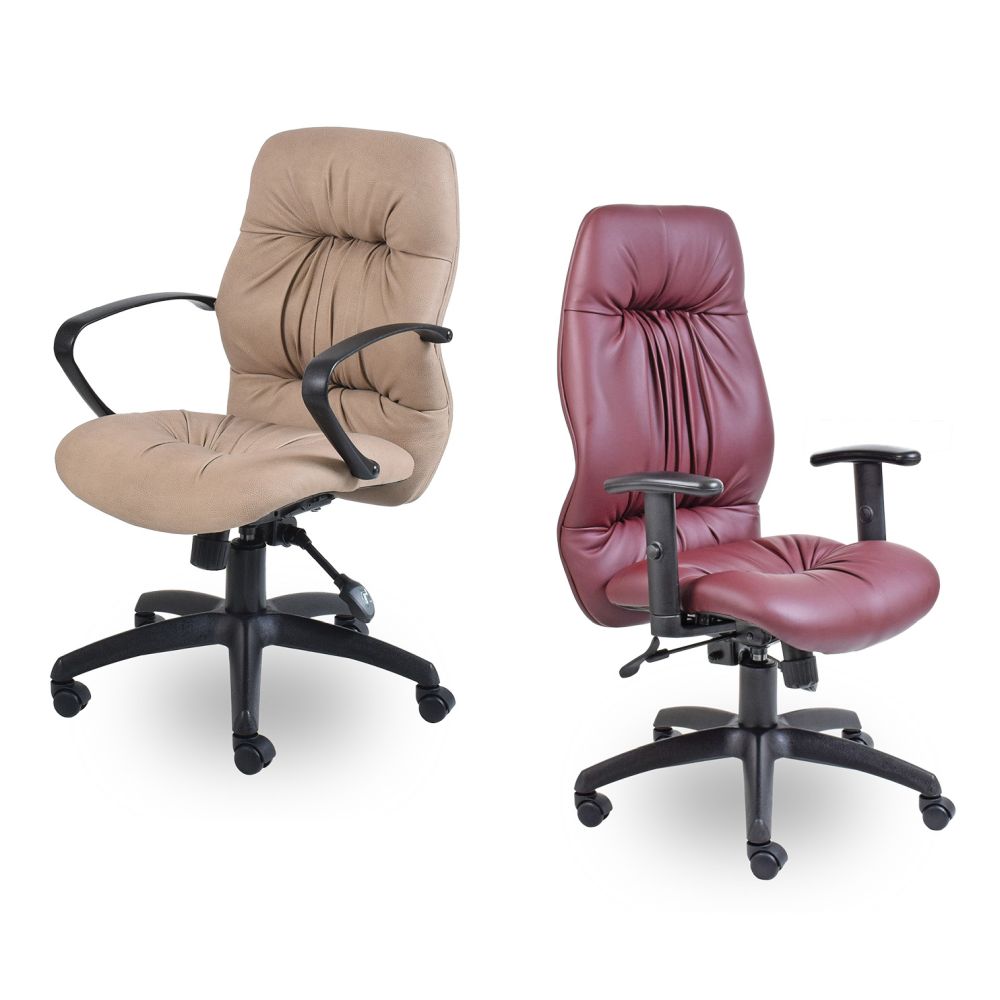

Jasmin Range
The timeless tufted design of the Jasmin Range complements any executive environments.
Movements
Dimensions
| Highback | Midback | Visitors | |
| Overall Height | 1100mm | 1000mm | 1020mm |
| Overall Width | 610mm | 610mm | 610mm |
| Overall Depth | 590mm | 590mm | 680mm |
| Total Weight | 21kg | 20kg | 18kg |
| Seat Lowest | 480mm | 480mm | 520mm |
| Seat Highest | 570mm | 570mm | 520mm |
Specifications

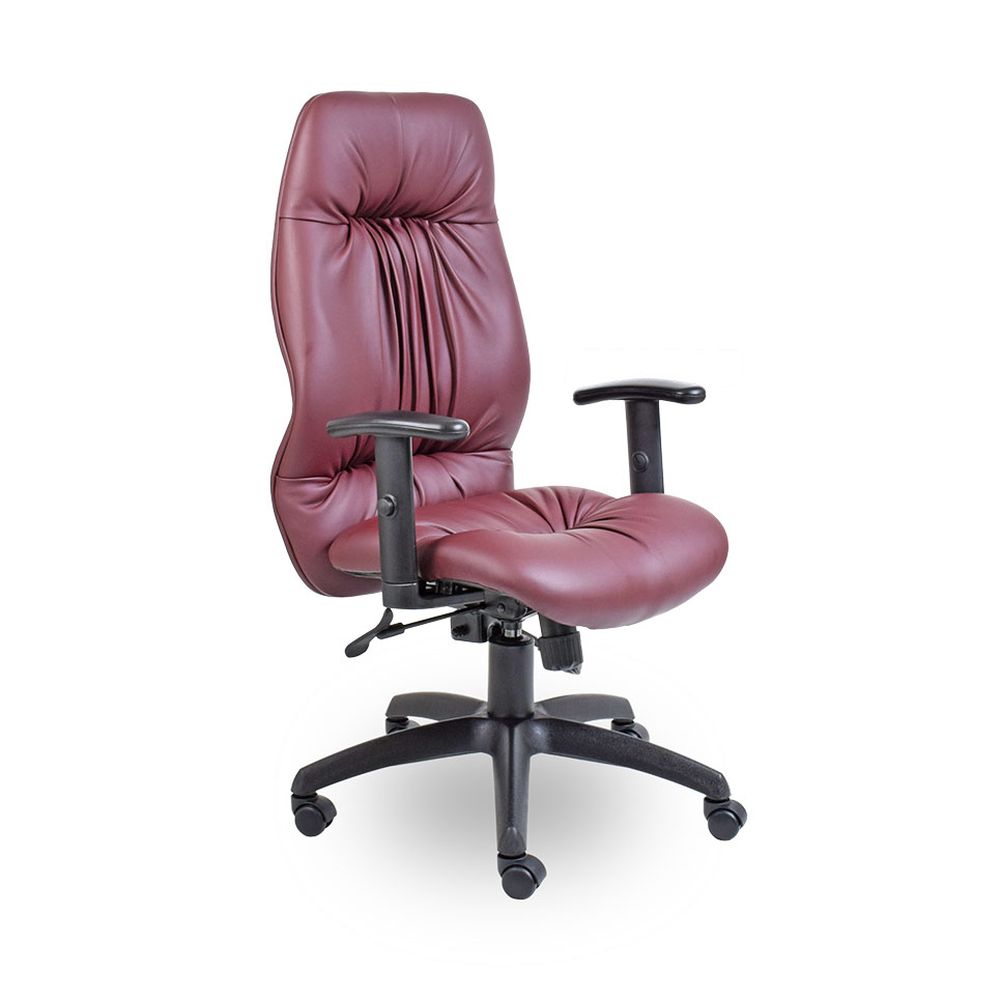

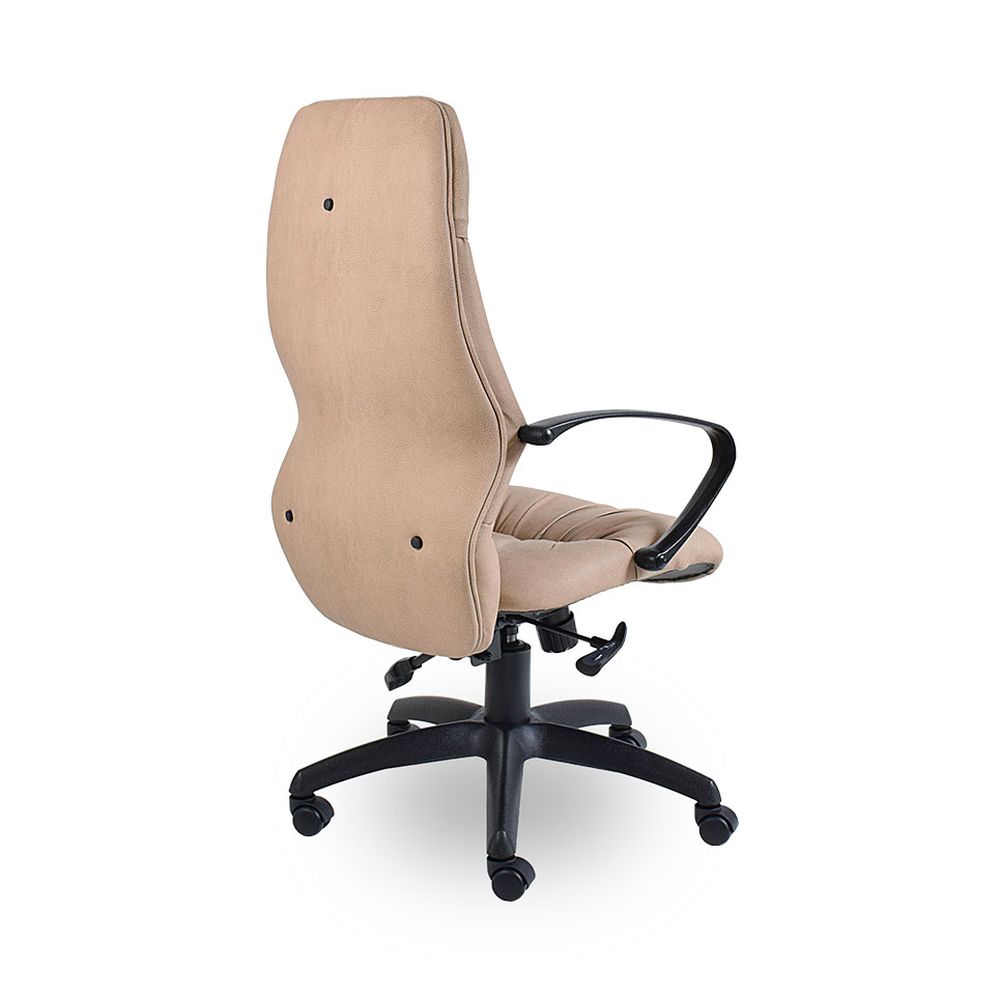

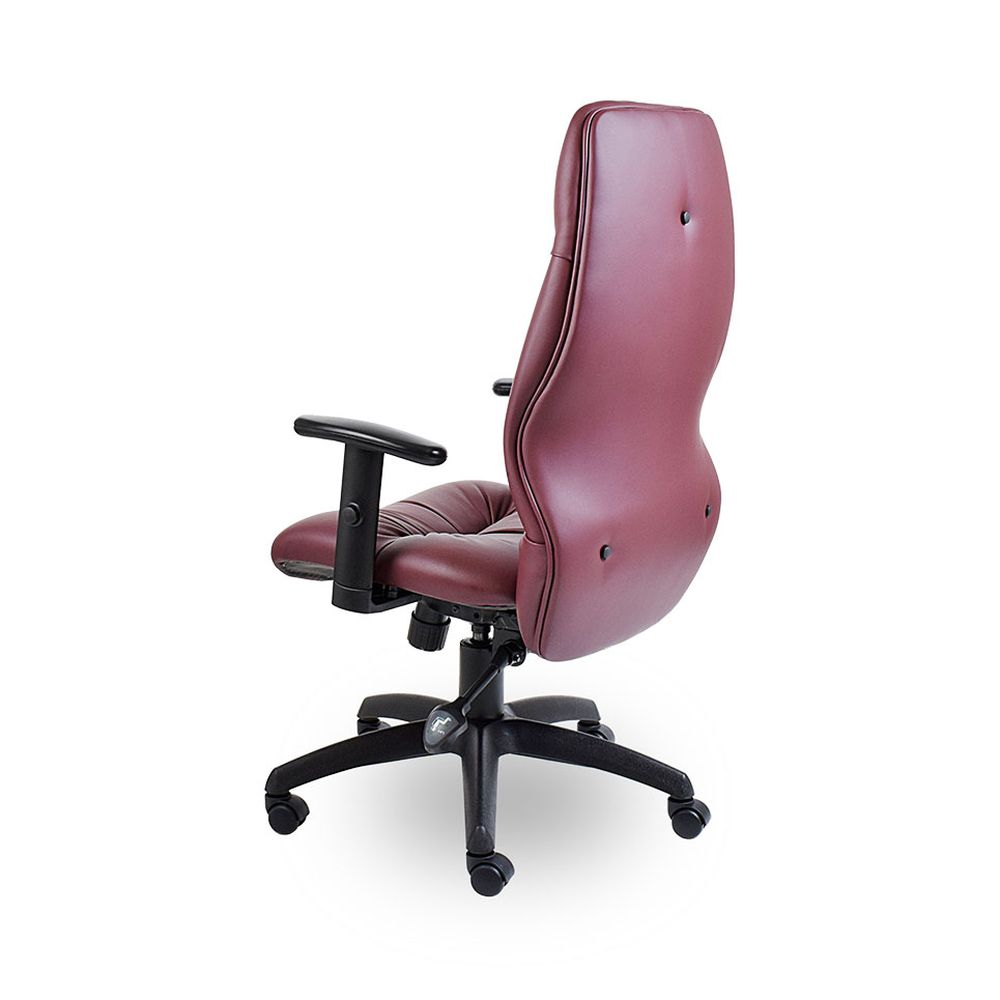

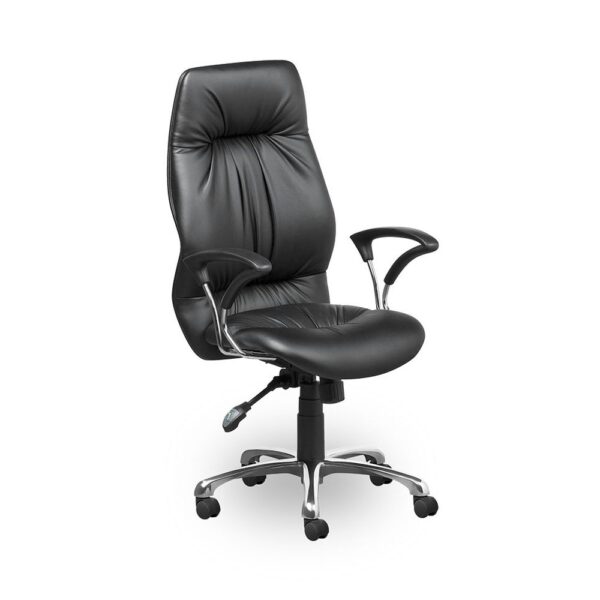

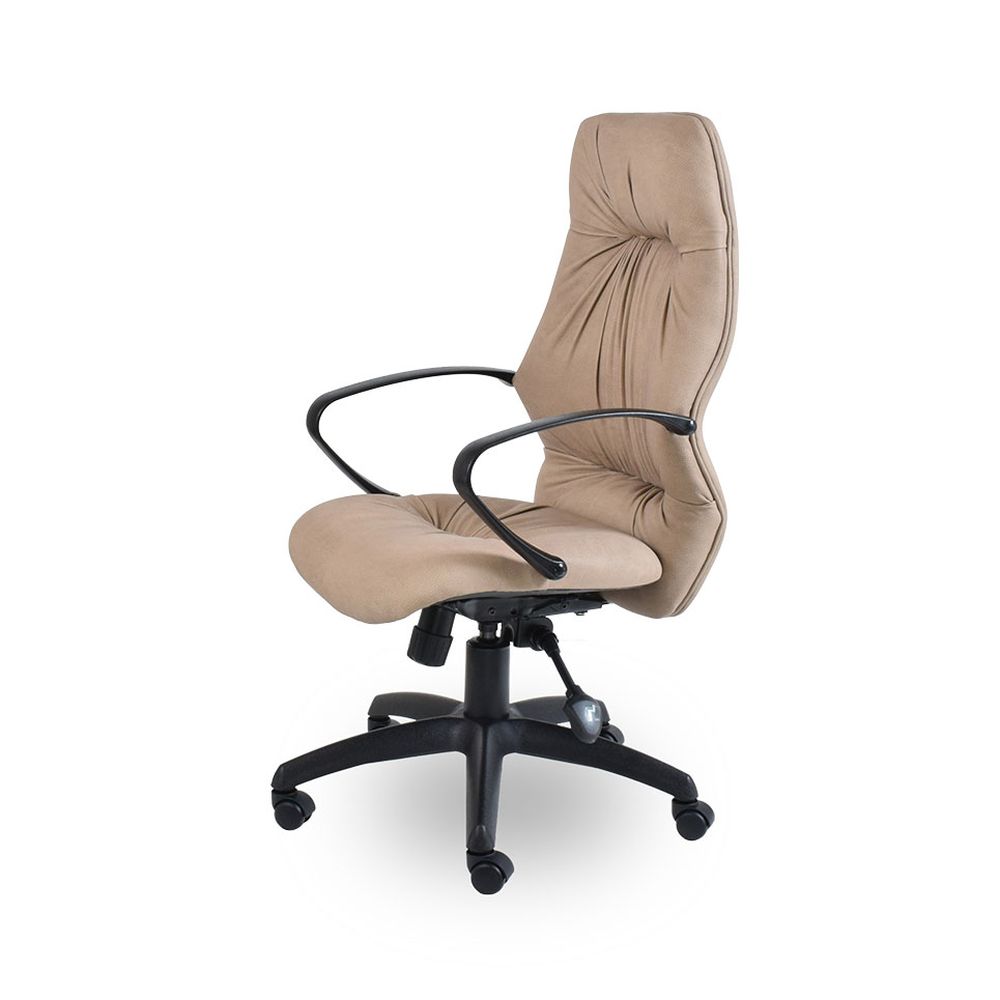

JC6 – High Back
Mechanism
Synchro lock mechanism with back tension adjustment
Right hand controls
Height adjustment lever
Left hand controls
Pull lever upwards for constant back contact – free floating
Push lever downwards to lock back in any position
Gas Spindle
Executive single taper – Class 4
Base
700mm Nylon base with 50mm hooded castors
Option of Chrome base
Seat
Injection moulded plastic
Laminated VC64 chip foam and VP70 high density foam
Roughed upholstered
Back
Pressed plywood
VP30 medium density foam
Upholstered pressed plywood back cover
Roughed upholstered

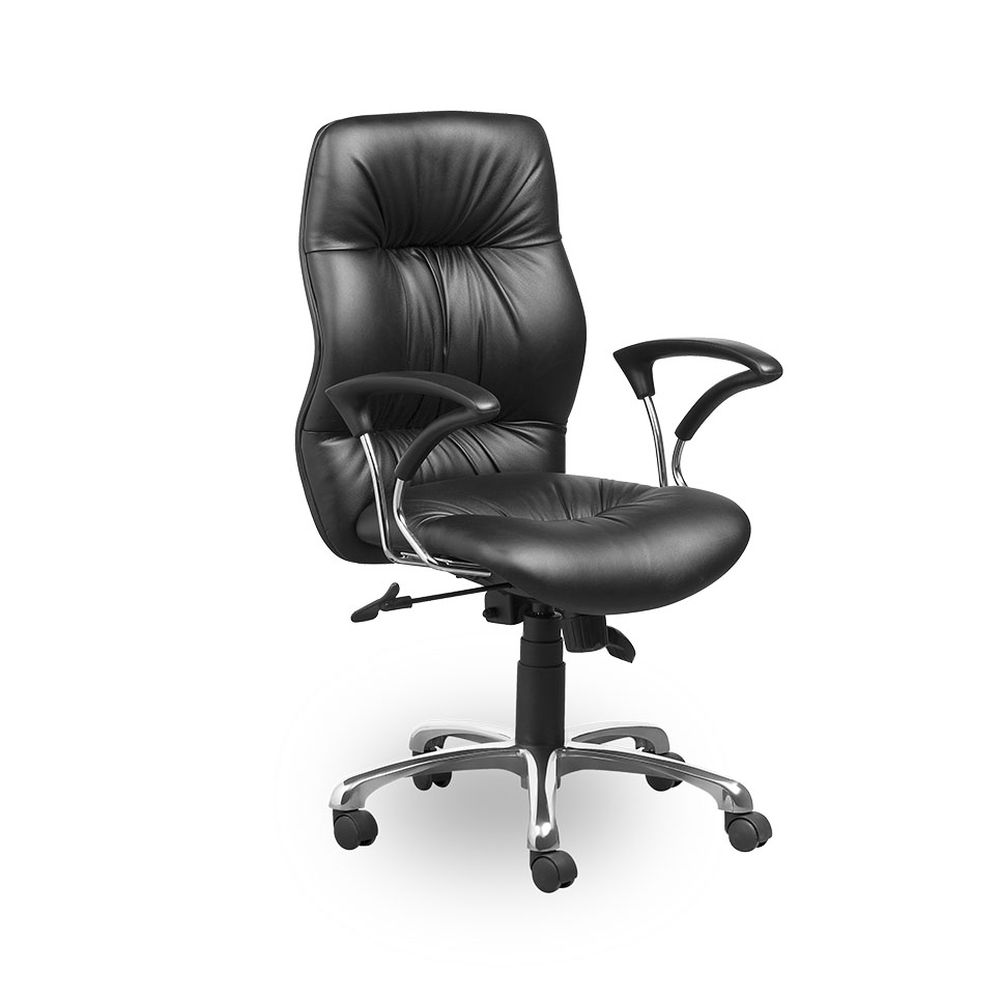

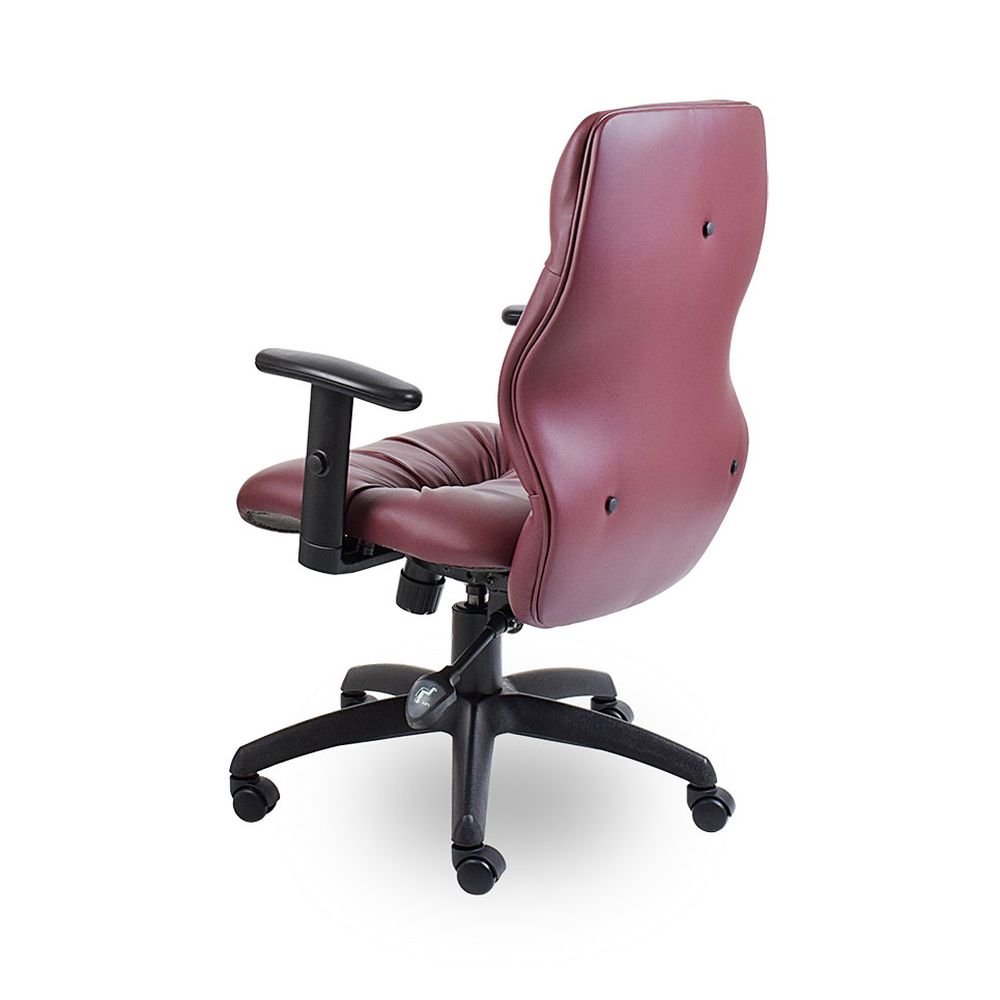

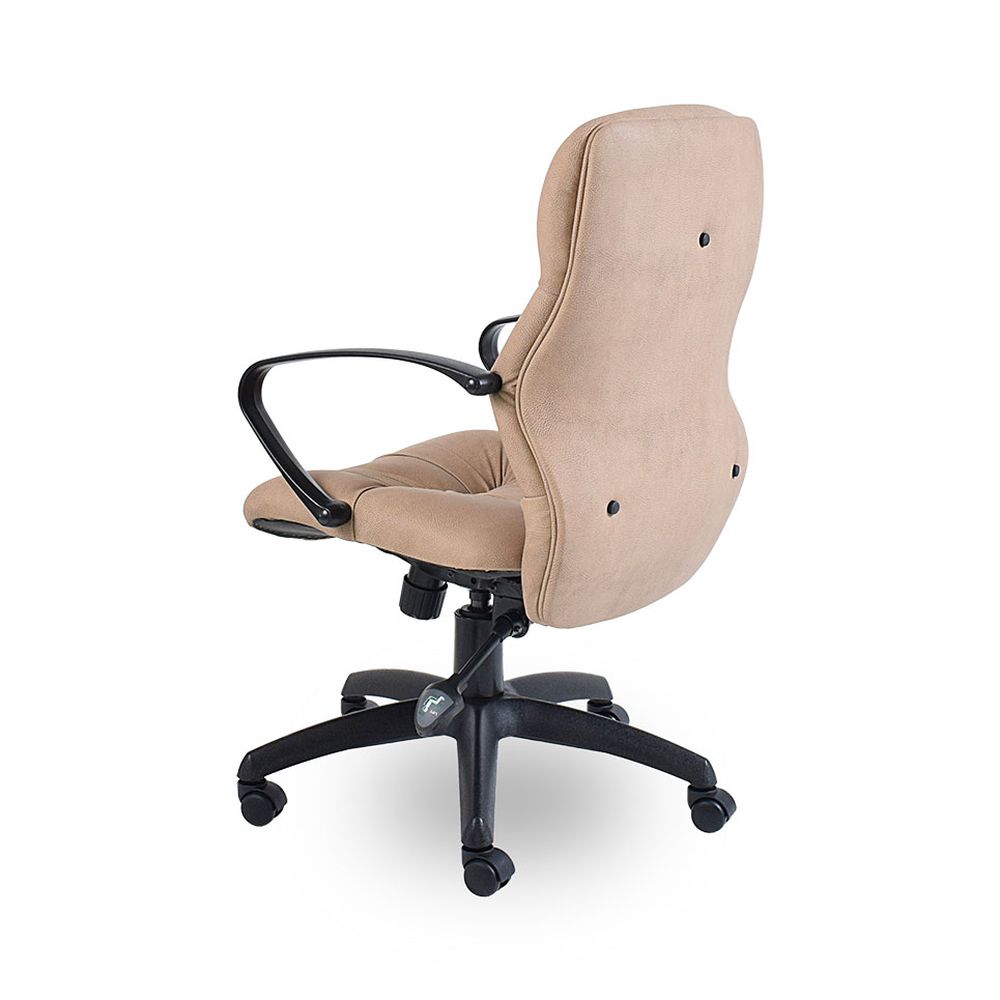

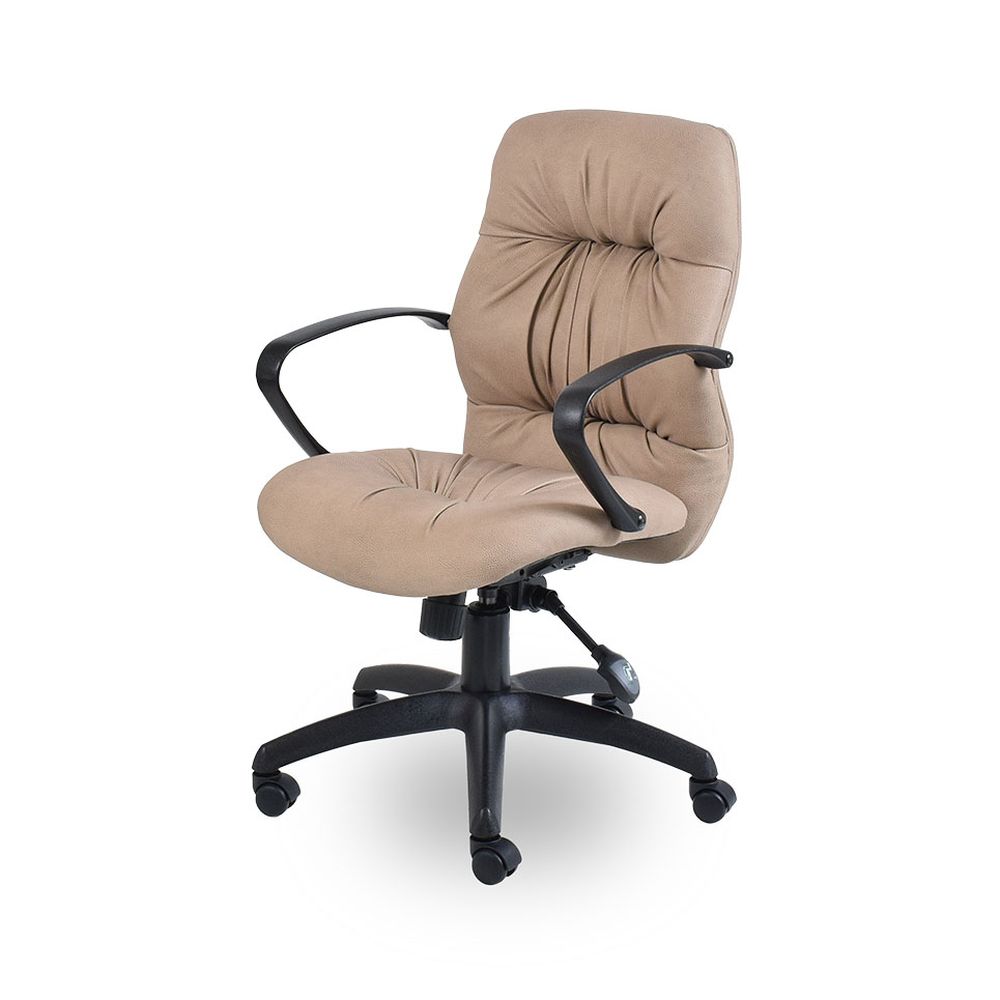

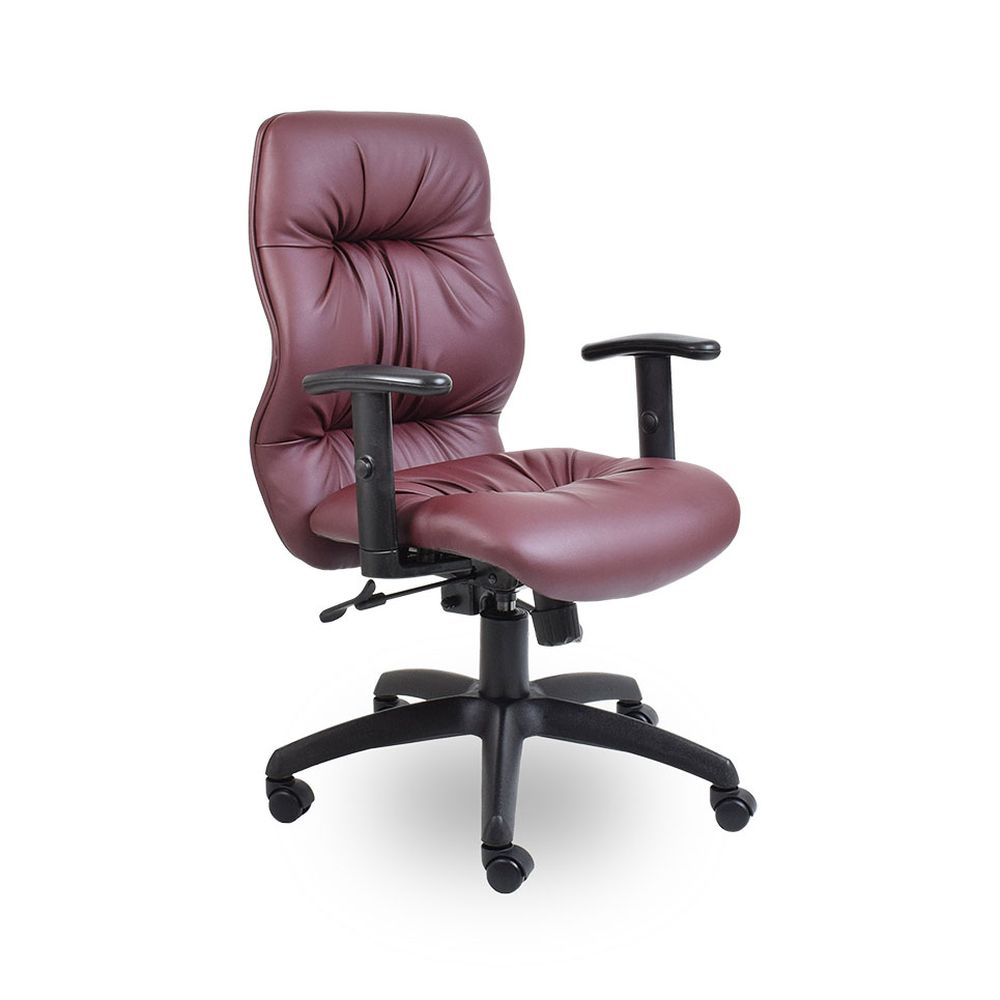

JC5 – Mid Back
Use the same mechanism, spindle, base, seat & back rest

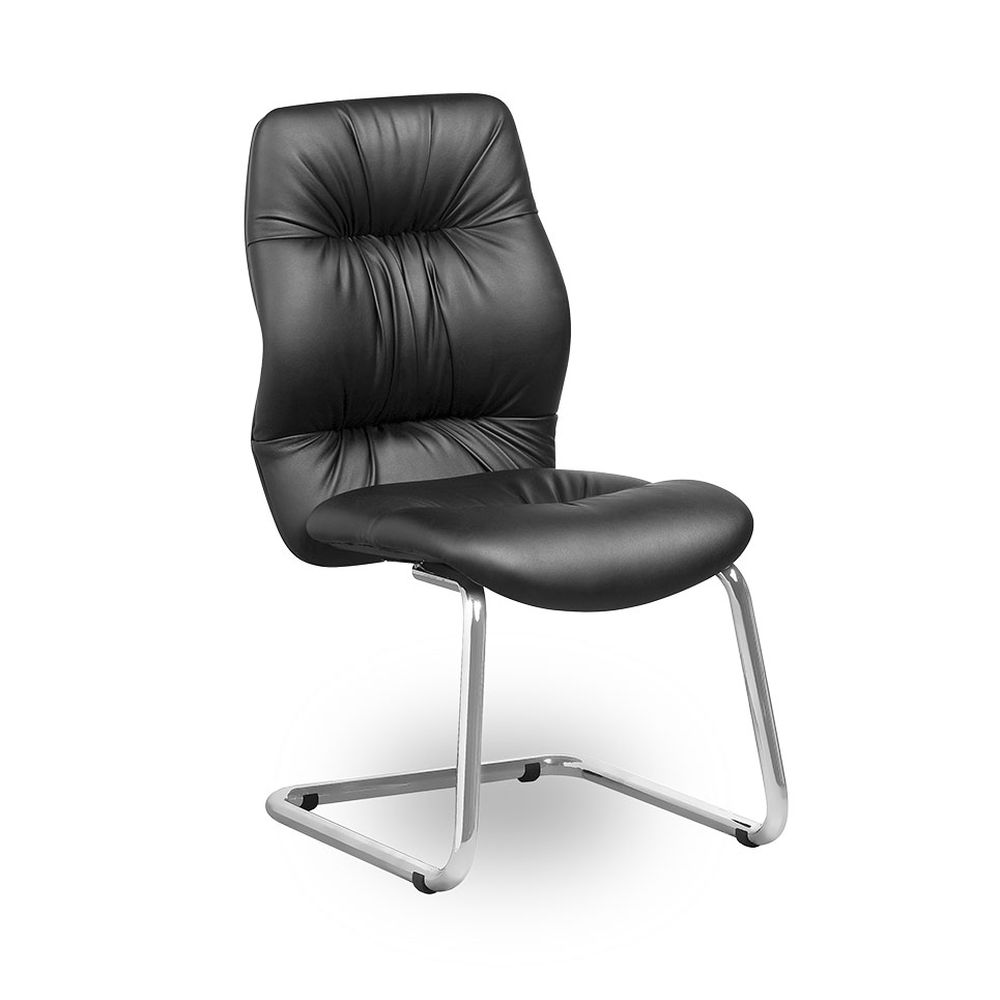

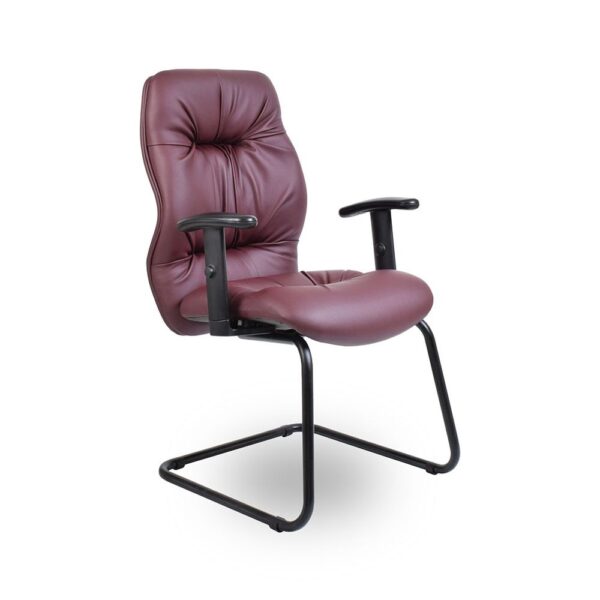

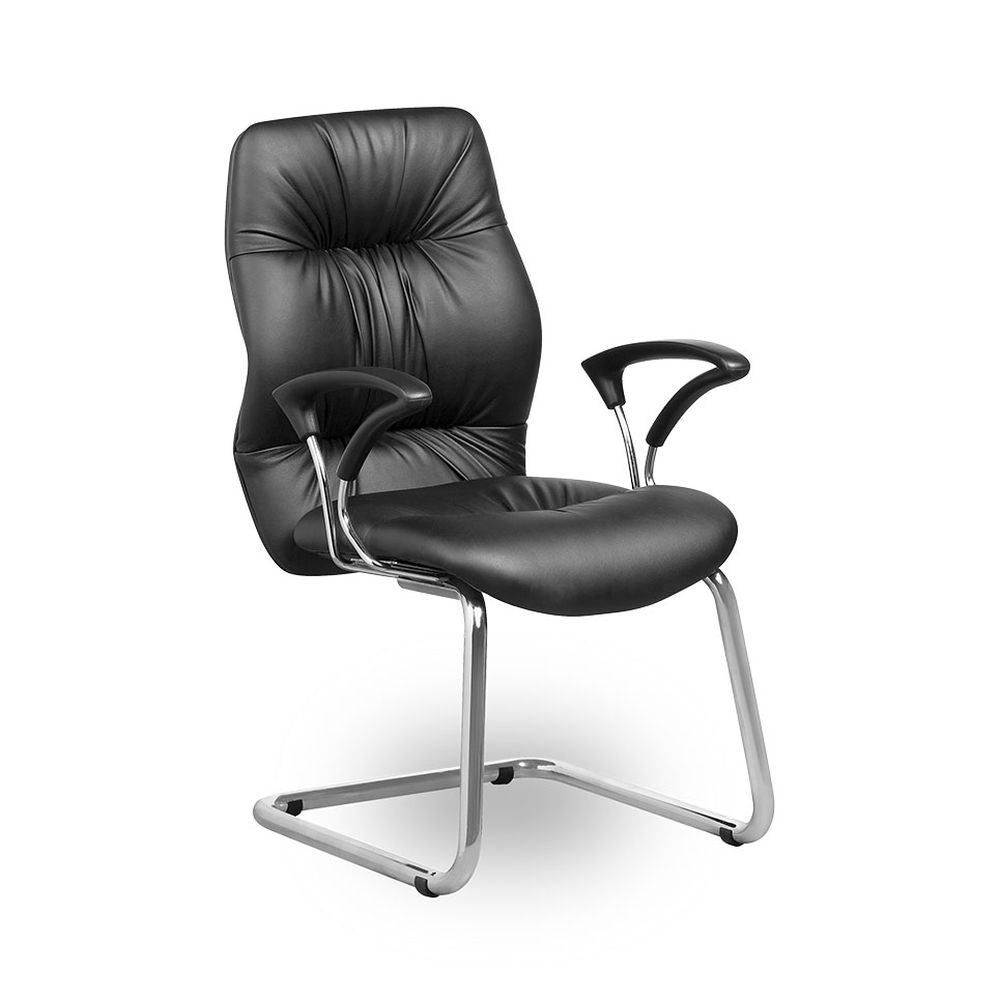

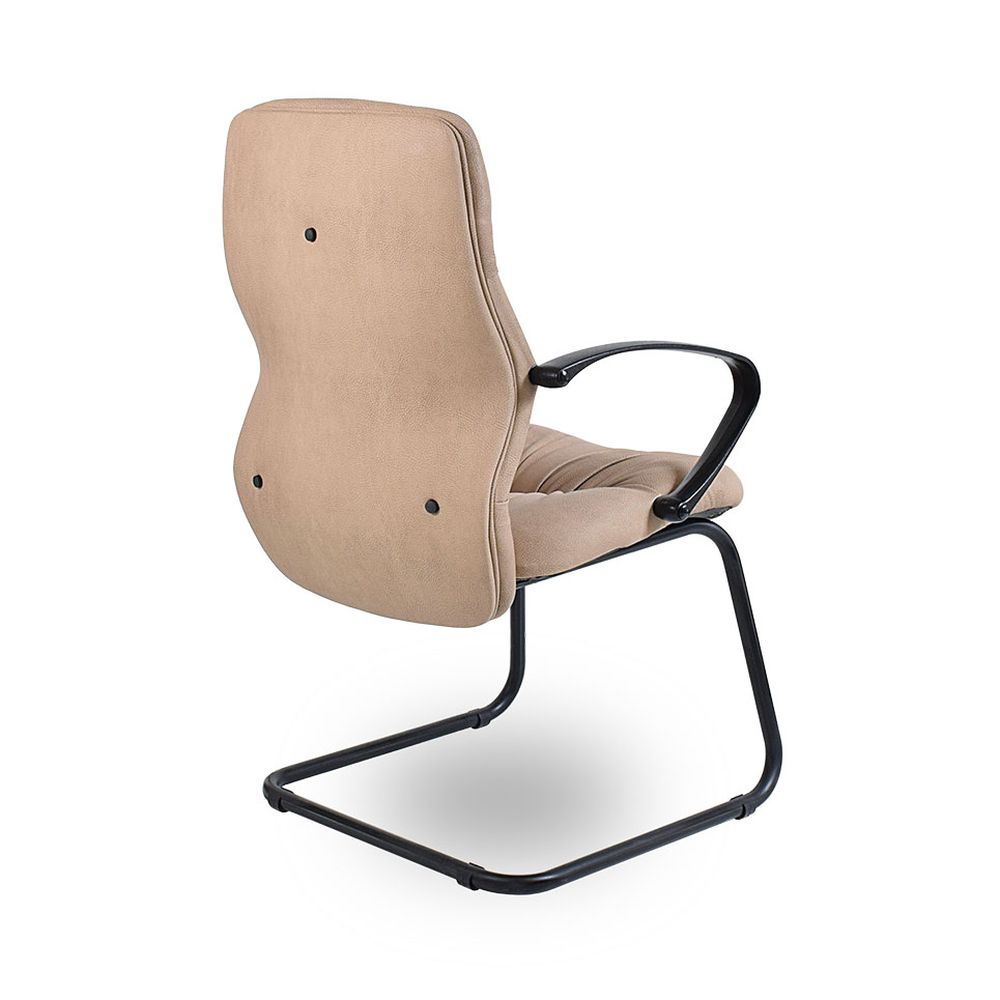

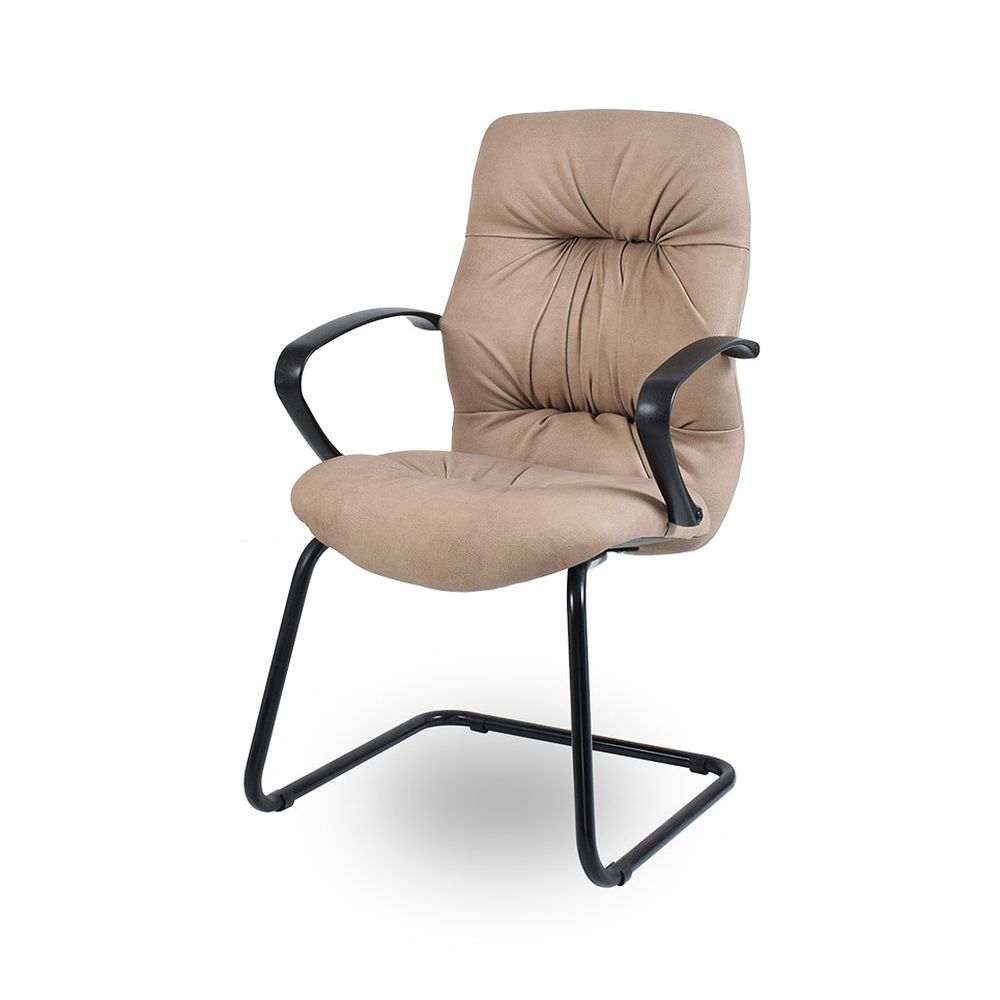

JC2 – Visitors Chair
Use the same seat & back rest
25mm Round tubing sleigh base frame
Cold rolled steel with 2.5mm wall thickness
Fabric Ranges
Range 1 – Range 11
