| Chair Style | High Back, Mid Back, Visitors |
|---|---|
| Arm Variants | No Arms, Y55, Y75, Y100, Y200, Y300, Y310, Y320, Y350, Y400, Y420, Y500, Y600, Y800, Y900, Y950 |
Executive

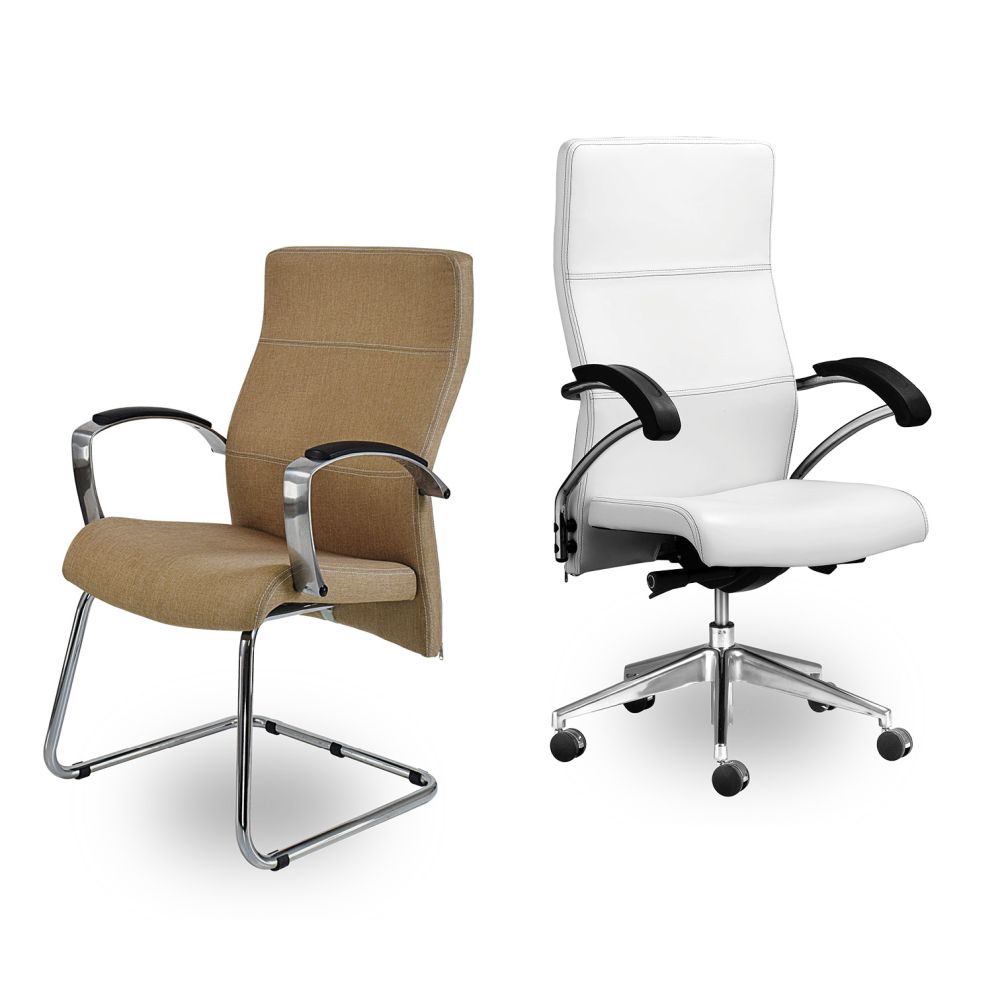

Genesis Range
The Genesis Range strikes a balance between executive presence and everyday practicality. With its high backrest and shaping, it offers superb support for long hours at the desk
Movements
Dimensions
| Highback | Midback | Visitors | |
| Overall Height | 1150mm | 1030mm | 1000mm |
| Overall Width | 615mm | 615mm | 615mm |
| Overall Depth | 650mm | 650mm | 620mm |
| Total Weight | 25kg | 23kg | 19kg |
| Seat Lowest | 440mm | 440mm | 500mm |
| Seat Highest | 540mm | 540mm | 500mm |
Specifications

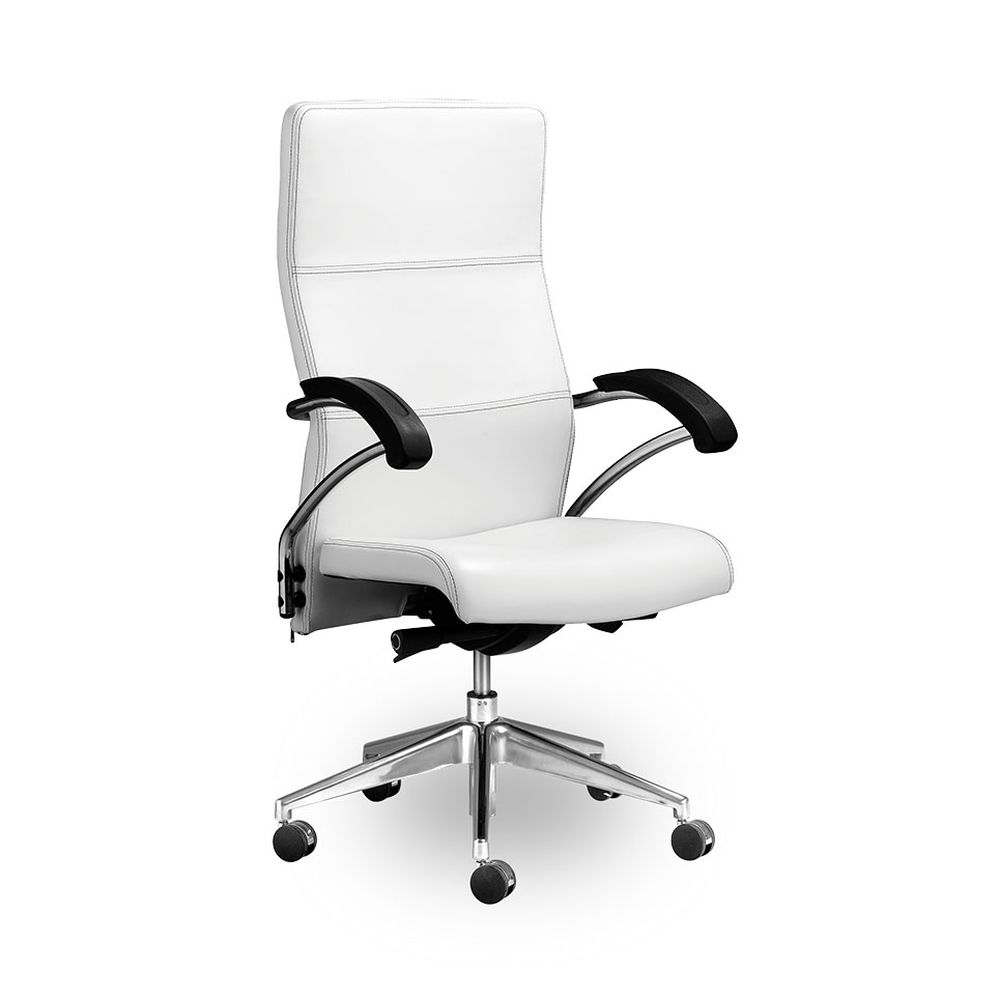

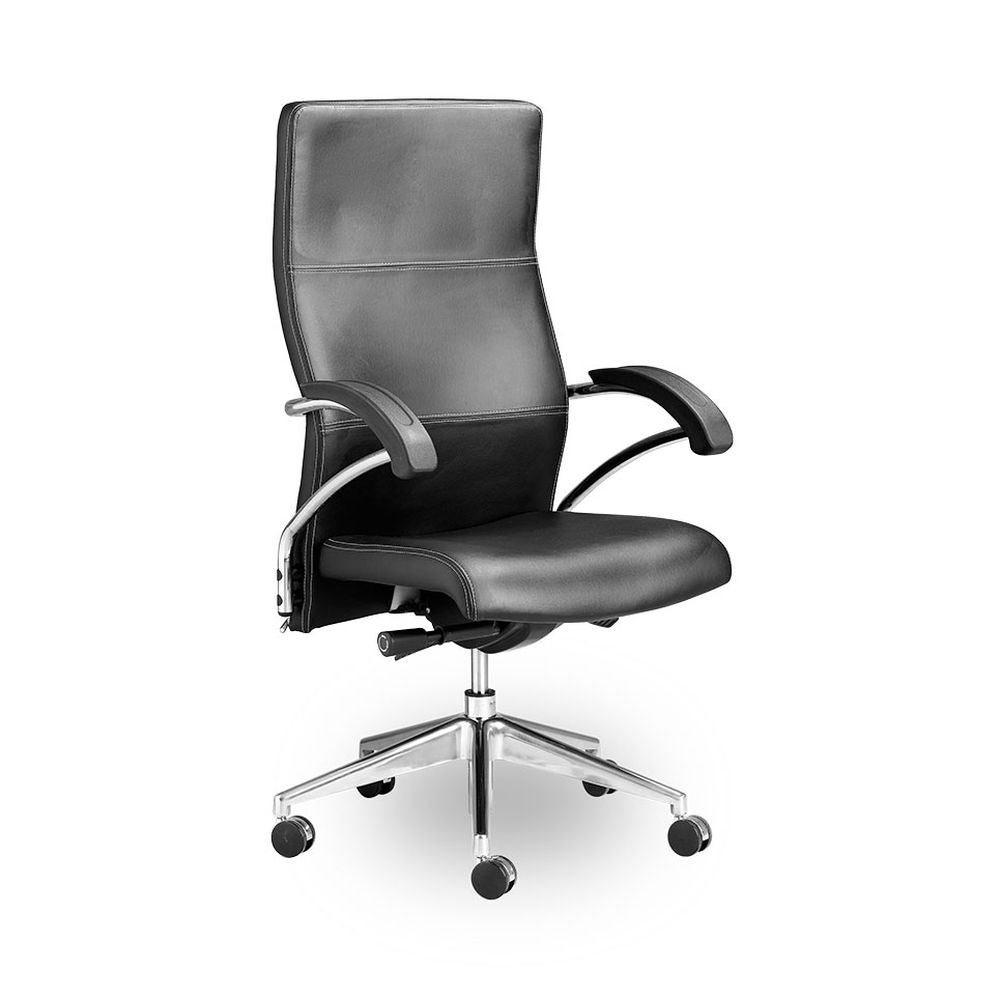

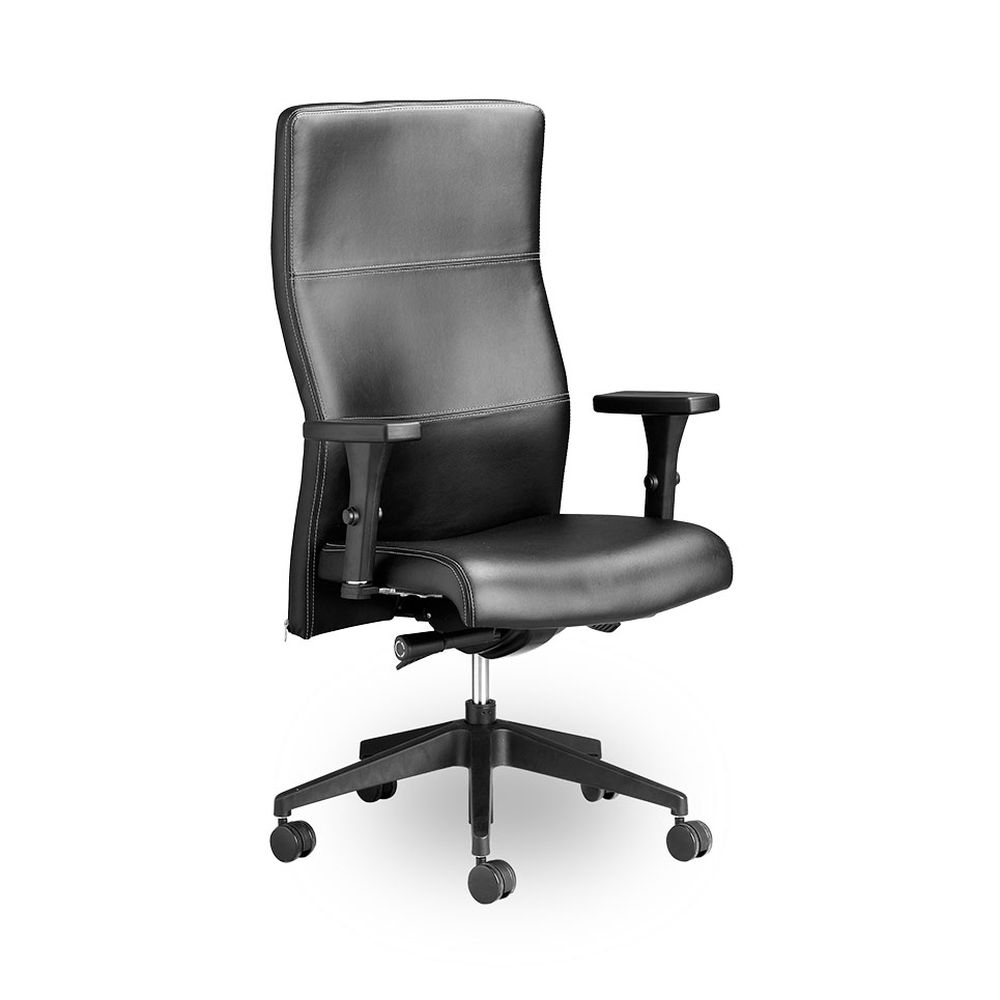

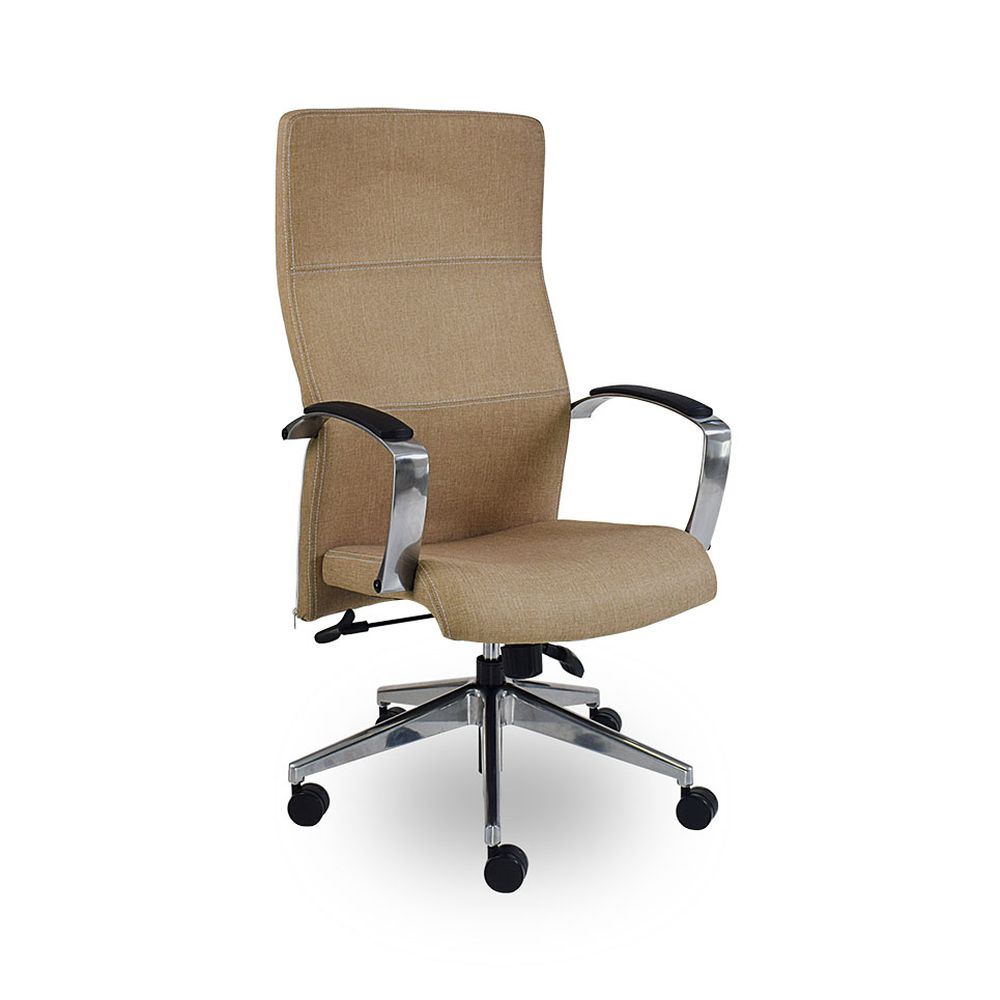

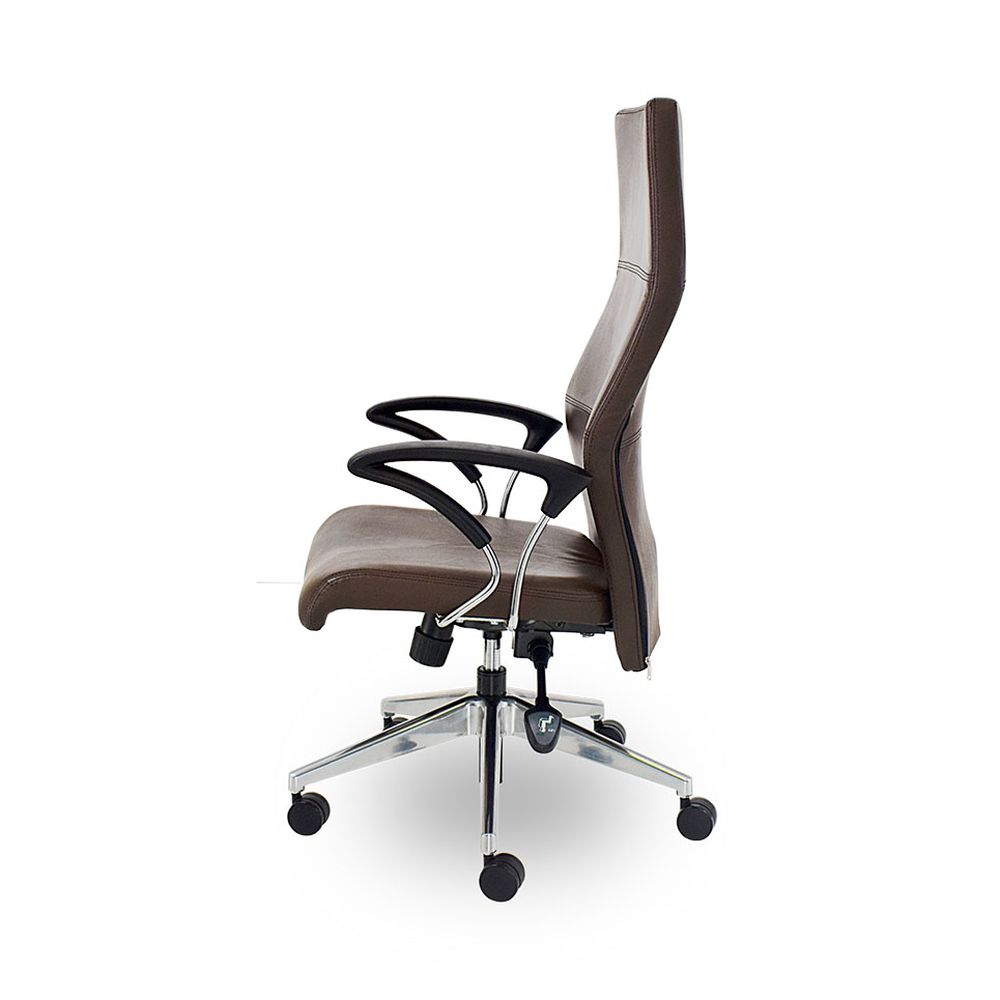

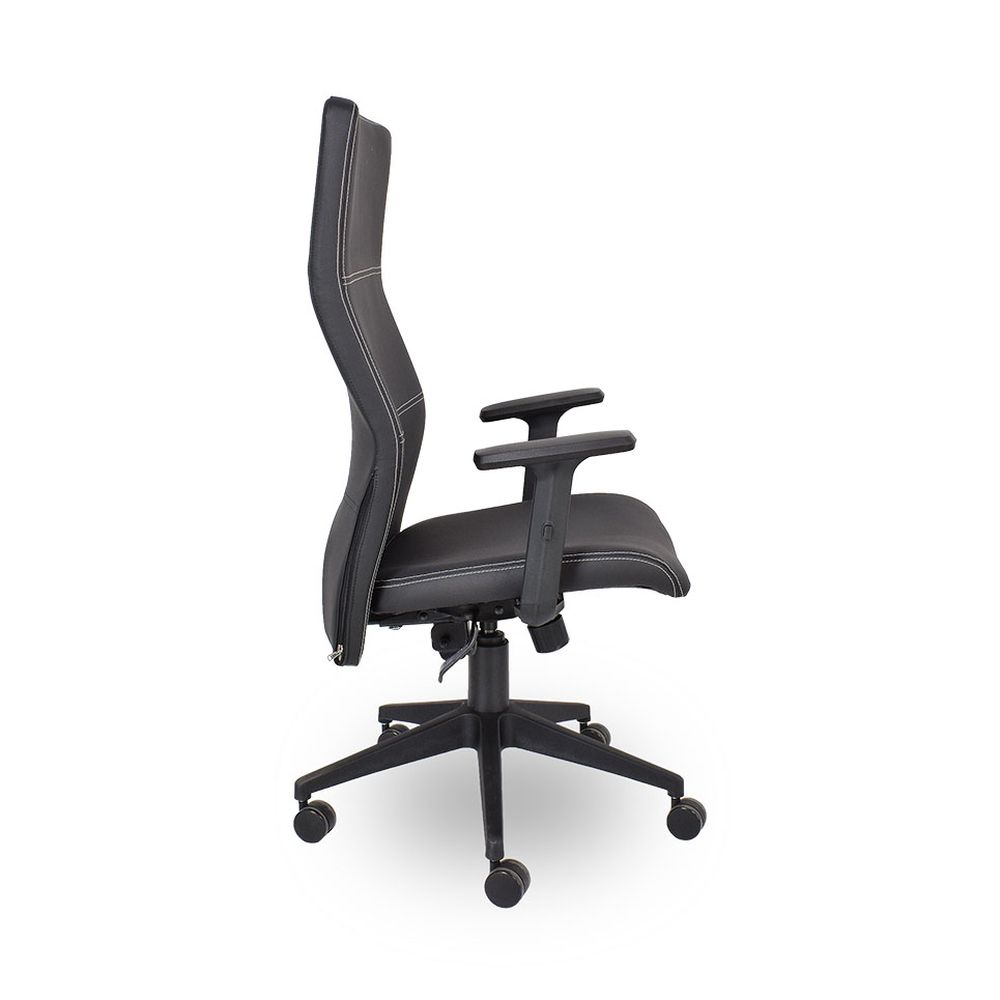

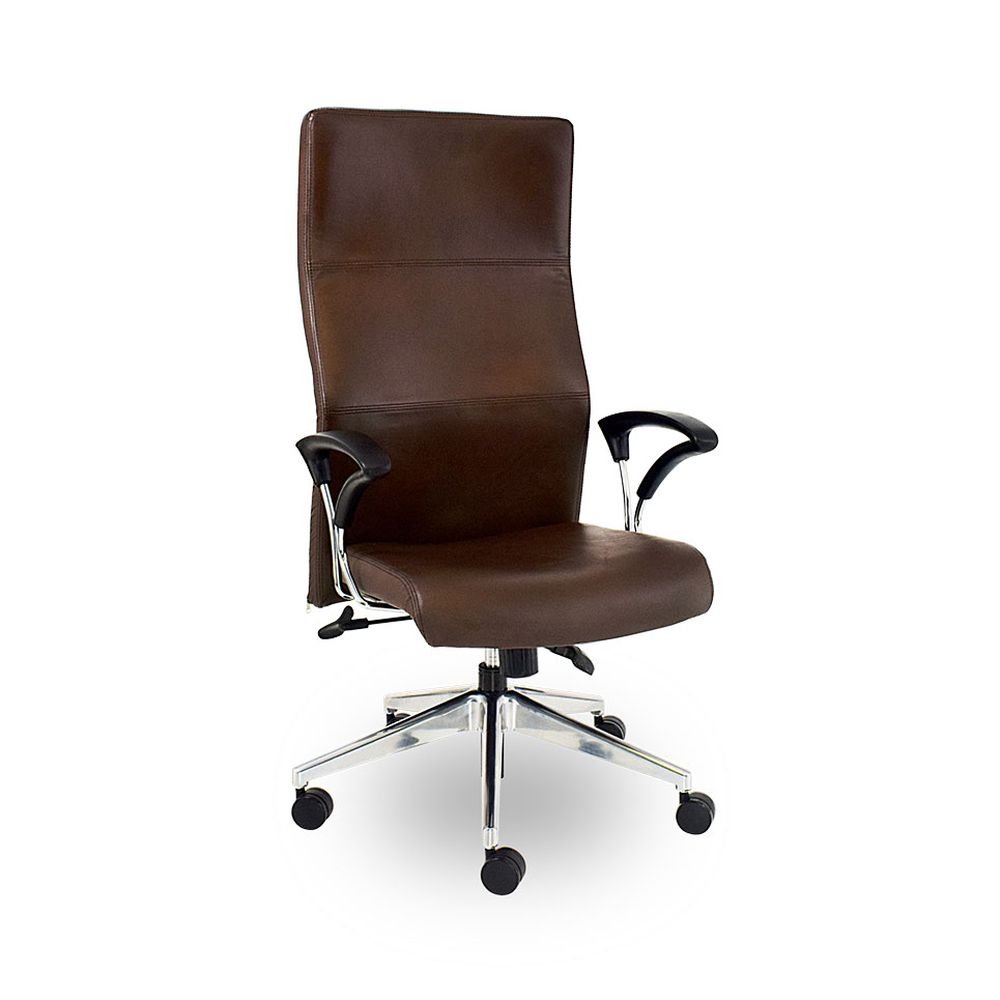

GC6 – High Back
Mechanism
Synchro lock mechanism with back tension adjustment
Right hand controls
Height adjustment lever
Left hand controls
Pull lever upwards for constant back contact – free floating
Push lever downwards to lock back in any position Option of Seat Slide Mechanism
Gas Spindle
Executive double taper – Class 4
Base
700mm Nylon spider base with 60mm hooded castors Option of Aluminium spider base
Seat
Pressed plywood
External saddle stitching Moulded foam
Back
19mm Round tubing with 1.6mm wall thickness
60 x 8mm connecting plate
Moulded foam, concealing frame work
External saddle stitching

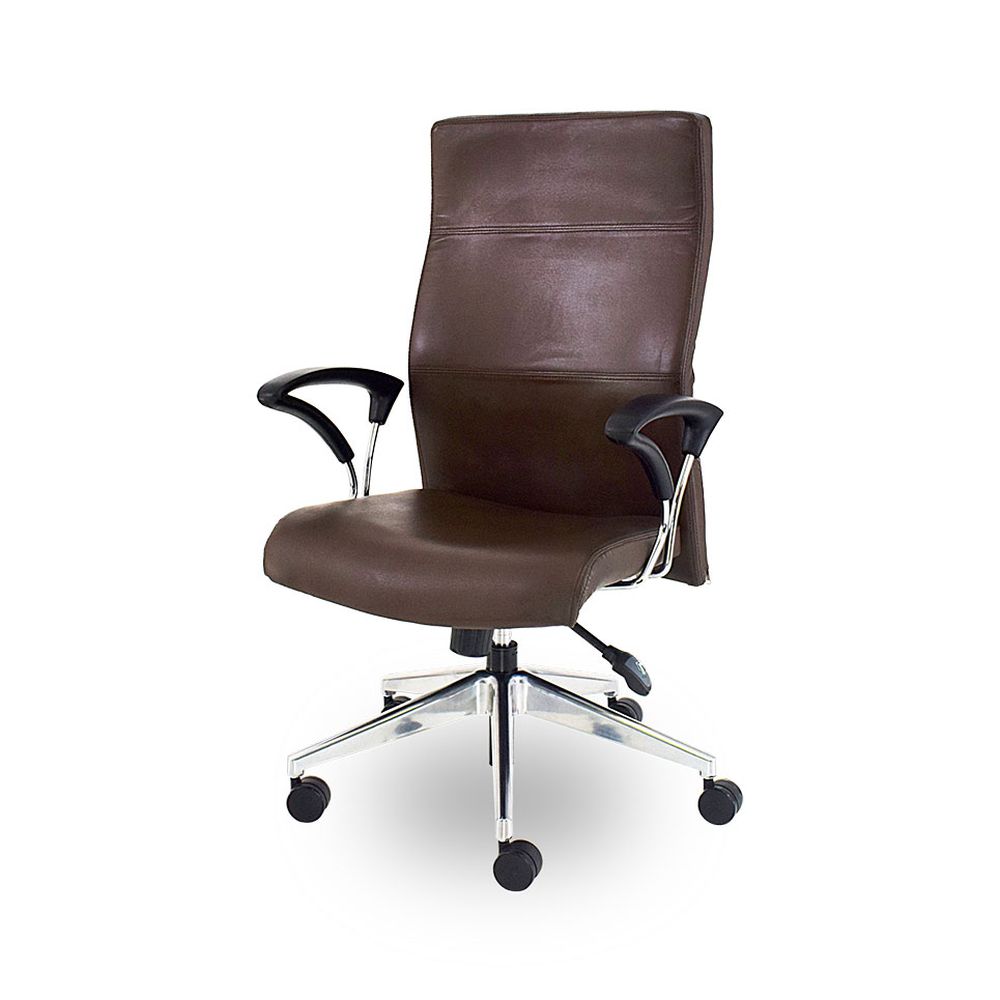

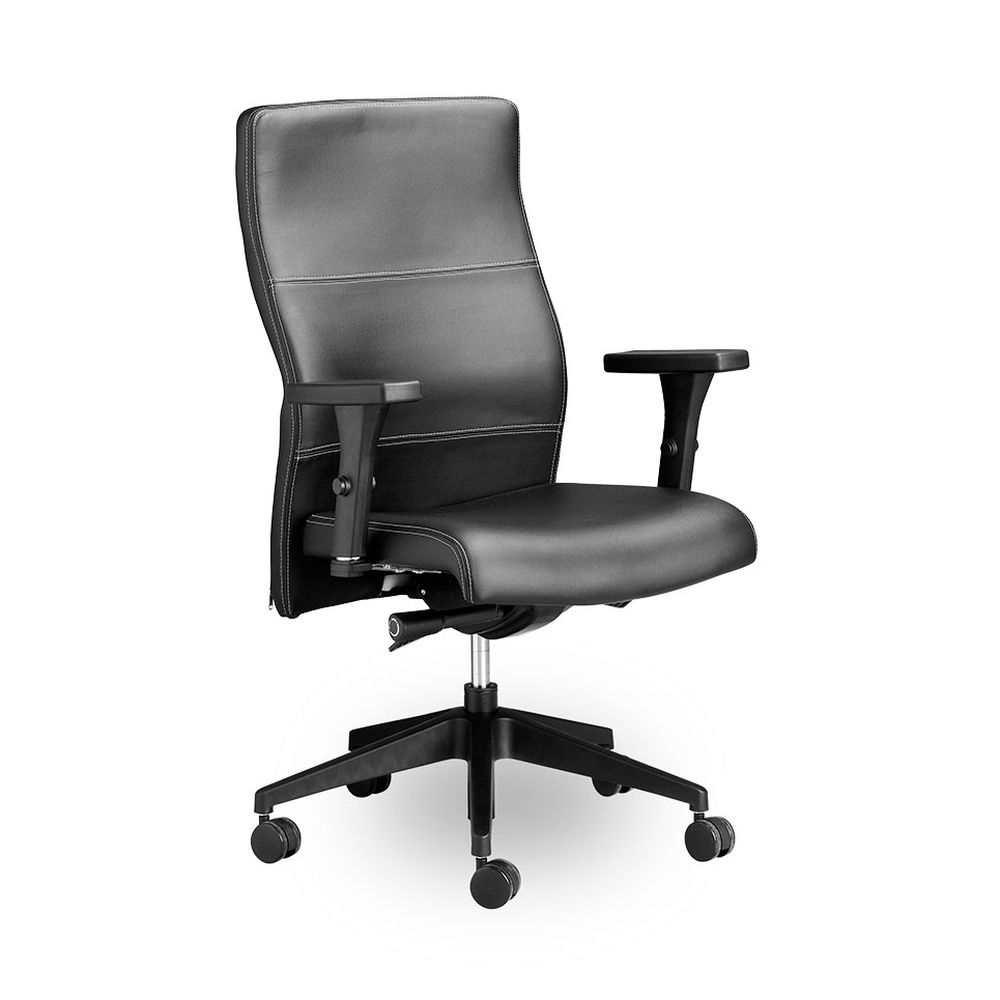

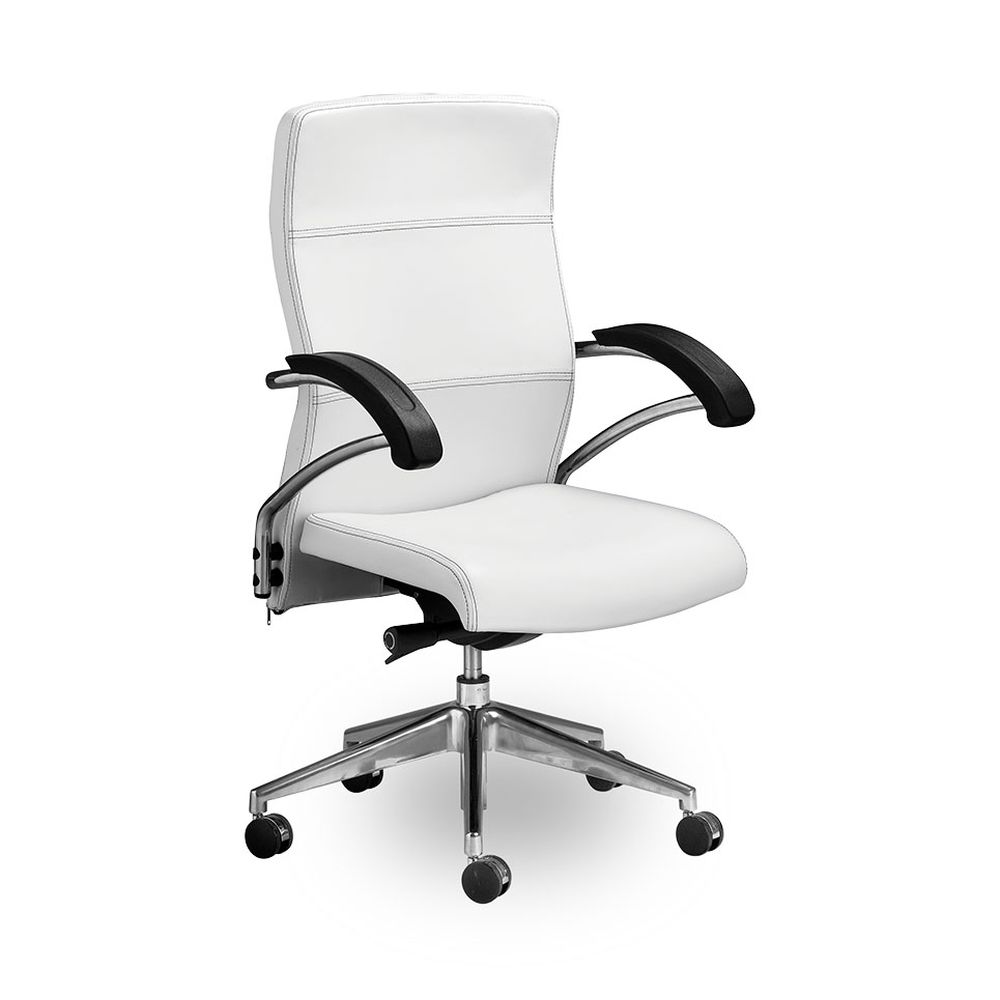

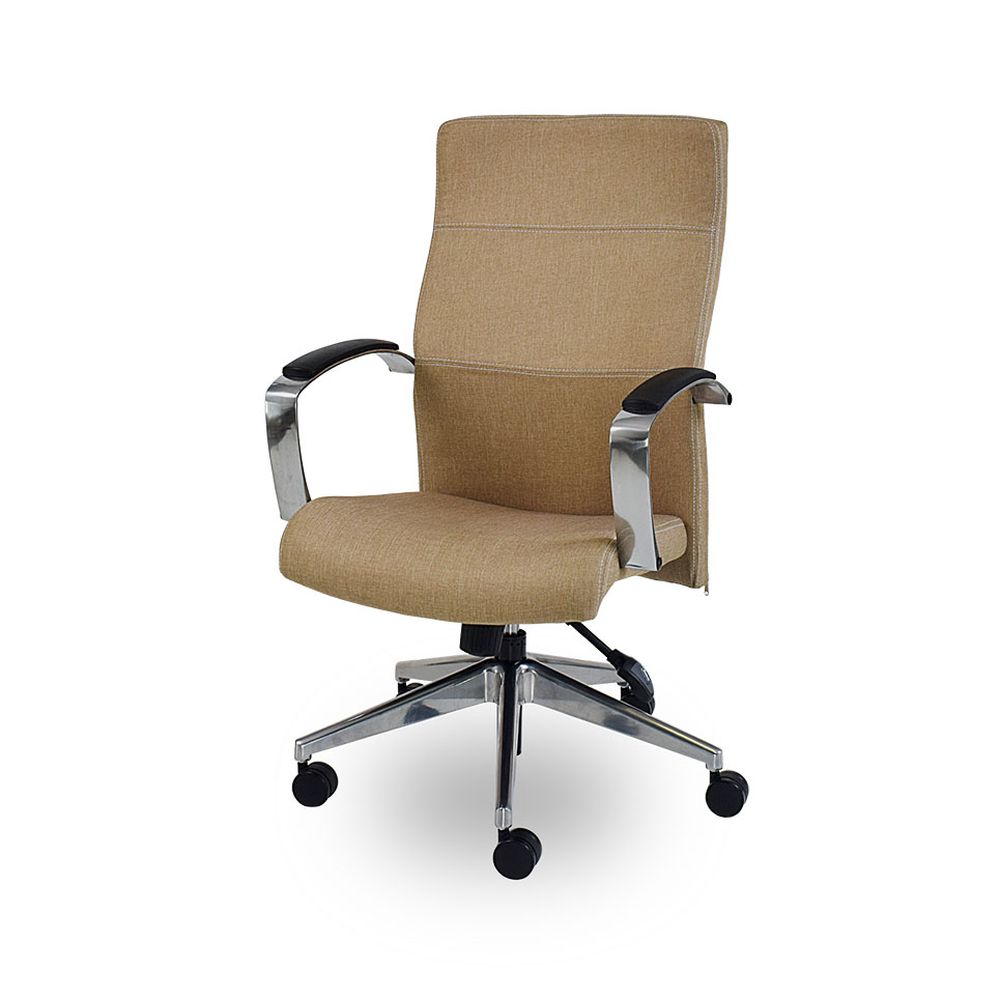

GC5 – Mid Back
Use the same mechanism, spindle, base, seat & back rest

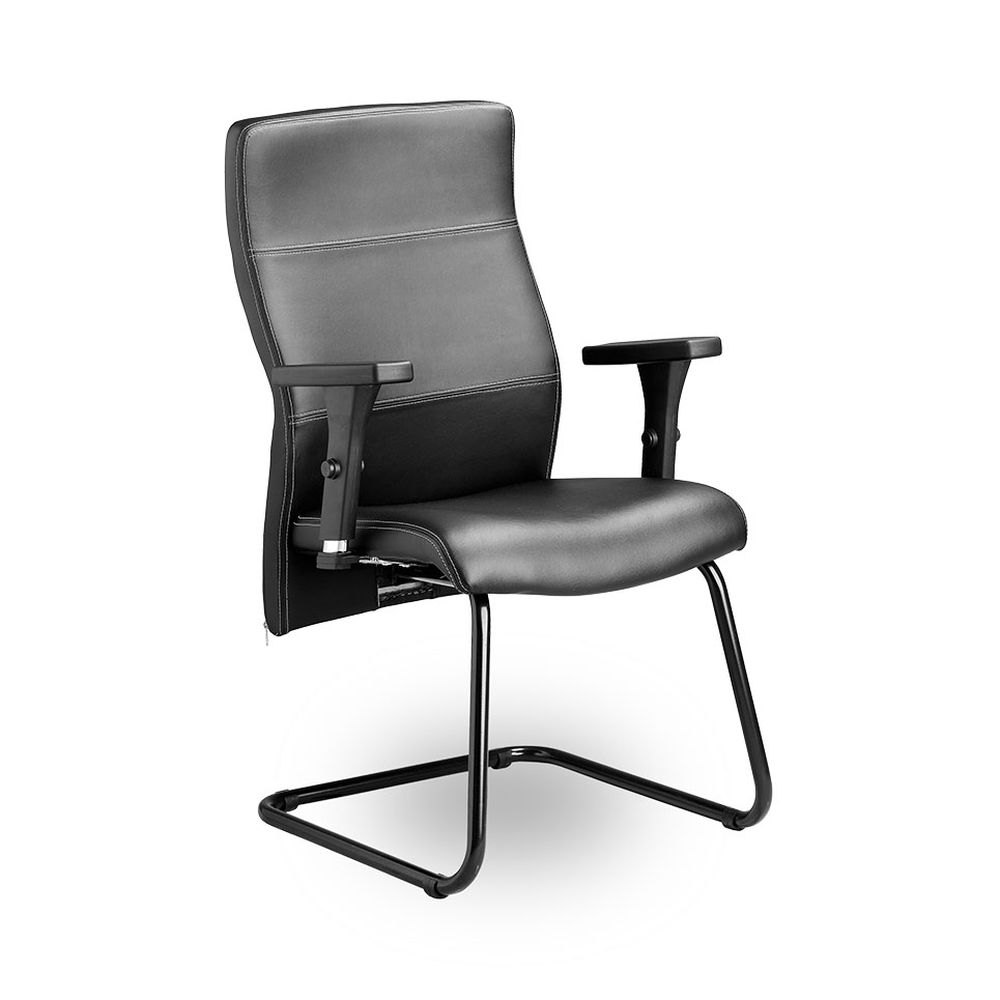

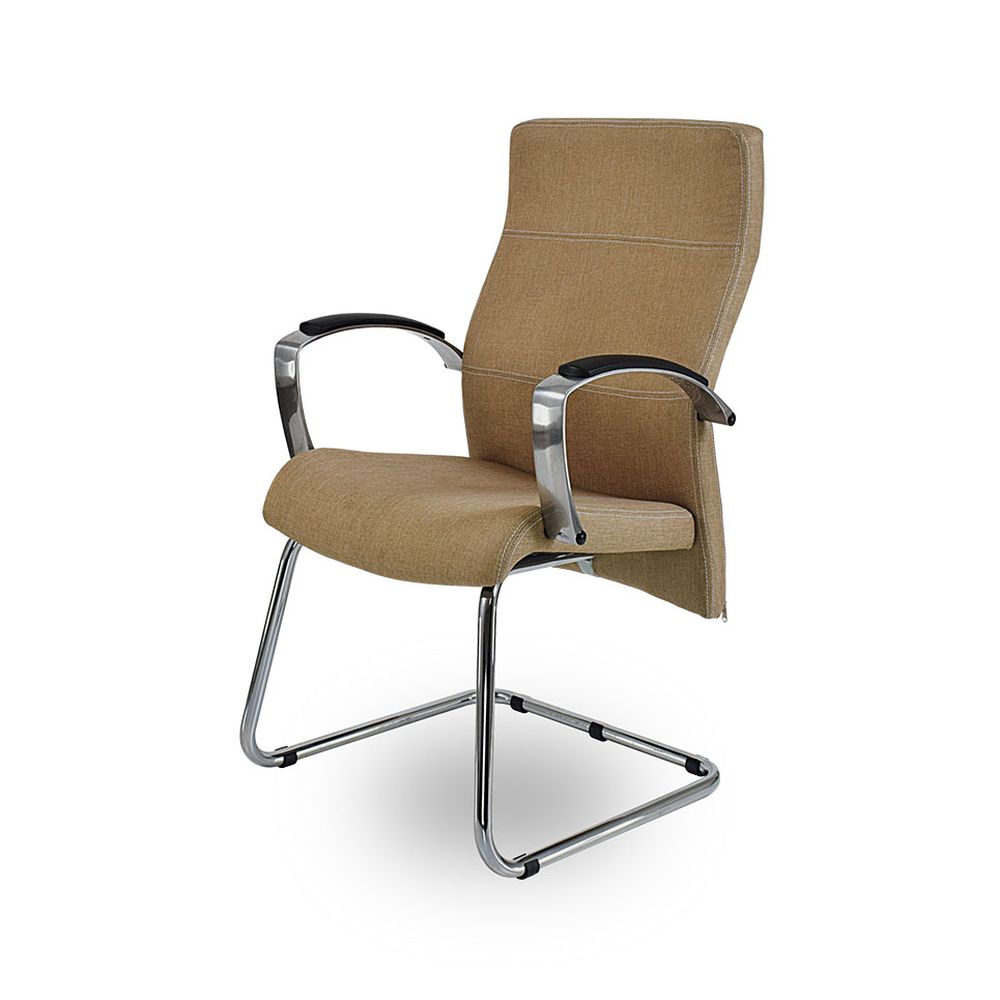

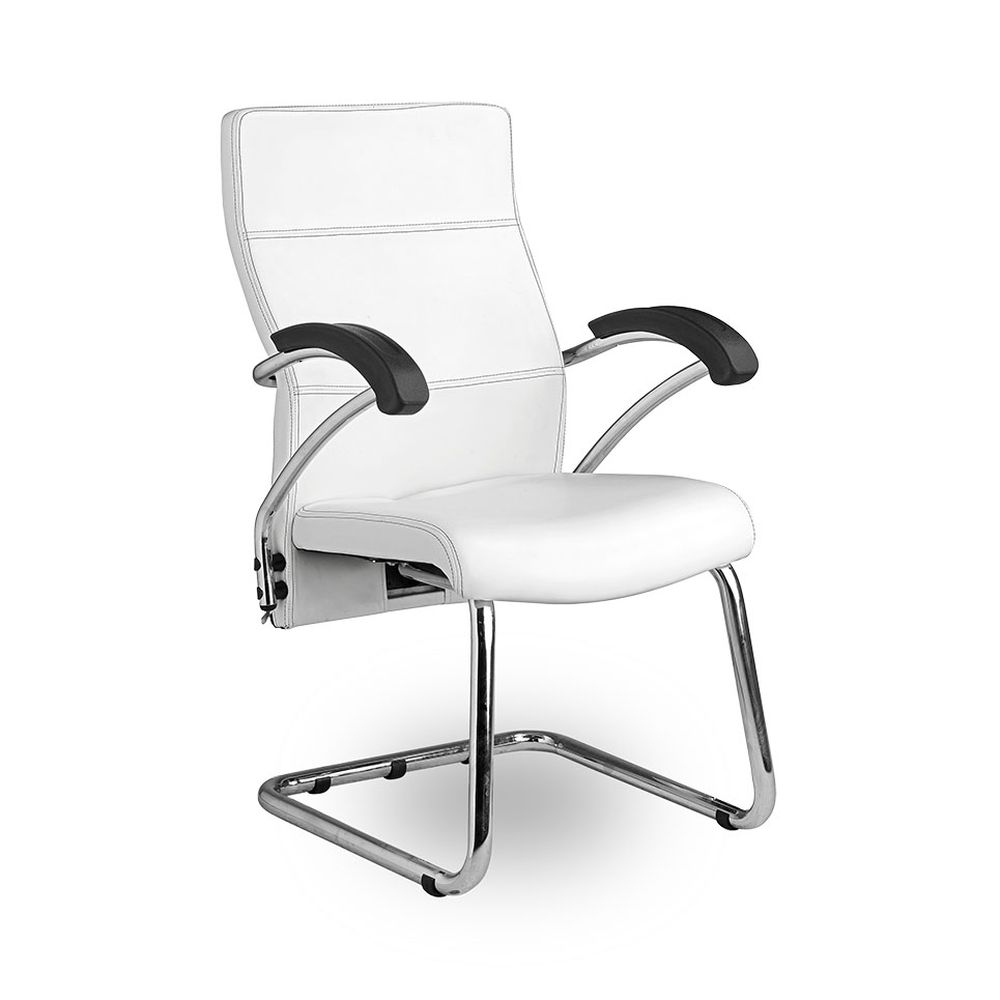

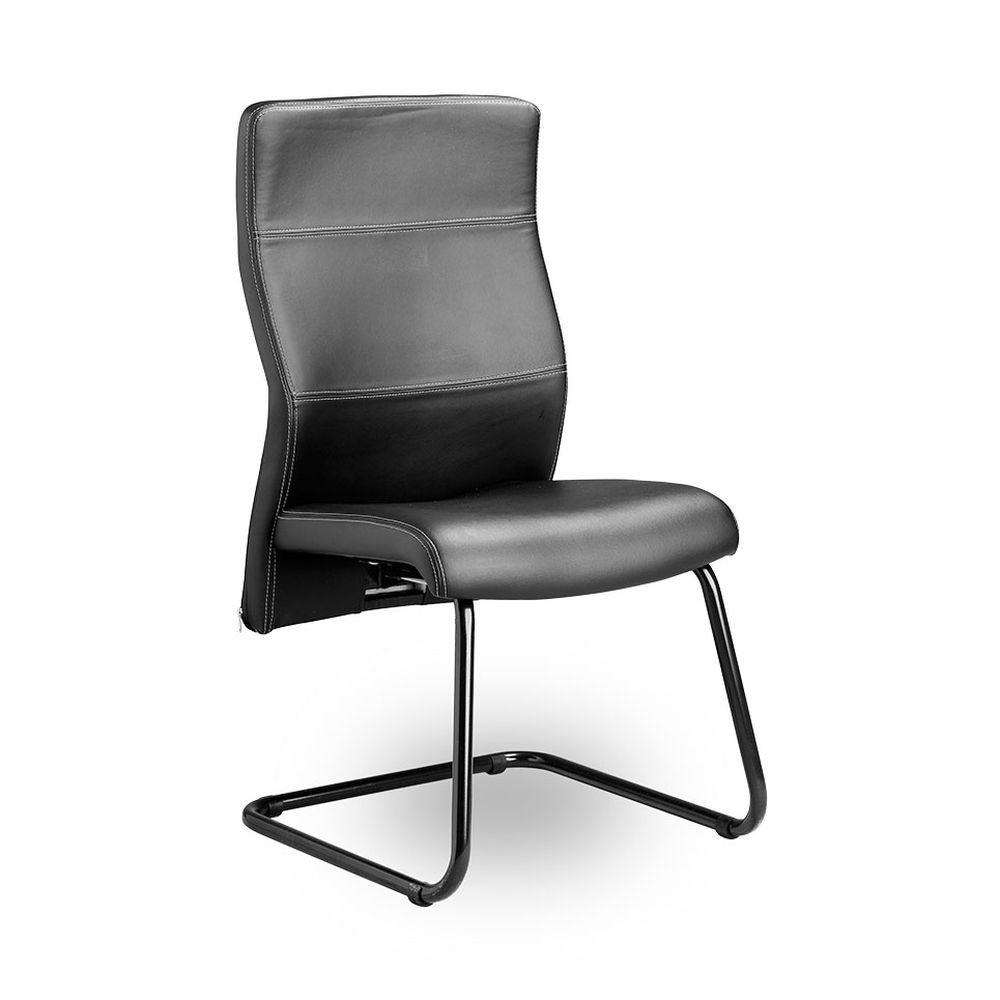

GC2 – Visitors Chair
Use the same seat & back rest
25mm Round tubing sleigh base frame
Cold rolled steel with 2.5mm wall thickness
Fabric Ranges
Range 1 – Range 11
View Available Fabrics
Mechanism
Base Options
