| Seats | One Seater, Two Seater, Three Seater, Four Seater, Five Seater |
|---|---|
| Seat Arms | With Arms, No Arms |
| Fabric Ranges | Range 1 COM, Range 3 |
Recepetion

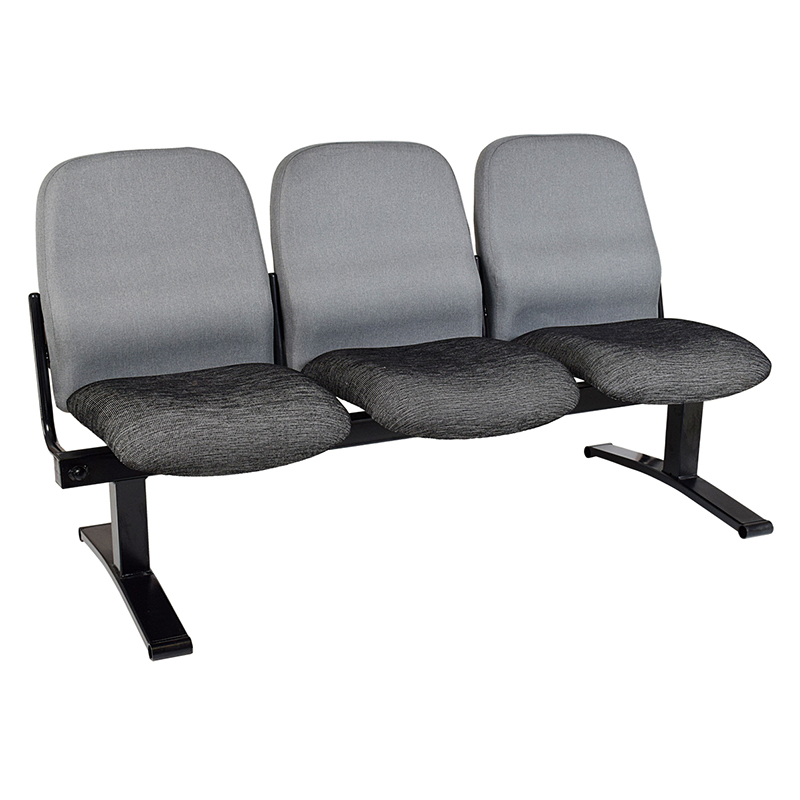

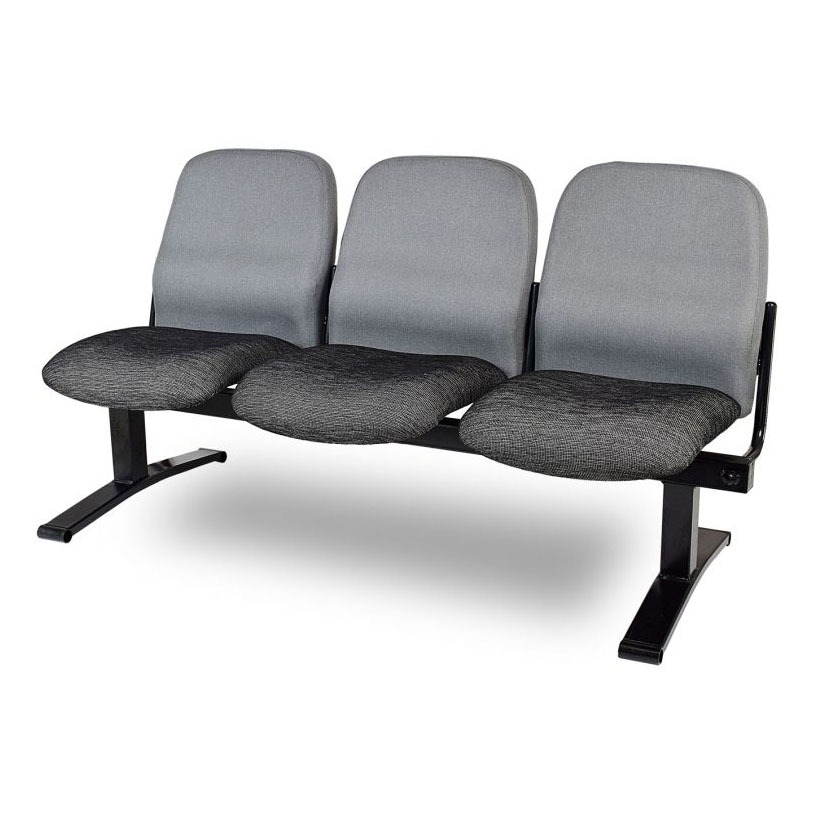

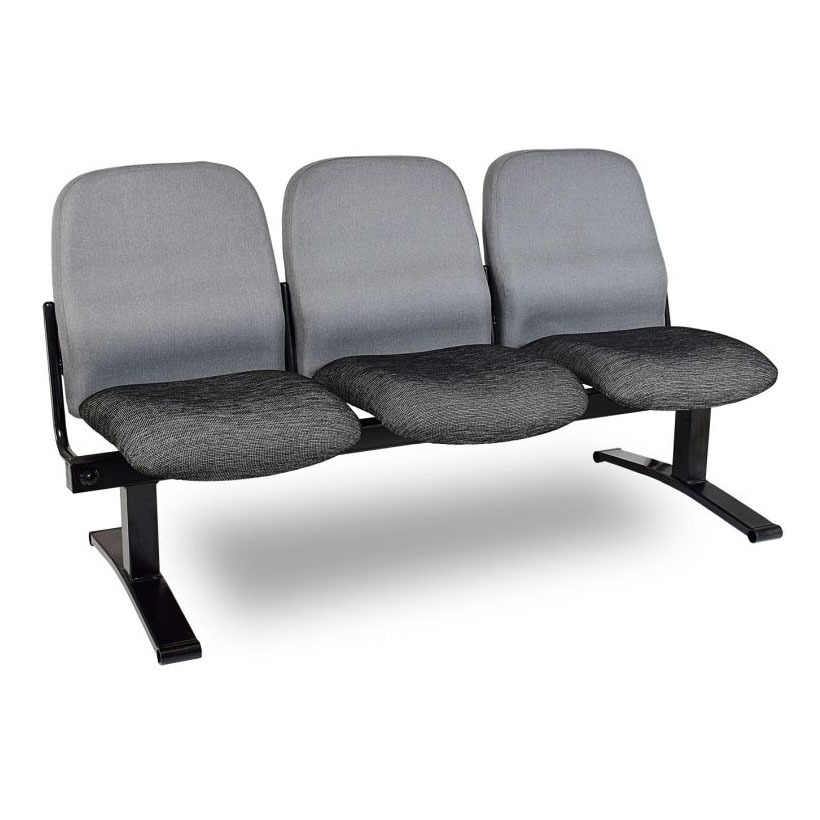

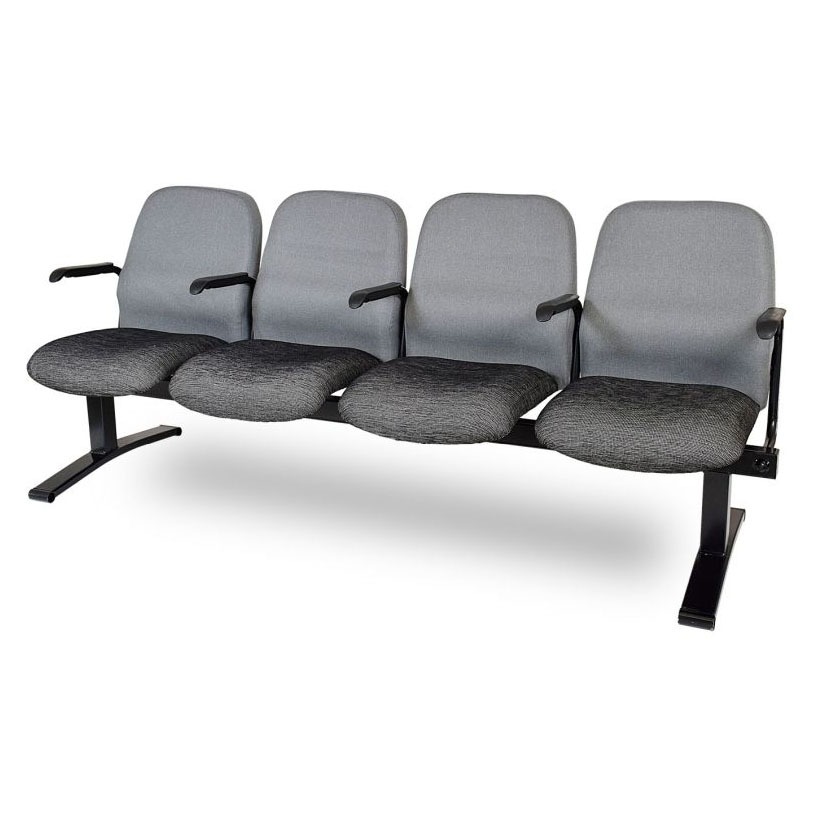

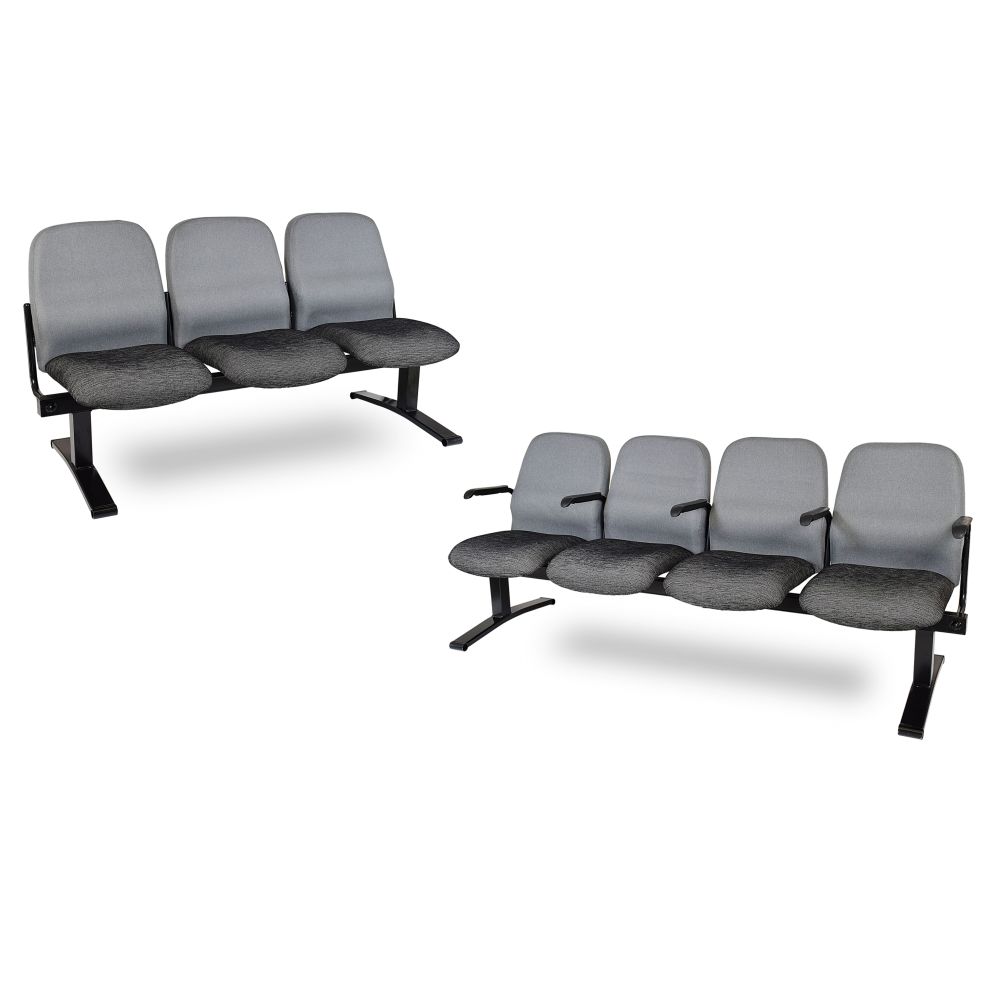

Free Standing Reception Unit
The Reception Range offers a practical and comfortable seating solution for waiting areas and public spaces. With its sturdy beam structure and cushioned seats, it ensures durability and ease of maintenance in high-traffic environments.
Dimensions
| RBLA-S1 | RBLA-S2 | RBLA-S3 | RBLA-S4 | AUD2A-S5 | |
| Overall Height | 860mm | 860mm | 860mm | 860mm | 870mm |
| Overall Width | 580mm | 1105mm | 1625mm | 2145mm | 2665mm |
| Overall Depth | 650mm | 650mm | 650mm | 650mm | 680mm |
| Total Weight | 23kg | 29kg | 36kg | 44kg | 53kg |
| Overall Height | 480mm | 480mm | 480mm | 480mm | 480mm |
| RBL-S1 | RBL-S2 | RBL-S3 | RBL-S4 | AUD2-S5 | |
| Overall Height | 860mm | 860mm | 860mm | 860mm | 860mm |
| Overall Width | 580mm | 1105mm | 1625mm | 2145mm | 2665mm |
| Overall Depth | 650mm | 650mm | 650mm | 650mm | 650mm |
| Total Weight | 21kg | 26kg | 32kg | 39kg | 47kg |
| Overall Height | 480mm | 480mm | 480mm | 480mm | 460mm |
Specifications
Foot
76 x 25mm Rectangular tubing – Cold rolled steel with 3mm wall thickness
Leg
60mm Square tubing – Cold rolled steel with 2mm wall thickness
Beam
60mm Square tubing – Cold rolled steel with 2mm wall thickness
Seat Bracket
230 x 220mm Flat steel – Cold rolled steel with 3mm thickness
Back Rest Stay
25mm Round tubing – Cold rolled steel with 2.5mm wall thickness
Seat
Pressed plywood
VP70 high density foam
Back
Pressed plywood
VP30 medium density foam
Arms rest – Standard
Plastic arm fitted to frame
