| Chair Style | High Back, Mid Back, Integral, Side Chair |
|---|---|
| Arm Variants | No Arms, Y55, Y75, Y100, Y200, Y300, Y310, Y320, Y350, Y400, Y420, Y500, Y600, Y800 |
Executive, New Ranges

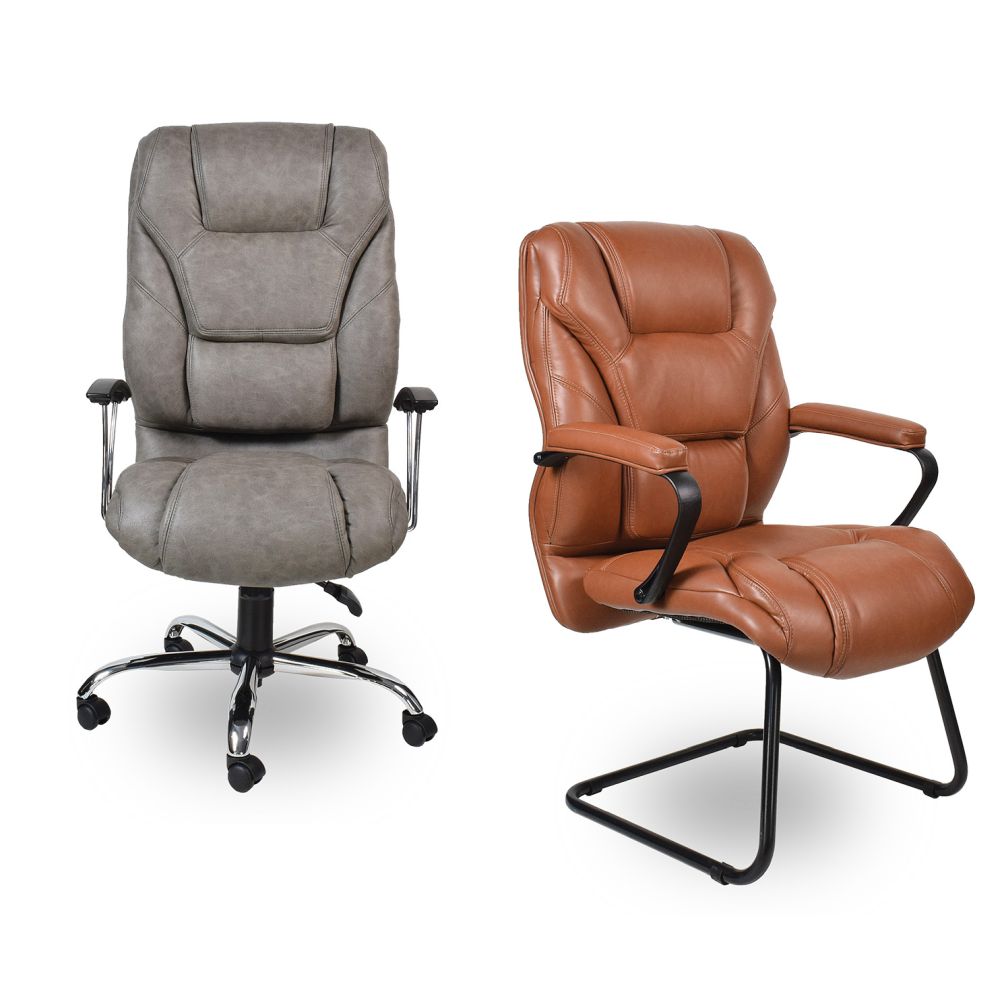

Bartolomeu Dias Range
The Bartolomeu Dias Range combines durability with plush upholstery to deliver exceptional comfort and support, making it ideal for even the most demanding work environments.
Movements
Dimensions
| BDC6 | BDC5 | BDC2 | |
| Overall Height | 1200mm | 1060mm | 1080mm |
| Overall Width | 620mm | 620mm | 640mm |
| Overall Depth | 720mm | 720mm | 760mm |
| Total Weight | 25kg | 23kg | 21kg |
| Seat Lowest | 510mm | 510mm | 510mm |
| Seat Highest | 610mm | 610mm | 510mm |
Specifications

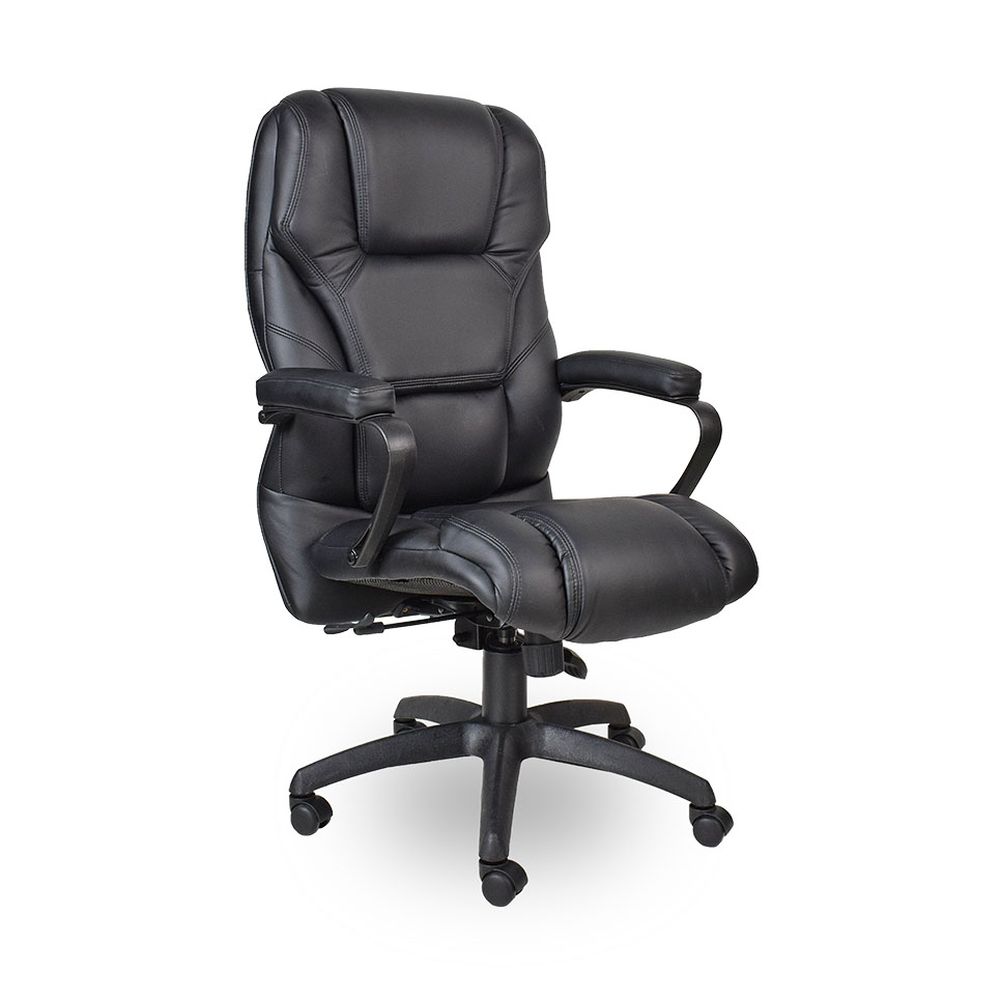

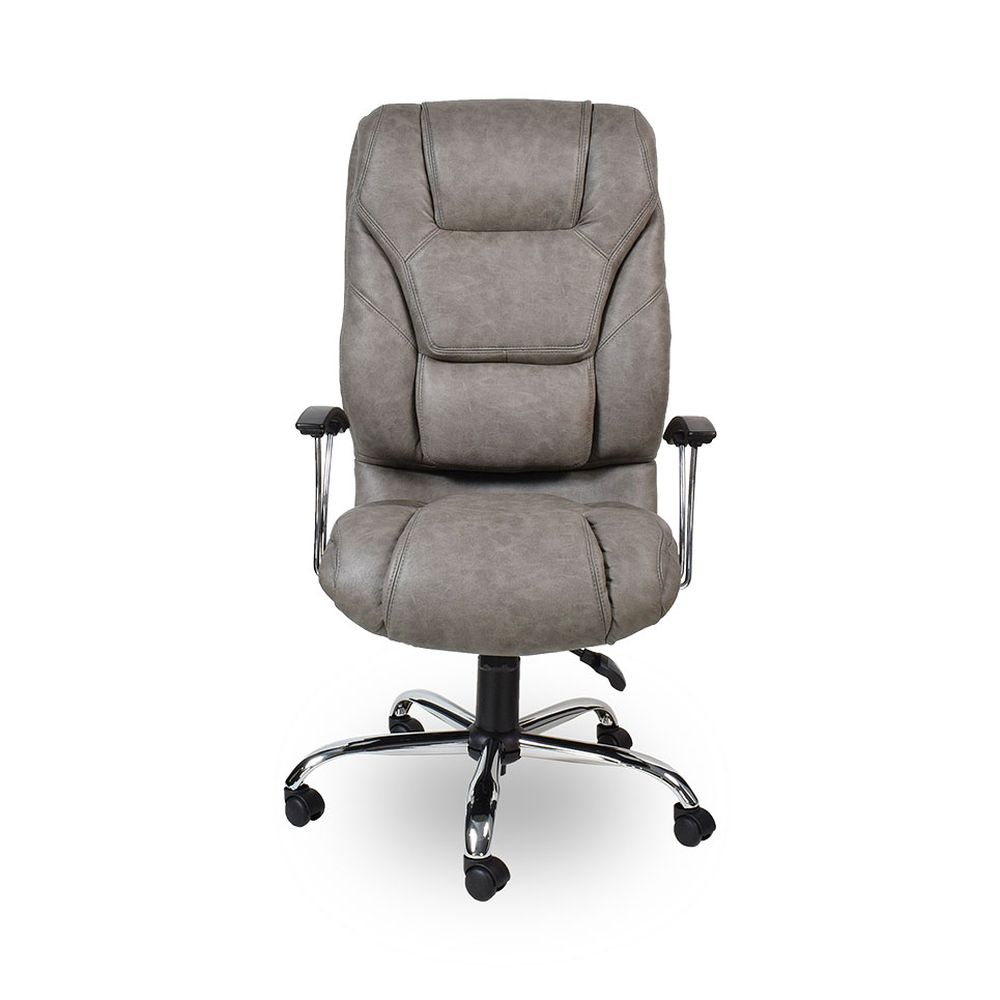

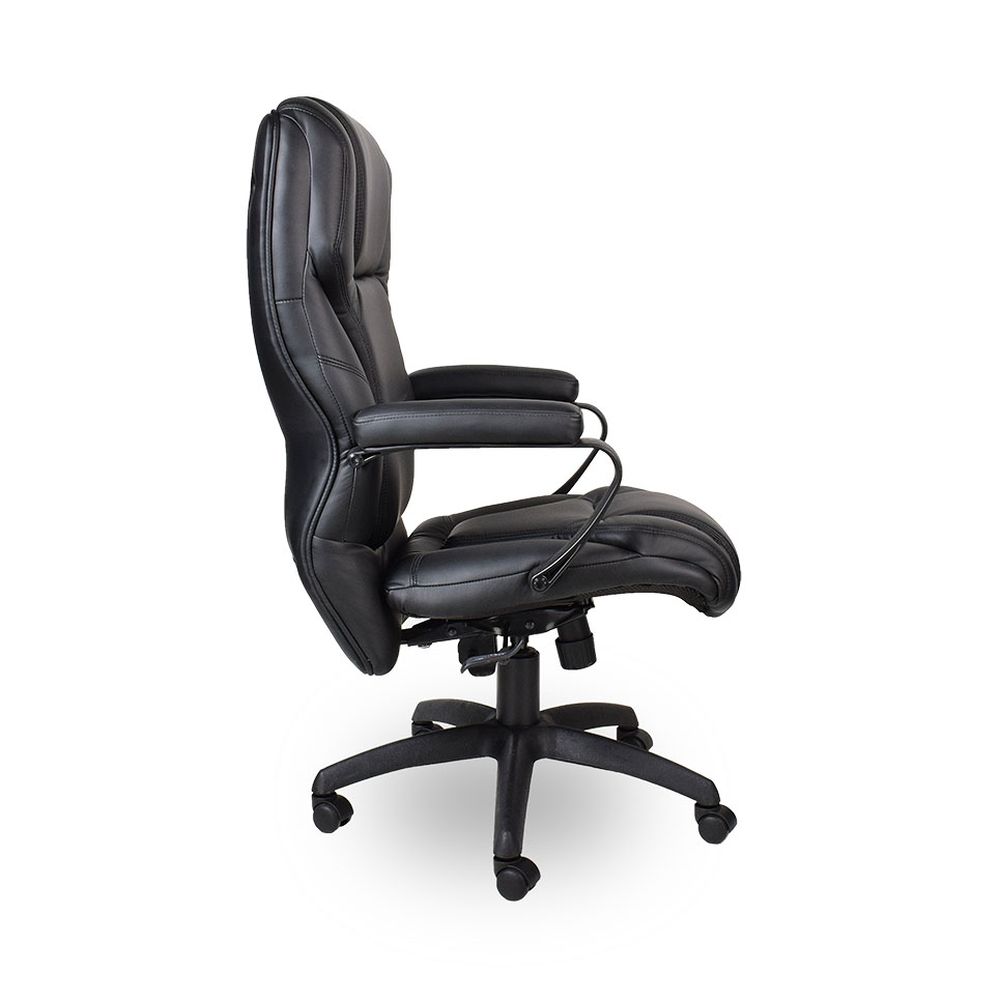

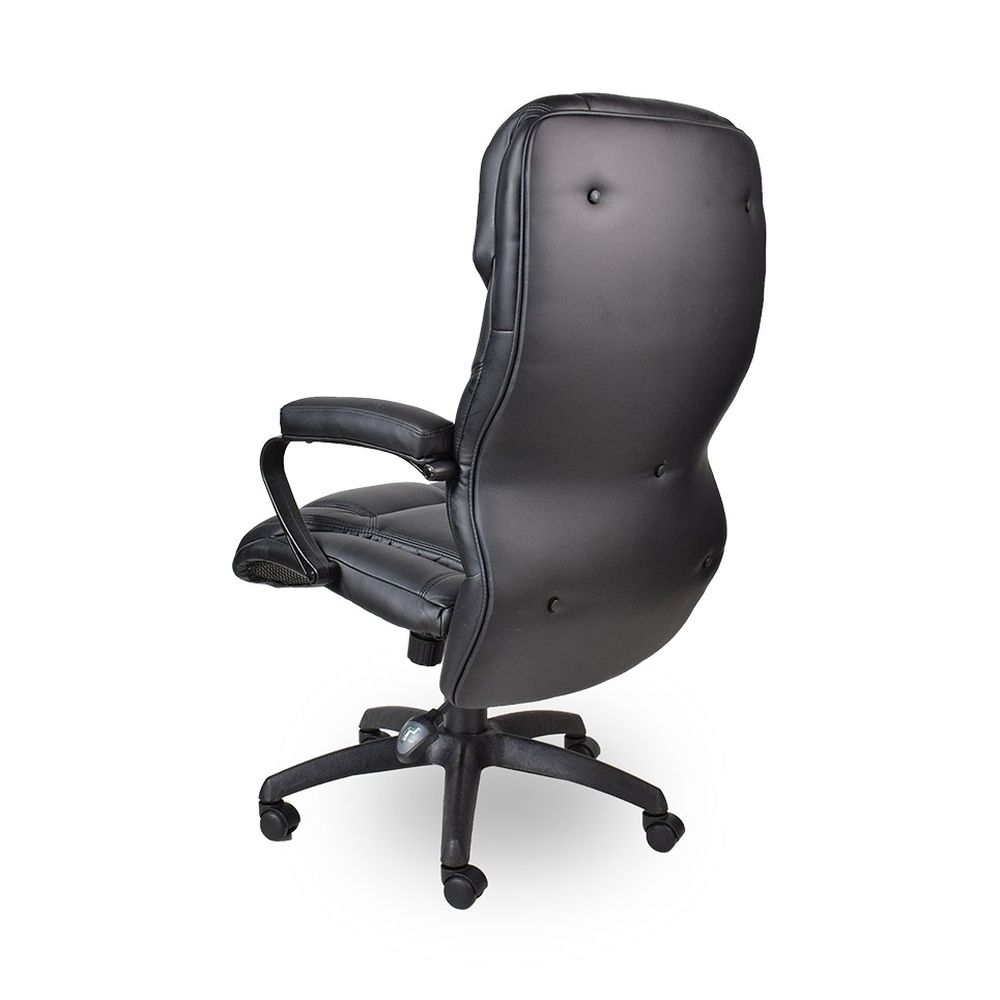

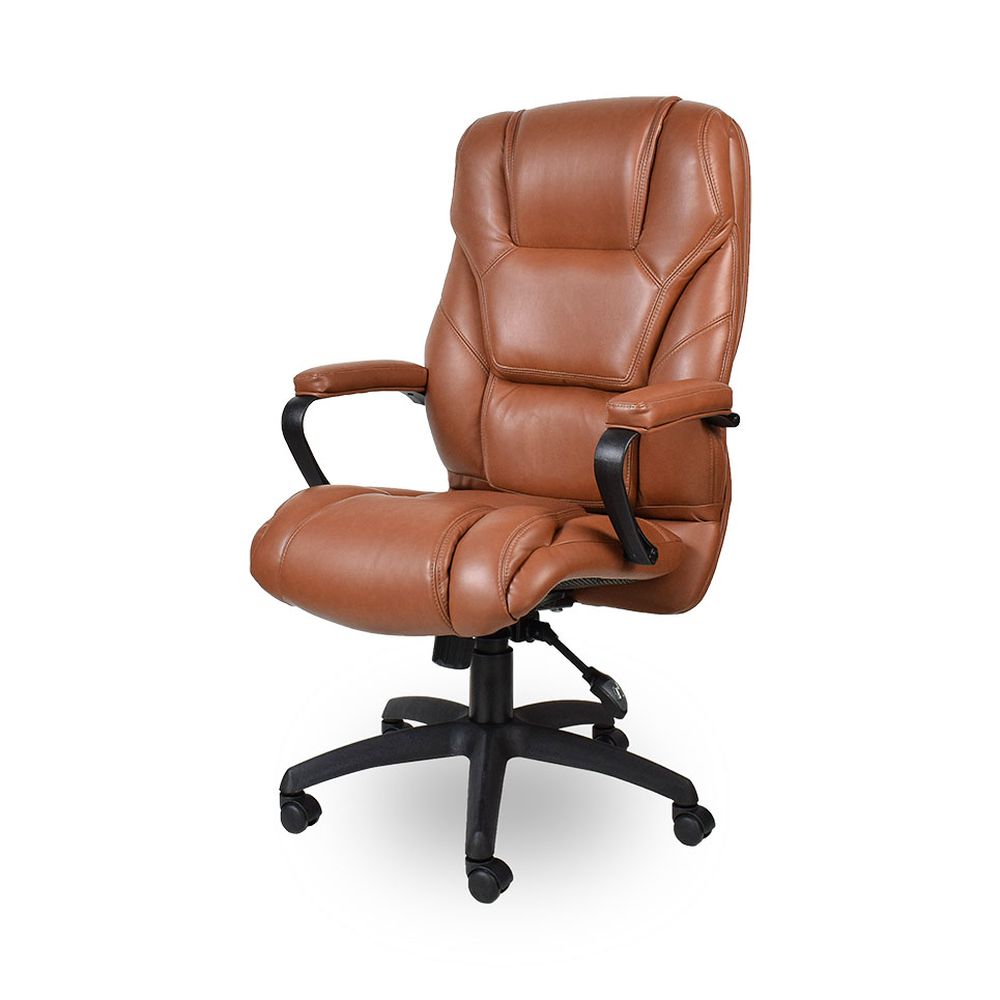

BDC6 – High Back
Mechanism
Synchro lock mechanism with back tension adjustment
Right hand controls –
Height adjustment lever
Left hand controls –
Pull lever upwards for constant back contact – free floating –
Gas Spindle
Push lever downwards to lock back in any position
Executive single taper – Class 4
Base
700mm Nylon base with 50mm hooded castors
Option of Chrome base
Seat
Pressed plywood
Laminated VC64 chip foam and VP70 high density foam
Back
Pressed plywood
VP30 medium density foam
Upholstered pressed plywood back cover

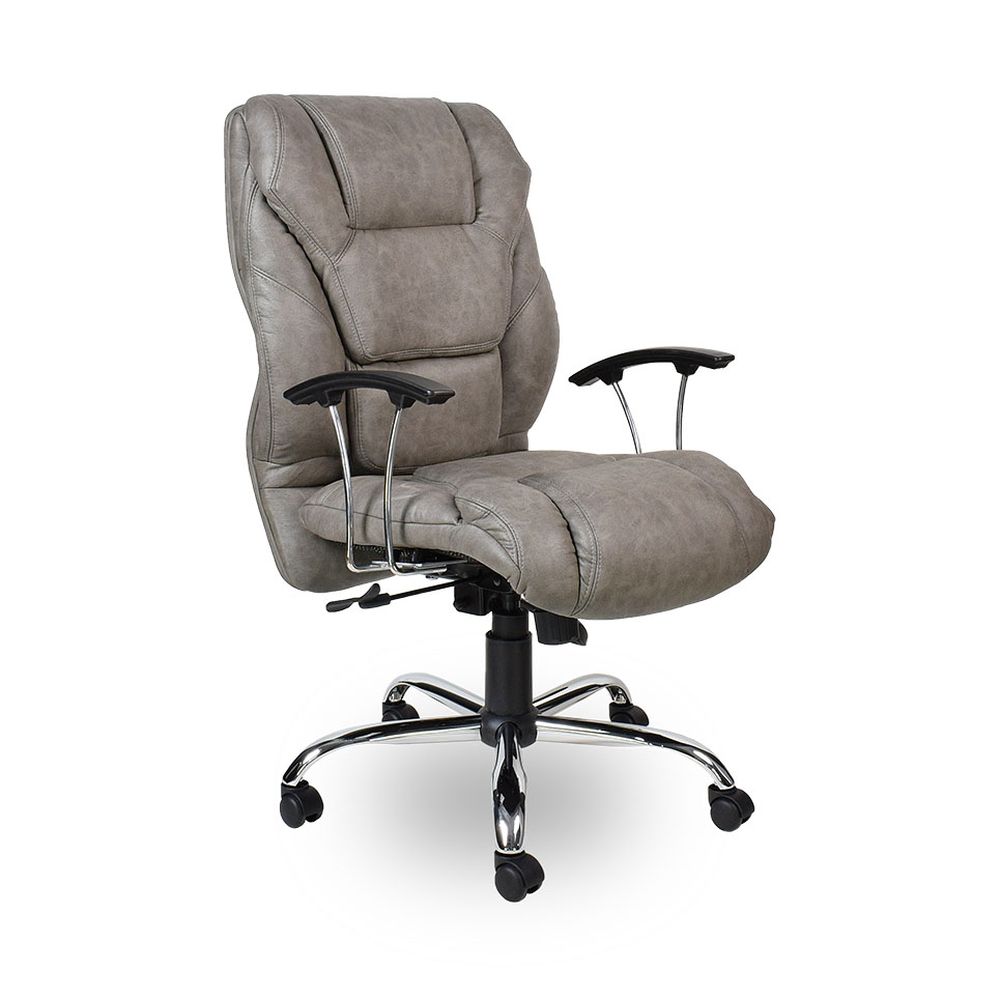

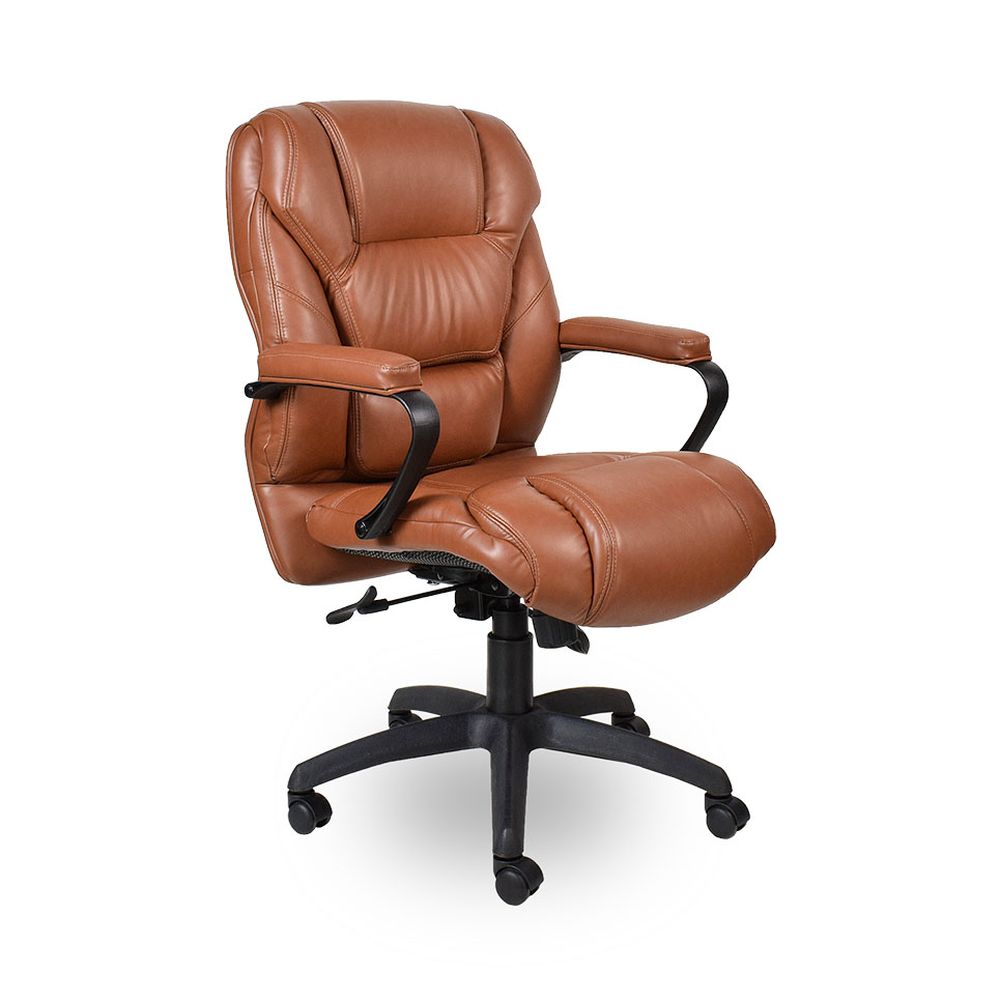

BDC5 – Mid back
Use the same mechanism, spindle, base, seat & back rest
Option of arms

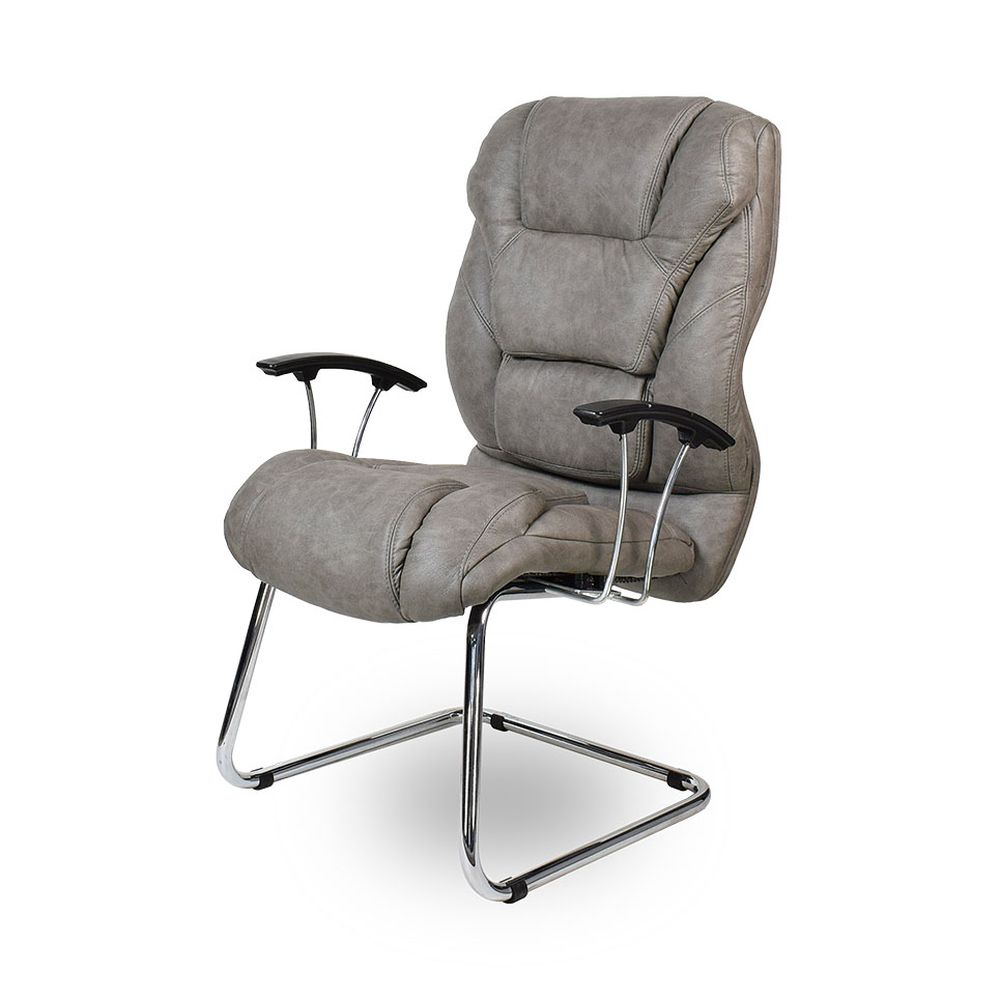

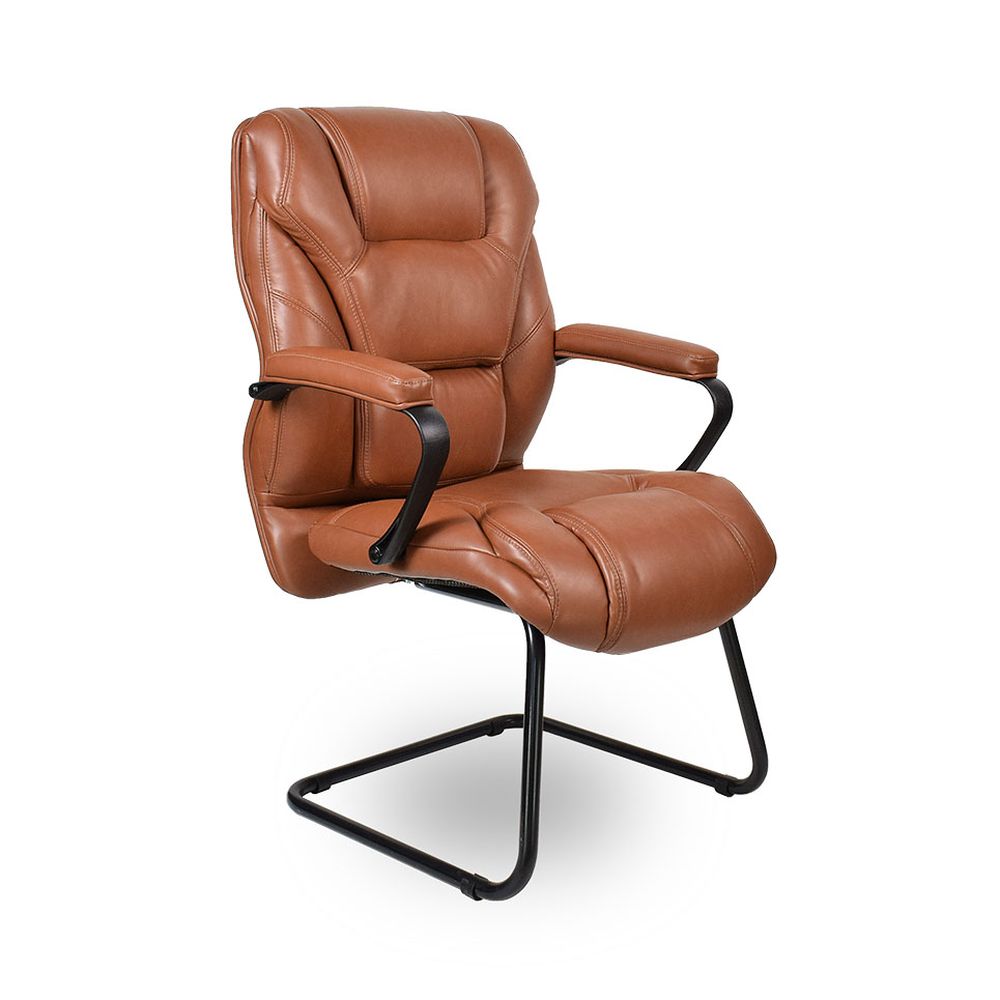

BDC2 – Visitors chair
Use the same seat & back rest
25mm Round tubing sleigh base frame – Cold rolled steel with 2.5mm wall thickness
Option of arms
Fabric Ranges
Range 1, Range 3, Range 10 and Range 11
View Available Fabrics
Mechanism
Base Options
