| Seats | One Seater, Two Seater, Three Seater, Four Seater, Five Seater |
|---|---|
| Seat Arms | With Arms, Arms with Top, No Arms |
Auditorium

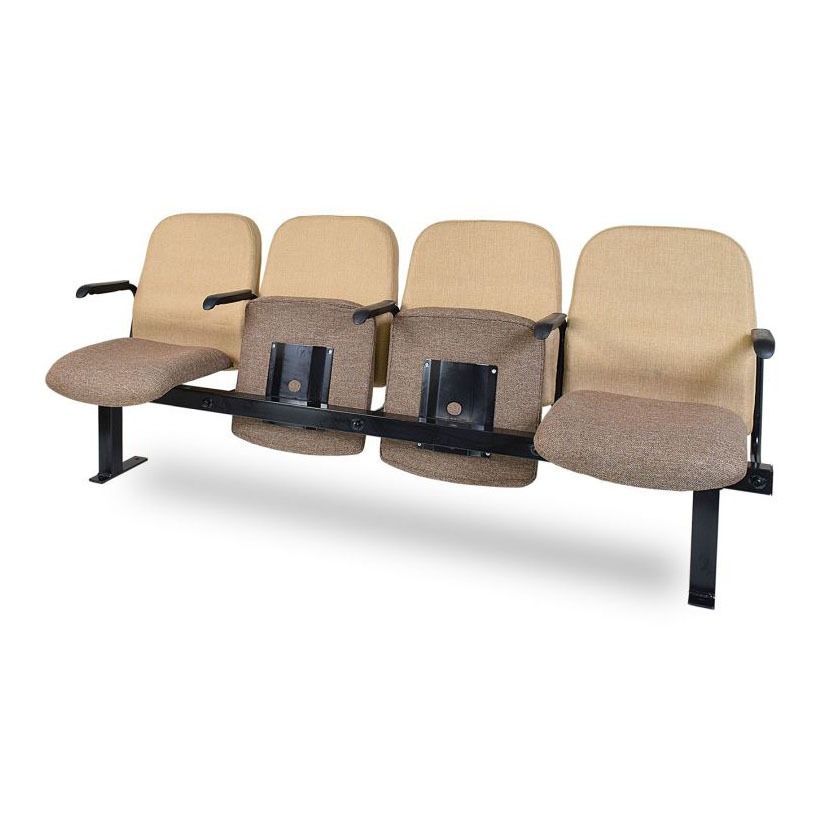

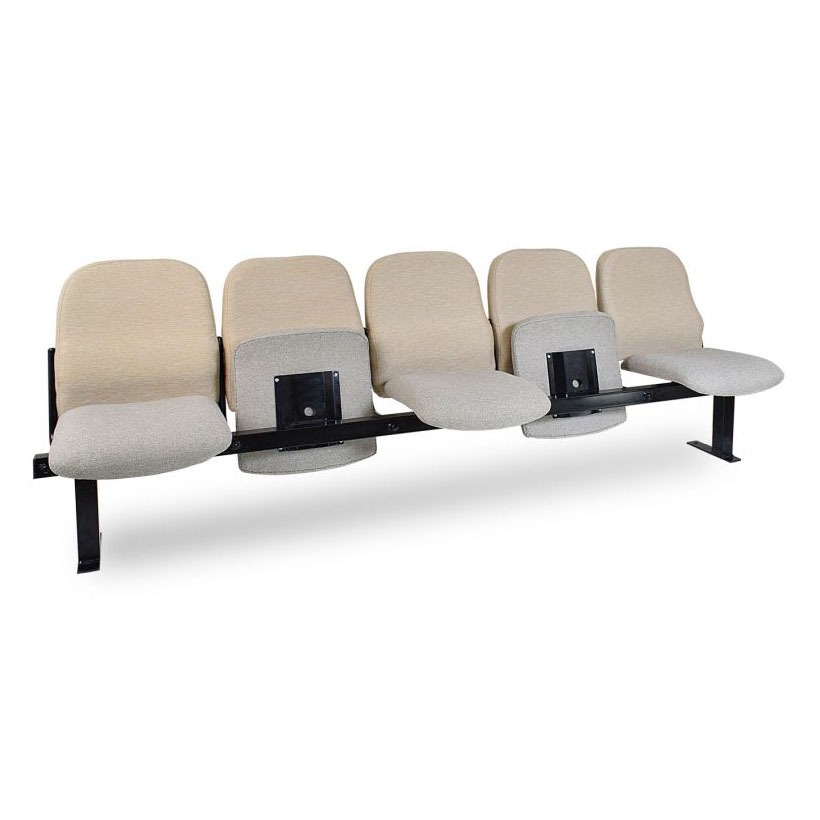

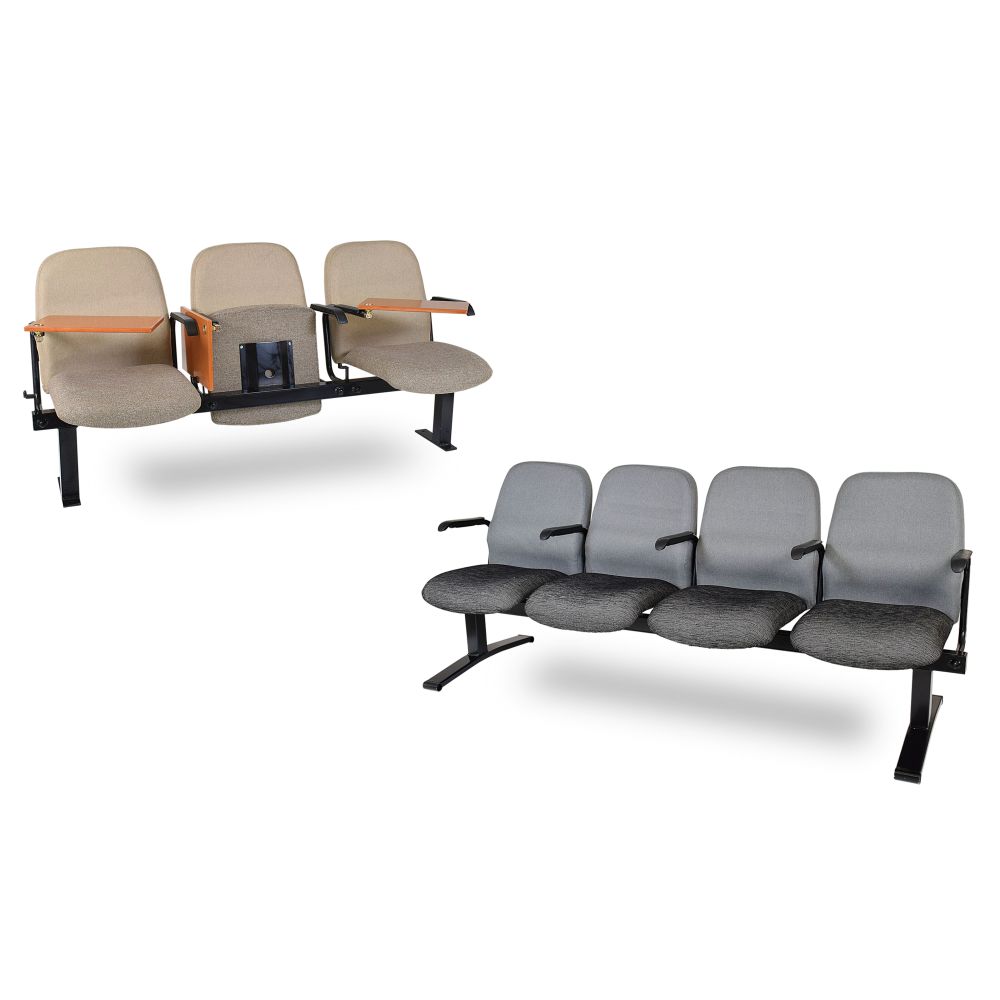

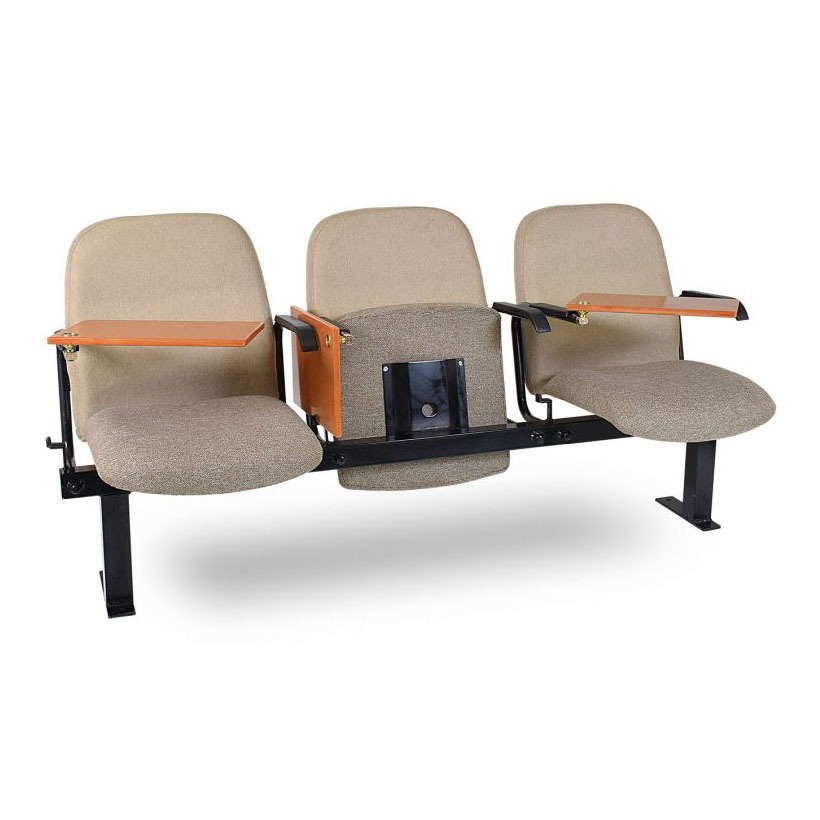

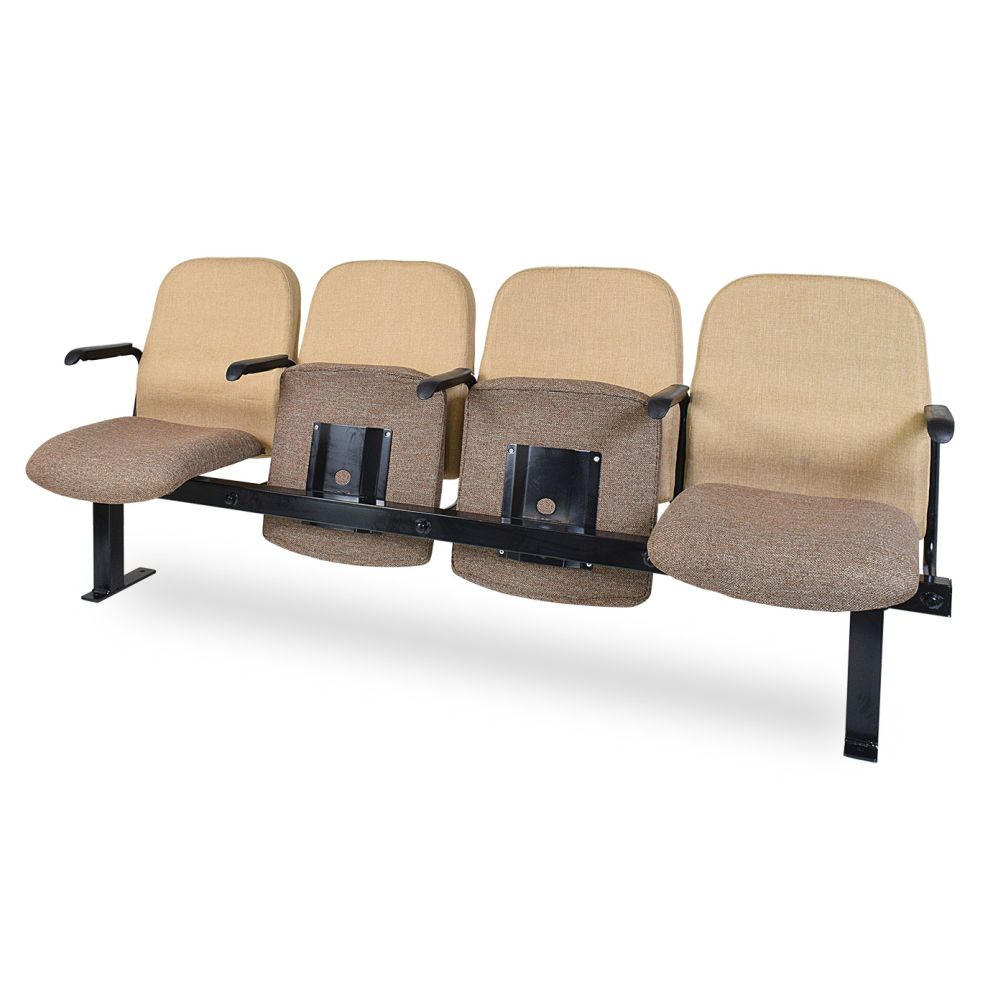

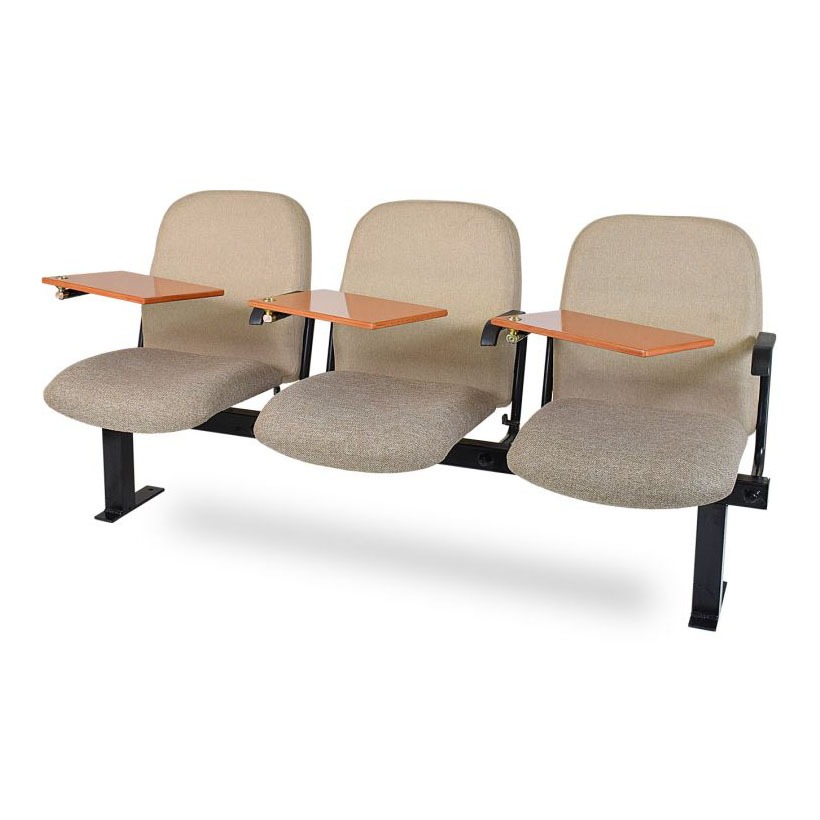

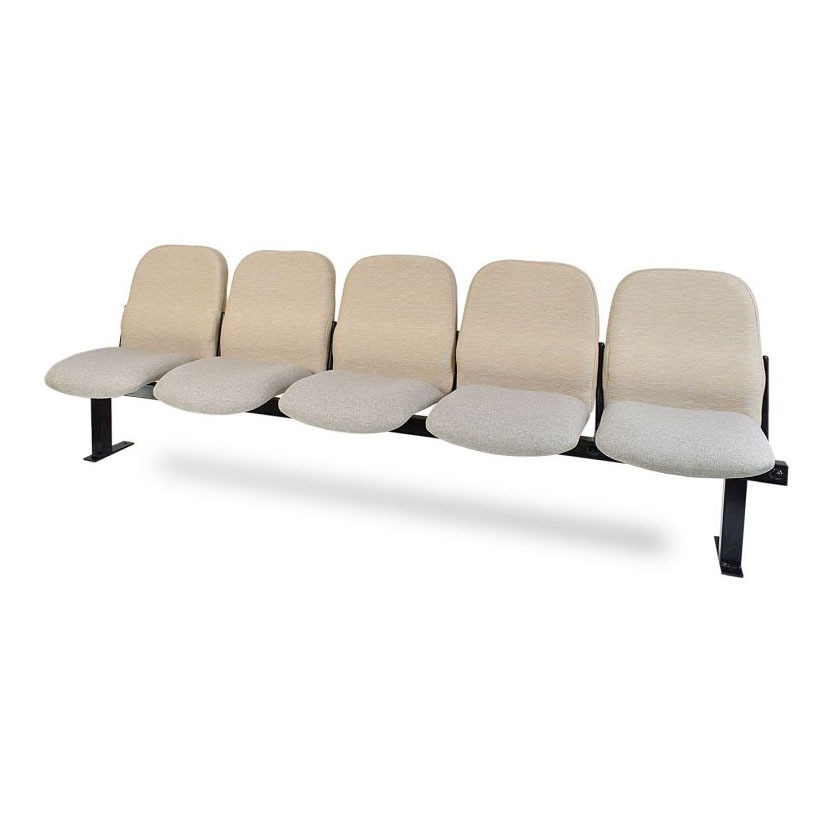

Auditorium Seating
The Auditorium Range is designed for lecture halls, conference rooms, and training venues, offering a fixed seating solution with a clean, professional look. Options include writing tablets and durable finishes to suit various educational and corporate environments.
Dimensions
| AUD2A-S1 | AUD2A-S2 | AUD2A-S3 | AUD2A-S4 | AUD2A-S5 | |
| Overall Height | 870mm | 870mm | 870mm | 870mm | 870mm |
| Overall Width | 580mm | 1105mm | 1625mm | 2145mm | 2665mm |
| Overall Depth | 680mm | 680mm | 680mm | 680mm | 680mm |
| Total Weight | 20kg | 26kg | 33kg | 41kg | 50kg |
| Overall Height | 460mm | 460mm | 460mm | 460mm | 460mm |
| AUD2-S1 | AUD2-S2 | AUD2-S3 | AUD2-S4 | AUD2-S5 | |
| Overall Height | 860mm | 860mm | 860mm | 860mm | 860mm |
| Overall Width | 580mm | 1105mm | 1625mm | 2145mm | 2665mm |
| Overall Depth | 640mm | 640mm | 640mm | 640mm | 640mm |
| Total Weight | 18kg | 23kg | 29kg | 36kg | 44kg |
| Overall Height | 460mm | 460mm | 460mm | 460mm | 460mm |
| AUD2-T-S1 | AUD2-T-S2 | AUD2-T-S3 | AUD2-T-S4 | |
| Overall Height | 870mm | 870mm | 870mm | 860mm |
| Overall Width | 580mm | 1105mm | 1625mm | 2145mm |
| Overall Depth | 680mm | 680mm | 680mm | 680mm |
| Total Weight | 22kg | 29kg | 38kg | 47kg |
| Overall Height | 460mm | 460mm | 460mm | 460mm |
Specifications
Foot plate
60 x 8mm Flat bar – Cold rolled
Leg
60mm Square tubing – Cold rolled steel with 2mm wall thickness
Beam
60mm Square tubing – Cold rolled steel with 2mm wall thicknessSeat Bracket
230 x 220mm Flat steel – Cold rolled steel with 3mm thickness
Back Rest Stay
25mm Round tubing – Cold rolled steel with 2.5mm wall thickness
Seat
Pressed plywood
VP70 high density foam
Standard with tip-up action
Back
Pressed plywood
VP30 medium density foam
Arms rest – Standard
Plastic arm fitted to frame
Writing tabloid
16mm Supawood – 405mm long x 260mm wide
Machined mild steel ¾ inch collar and bush
Machined mild steel swivel tabloid connecting hinge
25 x 5mm Flat bar tabloid support welded to beam
Fabric Ranges
Range 1 – Range 11
