| Back Options | With Back, Without Back |
|---|
Dental

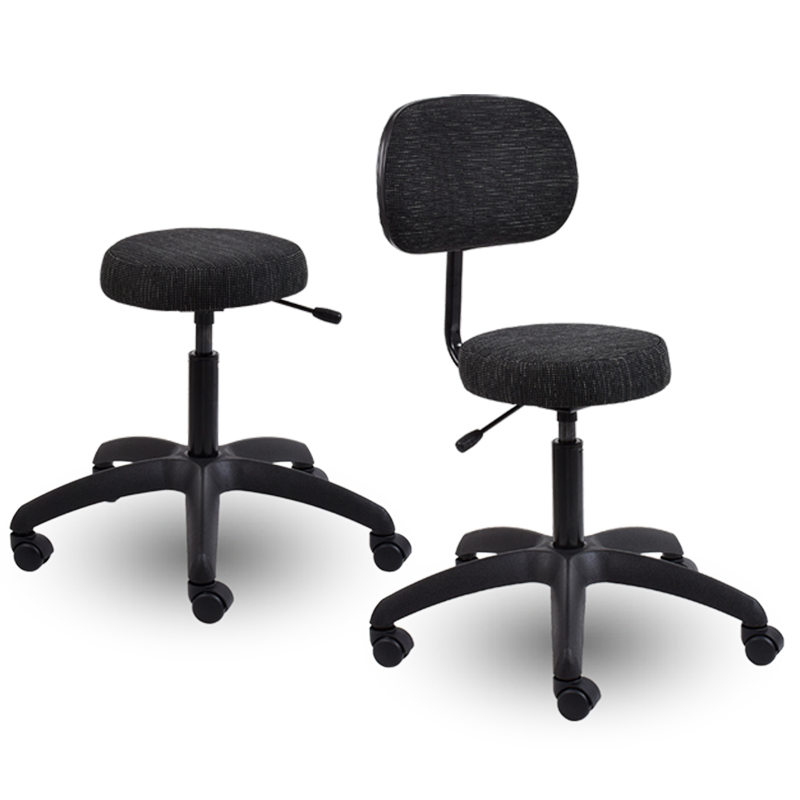

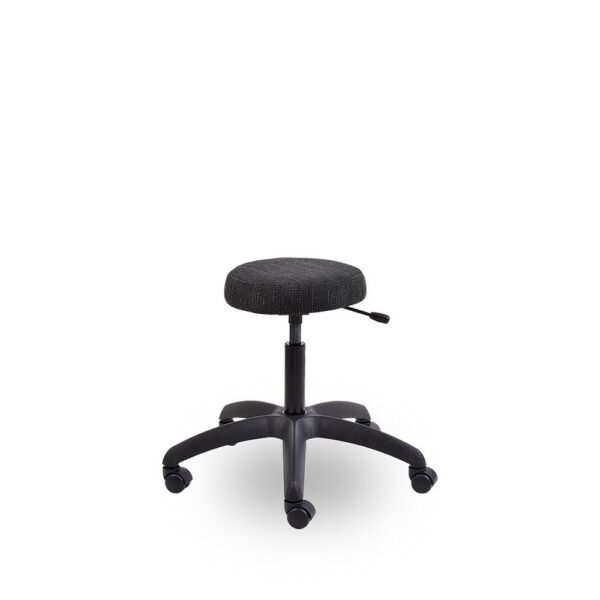

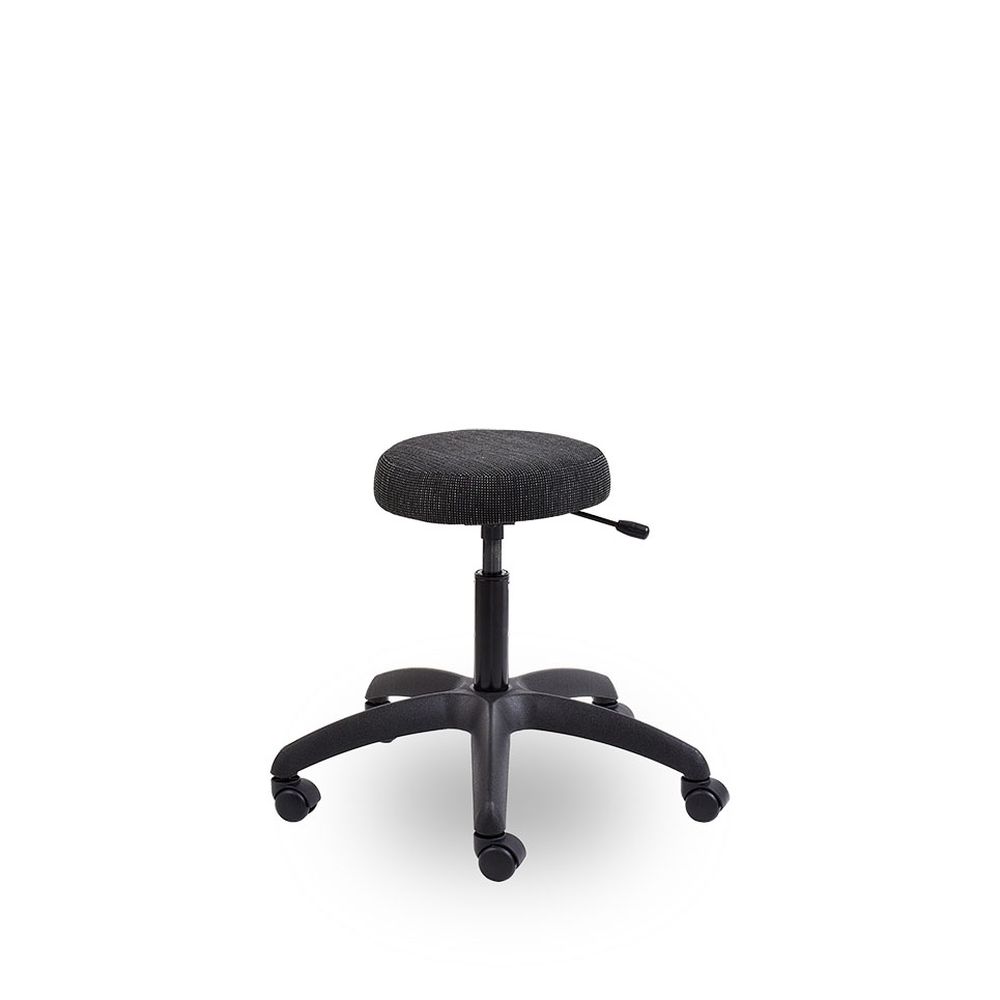

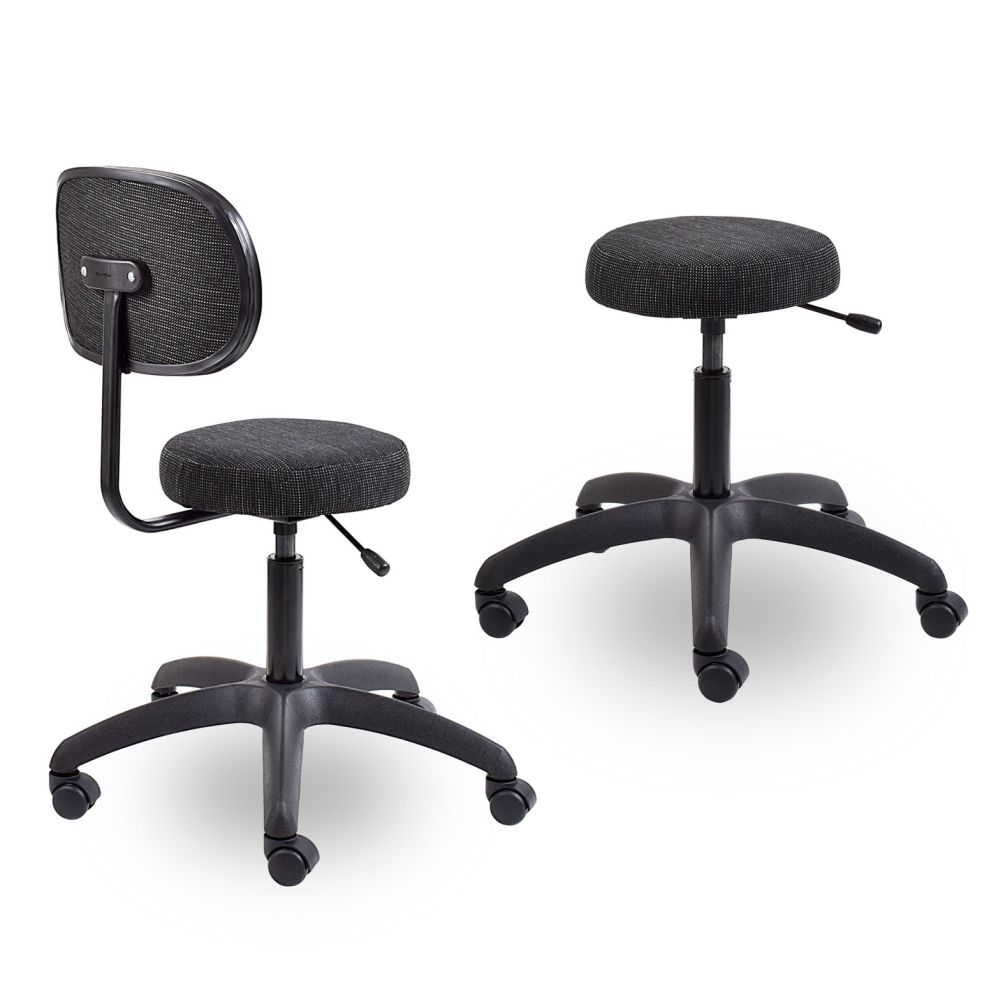

3050 – Dental
The Dental Range offers mobility and comfort for precision-focused environments. With its compact design and smooth movement, it supports seamless workflow in dental and medical settings.
Movements
Dimensions
| 3050 | 3050B | |
| Overall Height | 480mm | 845mm |
| Overall Width | 330mm | 400mm |
| Overall Depth | 330mm | 370mm |
| Total Weight | 5,5kg | 6,5kg |
| Seat Lowest | 490mm | 490mm |
| Seat Highest | 630mm | 630mm |
Specifications
Dental Range 3050 / 3050B
Mechanism
Swivel plate
Hand lever
Height adjustment
Gas Spindle
Typist – Class 3 (3050 & 3050B)
Draughtsman – Class 3 (3059 & 3059B)
Foot ring (3059 & 3059B)
25mm Round tubing – Cold rolled steel with 1.2mm wall thickness
10mm Mild steel struts
Option of chrome, nylon or free-standing foot ring
Base
600mm Nylon base with 50mm hooded castors (3050 & 3050B)
700mm Nylon base with 50mm hooded castors (3059 & 3059B)
Option of Chrome base
Seat
16mm Chipboard – Ø315mm
VC 64 Chip foam, covered with 10mm sheet foam

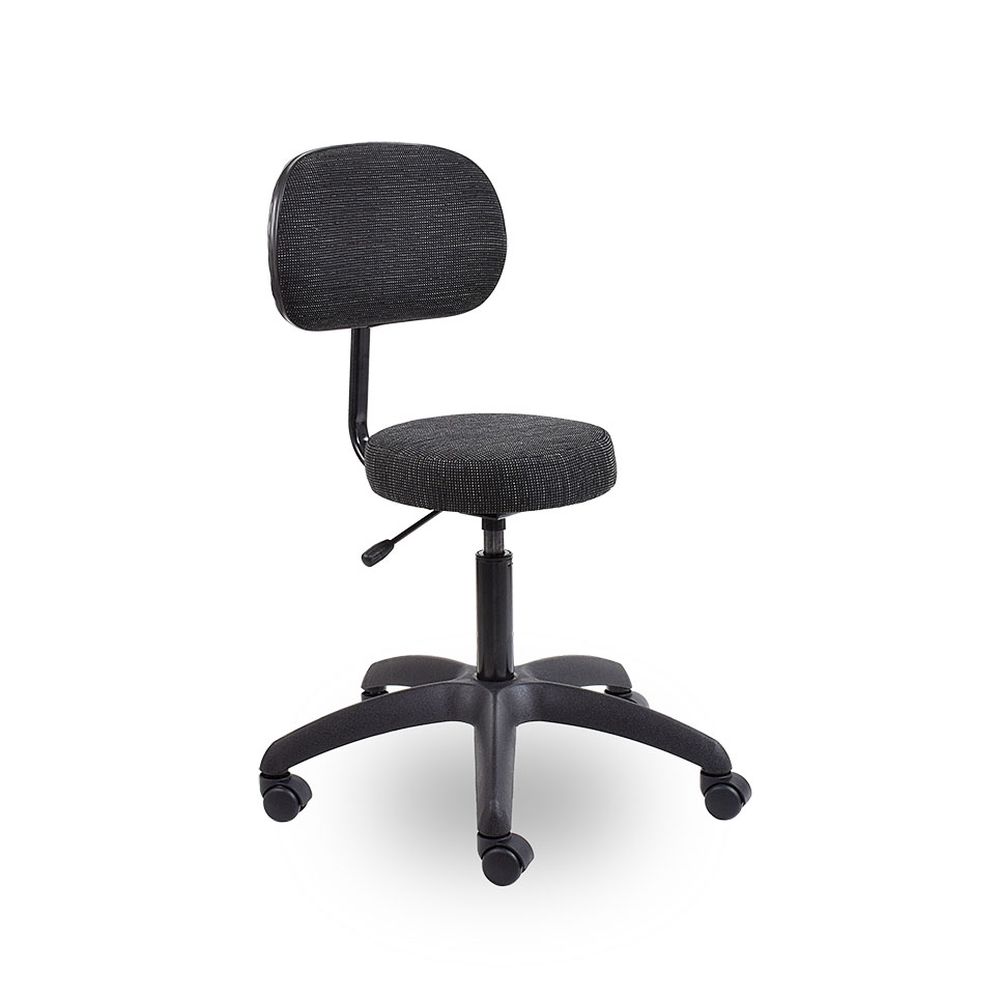

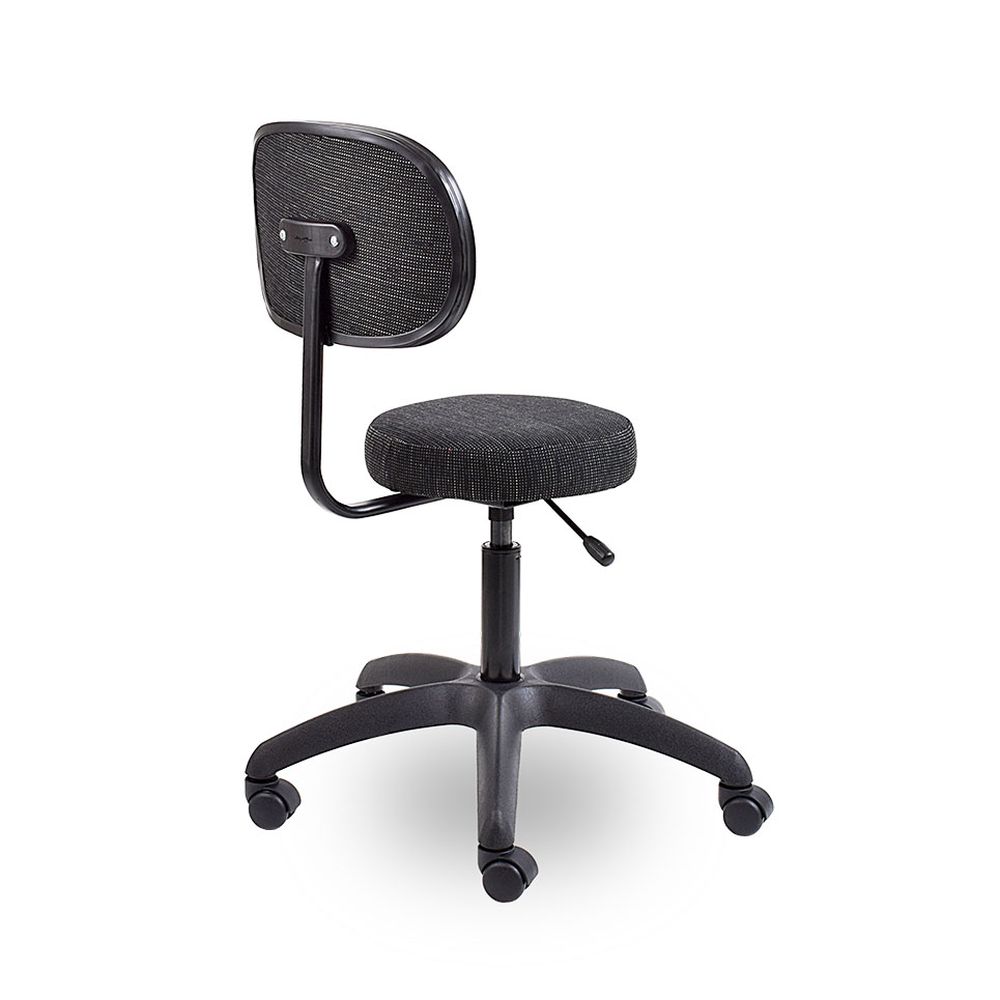

Back (3050B)
Pressed plywood
VP30 medium density foam
Fabric Ranges
Range 1 – Range 11
View Available Fabrics
Mechanism
Base Options
